Figure 19 on page 26 shows how to connect SAS cables on a Storwize V5020
system.
tb500007

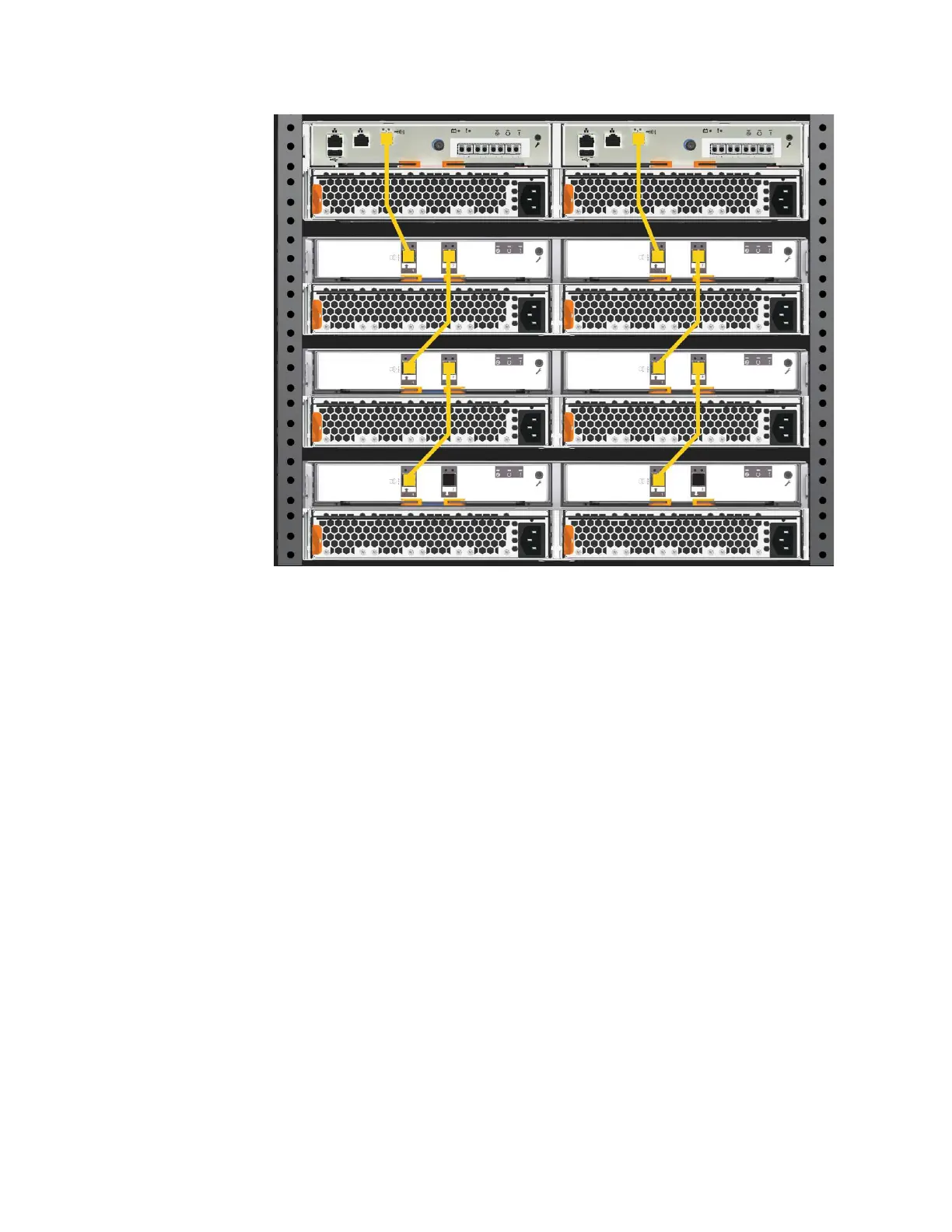

Figure 18. Connecting the SAS cables to a Storwize V5010 system
Chapter 2. Installing the system hardware 25
