IBM Storwize V5030 Quick Installation Guide

Figure 20 on page 27 shows how to connect SAS cables on a Storwize V5030 or
Storwize V5030F system. In this figure, two expansion chains are connected to
the Storwize V5030 system.
tb500008

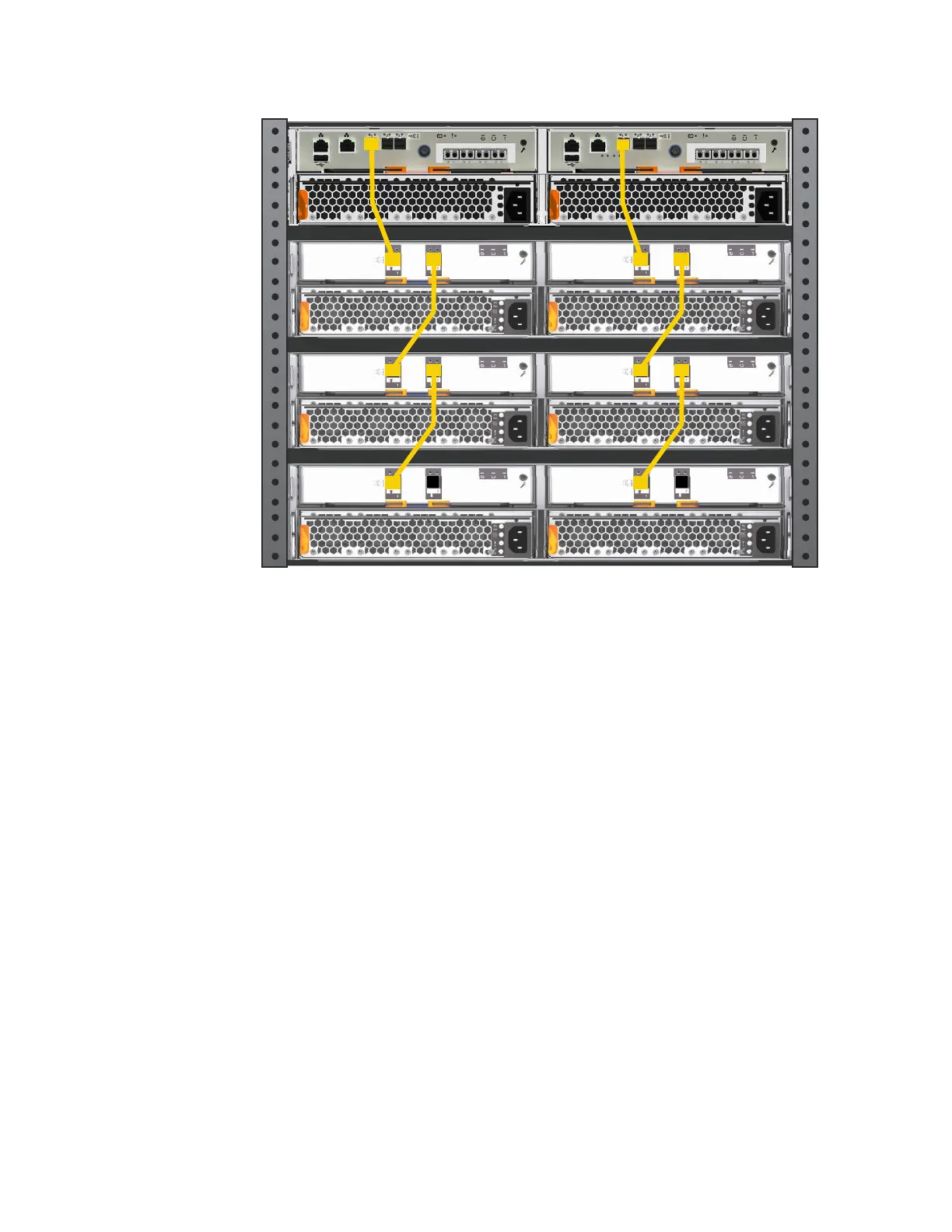

Figure 19. Connecting the SAS cables to a Storwize V5020 system
26 Storwize V5000 Gen2: Quick Installation Guide

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
