As Figure 50 shows, the support rail connectors of each CMA assembly are

installed on the rail hooks at the end of the support rails.

Procedure

1. Remove the loop straps from the upper and lower CMA assemblies. The straps

are used only for shipping.

Installing the upper CMA assembly

Figure 51 on page 68 shows the connectors on the upper CMA assembly.

svc01017

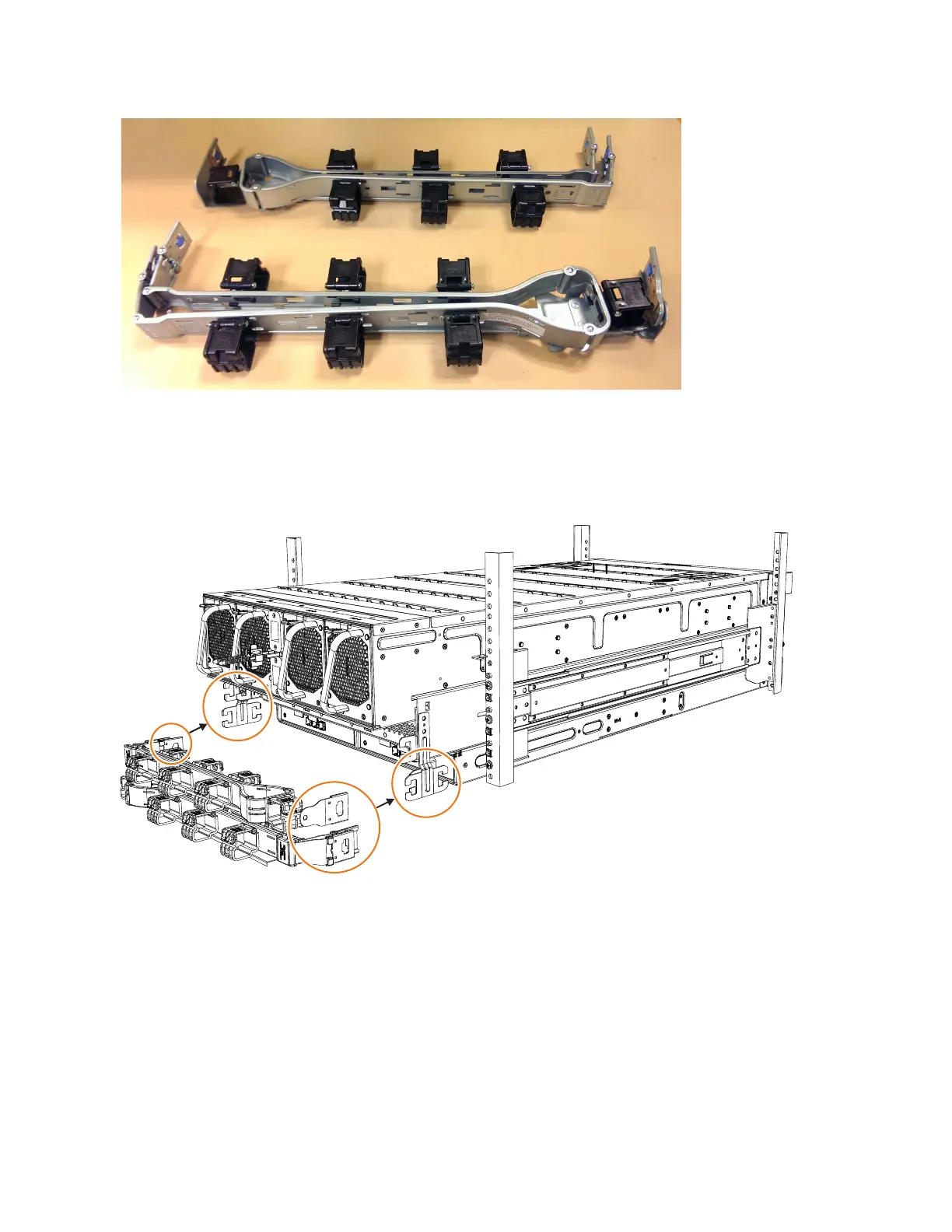

Figure 49. Upper and lower cable-management arms

svc00974

Figure 50. Upper and lower cable-management arms

Chapter 2. Installing the system hardware 67
