4. Attach the support rail connector on the upper CMA assembly (▌5▐) to the

connector base on the right support rail (▌6▐), as shown in Figure 54.

Ensure the cable-management arm connector attaches securely to the hooks on

the rails.

Installing the lower CMA assembly

Note: The procedure for attaching the lower CMA assembly is the same as the

procedure to attach the upper CMA assembly. However, the connector locations are

reversed. For comparison, Figure 55 on page 70 shows the upper and lower CMA

assemblies as they are aligned to the support rails. The support rail connector of

the upper CMA attaches to the right rail. The support rail connector of the lower

CMA ▌11▐ attaches to the left rail.

svc01037

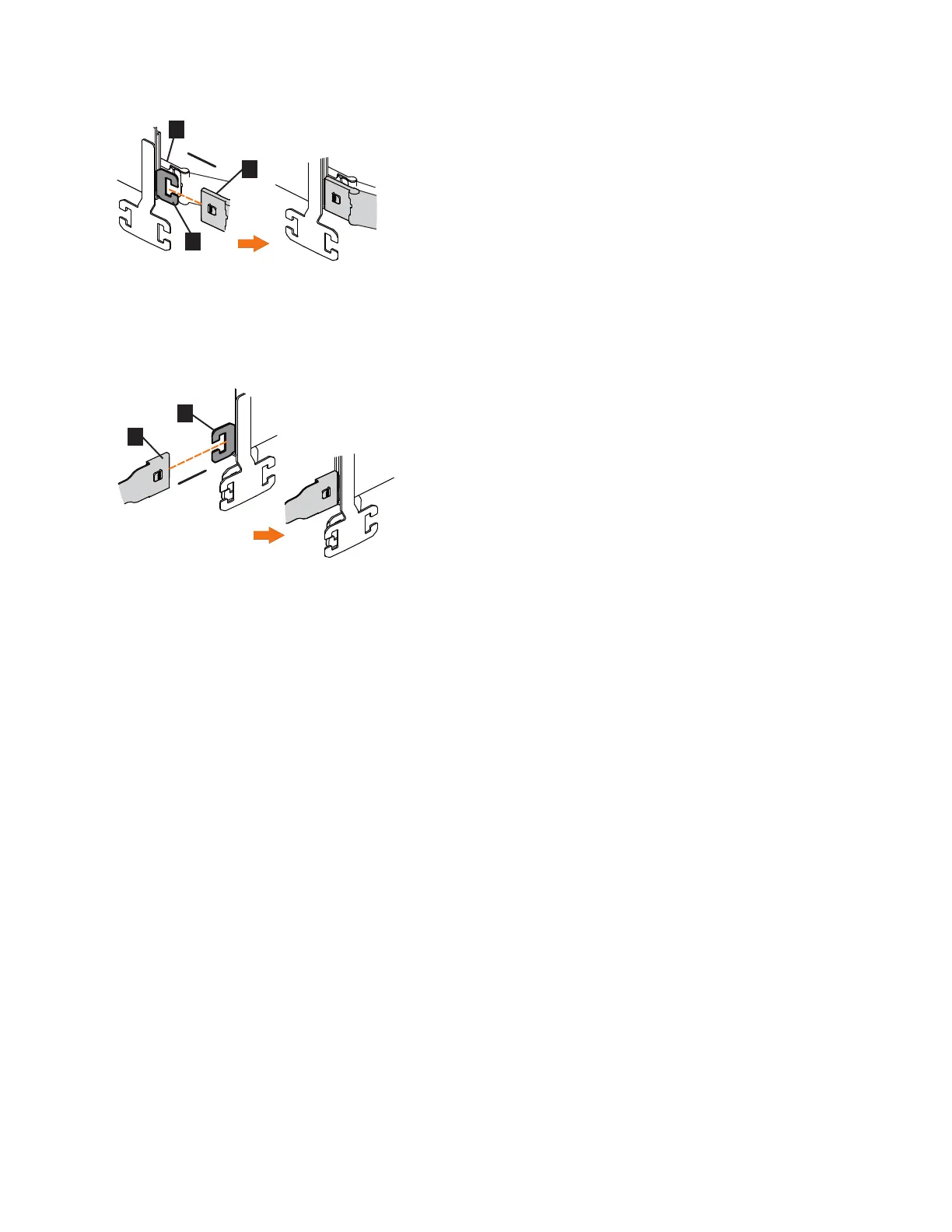

Figure 53. Install the inner connector of the upper CMA to the inner member of the support rail

svc01038

Figure 54. Attach the support rail connector of the upper CMA to the right support rail

Chapter 2. Installing the system hardware 69
