IBM Storwize V7000 User Manual

Enclosure end cap indicators
This topic describes the indicators on the enclosure end cap.

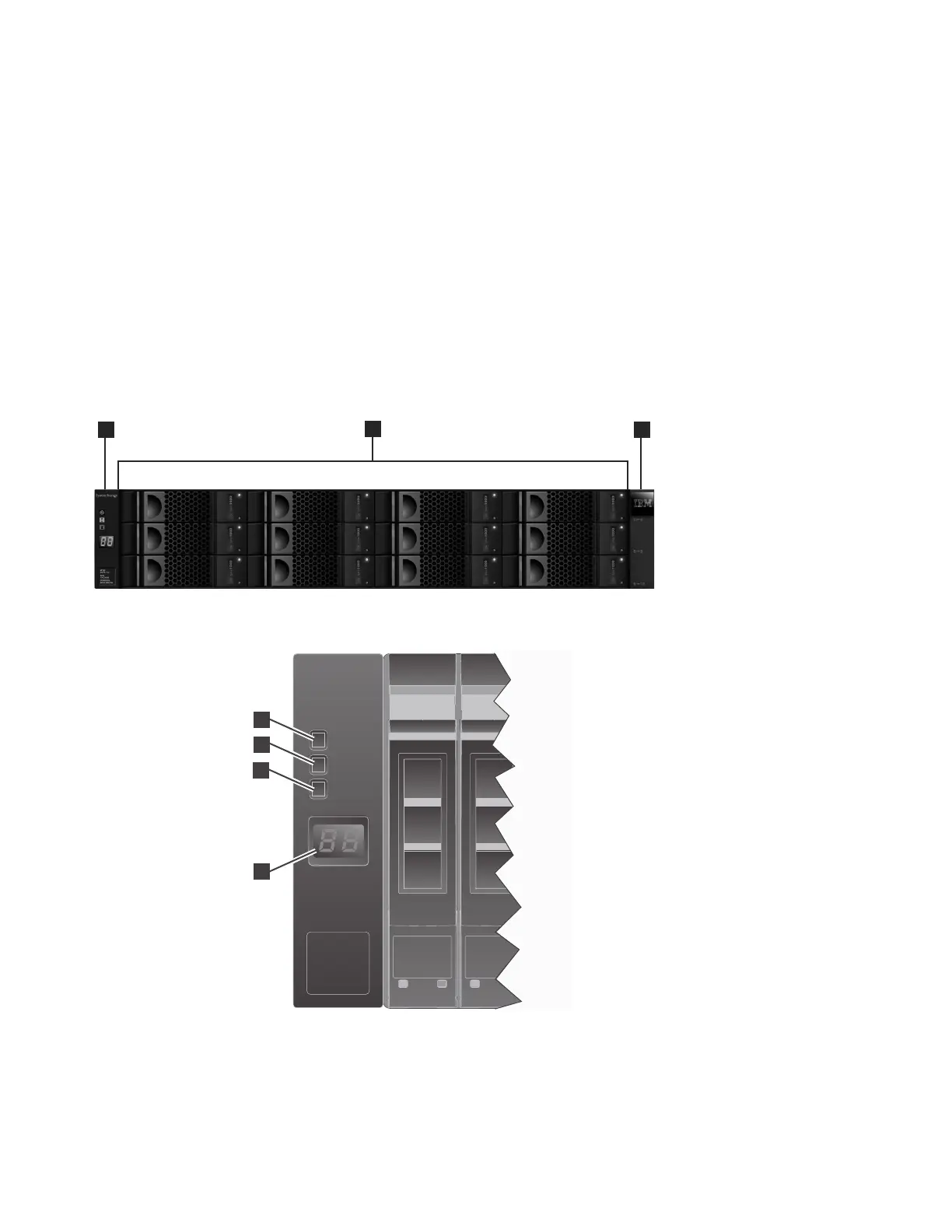

Figure 5 shows where the end caps are located on the front of an enclosure with 12
drives. The end caps are located in the same position for an enclosure with 24
drives.
v 1 Left end cap
v 2 Drives
v 3 Right end cap
Figure 6 shows the indicators on the front of the enclosure end cap.
The left enclosure end caps for both enclosures are identical and contain only
indicators. The left enclosure end cap contains no controls or connectors. The right
enclosure end cap for both enclosures has no controls, indicators, or connectors.
svc00694
1
2
3
Figure 5. 12 drives and two end caps
2
3
1
4
svc00605
Figure 6. Left enclosure end cap
4 Storwize V7000: Troubleshooting, Recovery, and Maintenance Guide

IBM Storwize V7000 Specifications

General

Model	Storwize V7000
Storage Type	Hybrid Flash Array
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Types	SSD, SAS
Host Interface	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI, 12 Gbps SAS
Maximum Cache	32GB
Operating System Support	IBM AIX, Linux, Windows, VMware
Data Reduction Features	Real-time Compression
Management Software	IBM Spectrum Virtualize
