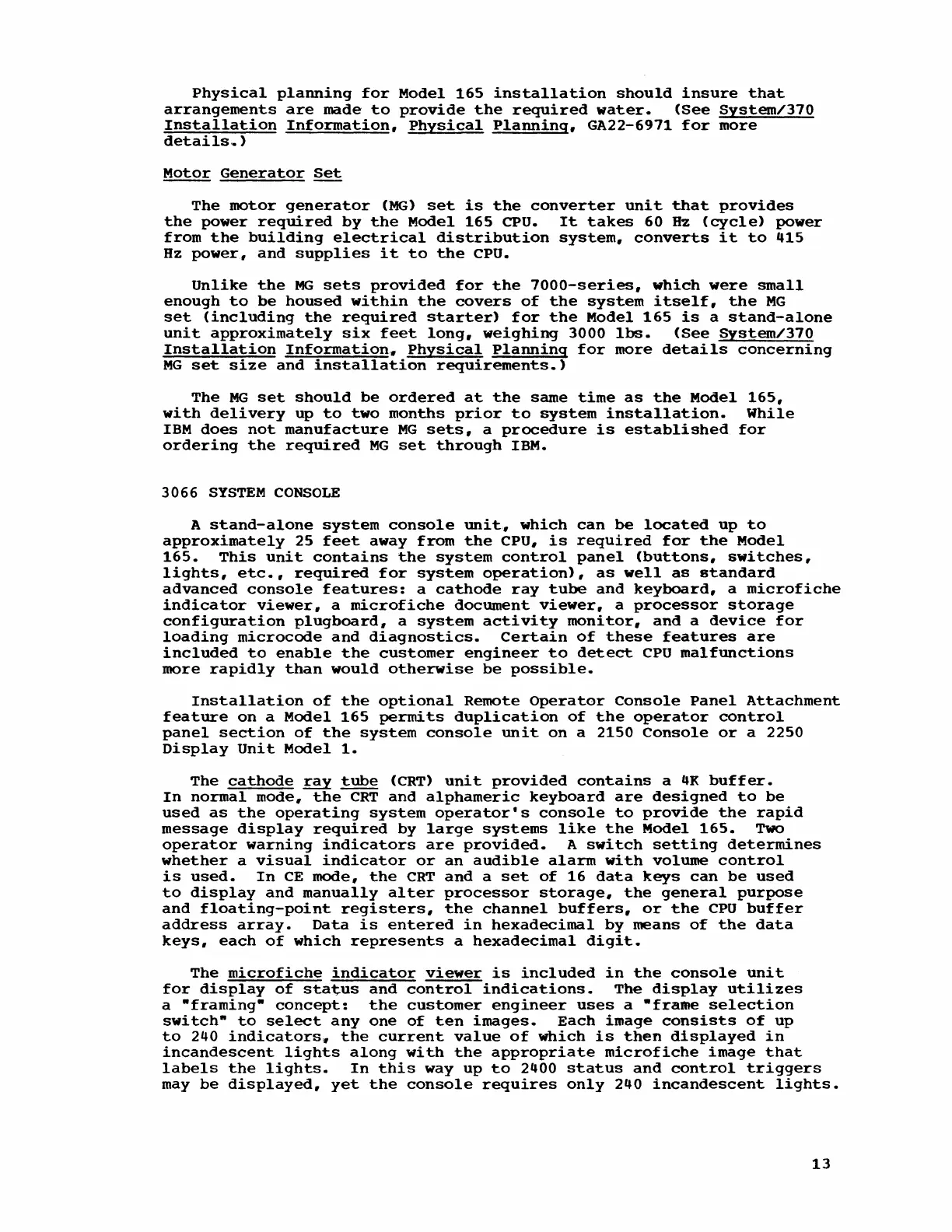

Physical
planning
for
Model
165
installation
should
insure
that
arrangements
are
made
to
provide
the
required
water.
(See
System/370
Installation
Information,
Physical
Planning,
GA22-6971
for
more
details,.
)
Motor
Generator
Set
The
motor
generator
(MG)
set
is
the
converter
unit
that
provides
the
power
required
by
the
Model
165
CPU.
It
takes
60
Hz
(cycle)
power
from
the
building
electrical
distribution
system,
converts
it
to
415
Hz
power,
and
supplies
it
to
the
cPU.
Unlike
the
MG
sets
provided
for
the
7000-series,
which
were
small
enough
to
be
housed
within
the
covers
of
the
system
itself,
the
MG
set
(including
the
required
starter)
for
the
Model
165
is
a
stand-alone
unit
approximately
six
feet
long,
weighing
3000
lbs.
(See
system/370
Installation
Information,.
Physical
Planning
for
more
details
concerning
MG
set
size
and
installation
requirements.)
The
MG
set
should
be
ordered
at
the
same
time
as
the
Model
165,
with
delivery
up
to
two
months
prior
to
system
installation.
While
IBM
does
not
manufacture
MG
sets.
a
procedure
is
established
for
ordering
the
required
MG
set
through
IBM.
3066
SYSTEM
CONSOLE
A
stand-alone
system
console
unit,.
which
can
be
located
up
to
approximately
25
feet
away
from
the
CPU.
is
required
for
the
Model
165.
This
unit
contains
the
system
control
panel
(buttons,
switches,
lights,
etc.,
required
for
system
operation),
as
well
as
standard
advanced
console
features:
a
cathode
ray
tube
and
keyboard,
a
microfiche
indicator
viewer,
a
microfiche
document
viewer,
a
processor
storage
configuration
plugboard.
a
system
activity
monitor,
and
a
device
for
loading
microcode
and
diagnostics.
Certain
of
these
features
are
included
to
enable
the
customer
engineer
to
detect
CPU
malfunctions
more
rapidly
than
would
otherwise
be
possible.
Installation
of
the
optional
Remote
Operator
Console
Panel
Attachment
feature
on
a
Model
165
permits
duplication
of
the
operator
control
panel
section
of
the
system
console
unit
on
a
2150
Console
or
a
2250
Display
Unit
Model
1.
The
cathode
ray
tube
(CRT)
unit
provided
contains
a
4K
buffer.
In
normal
mode,
the
CRT
and
alphameric
keyboard
are
designed
to
be
used
as
the
operating
system
operator's
console
to
provide
the
rapid
message
display
required
by
large
systems
like
the
Model
165.
Two
operator
warning
indicators
are
provided.
A
switch
setting
determines
whether
a
visual
indicator
or
an
audible
alarm
with
volume
control
is
used.
In
CE
mode.
the
CRT
and
a
set
of
16
data
keys
can
be
used
to
display
and
manually
alter
processor
storage,
the
general
purpose
and
floating-point
registers,
the
channel
buffers,
or
the
CPU
buffer
address
array.
Data
is
entered
in
hexadecimal
by
means
of
the
data
keys,
each
of
which
represents
a
hexadecimal
digit.
The
microfiche
indicator
viewer
is
included
in
the
console
unit
for
display
of
status
and
control
indications.
The
display
utilizes
a
-framing-
concept:
the
customer
engineer
uses
a
-frame
selection
switch-
to
select
anyone
of
ten
images.
Each
consists
of
up
to
240
indicators"
the
current
value
of
which
is
then
displayed
in
incandescent
lights
along
with
the
appropriate
microfiche
that
labels
the
lights.
In
this
way
up
to
2400
status
and
control
triggers
may
be
displayed,
yet
the
console
requires
only
240
incandescent
lights.
13
