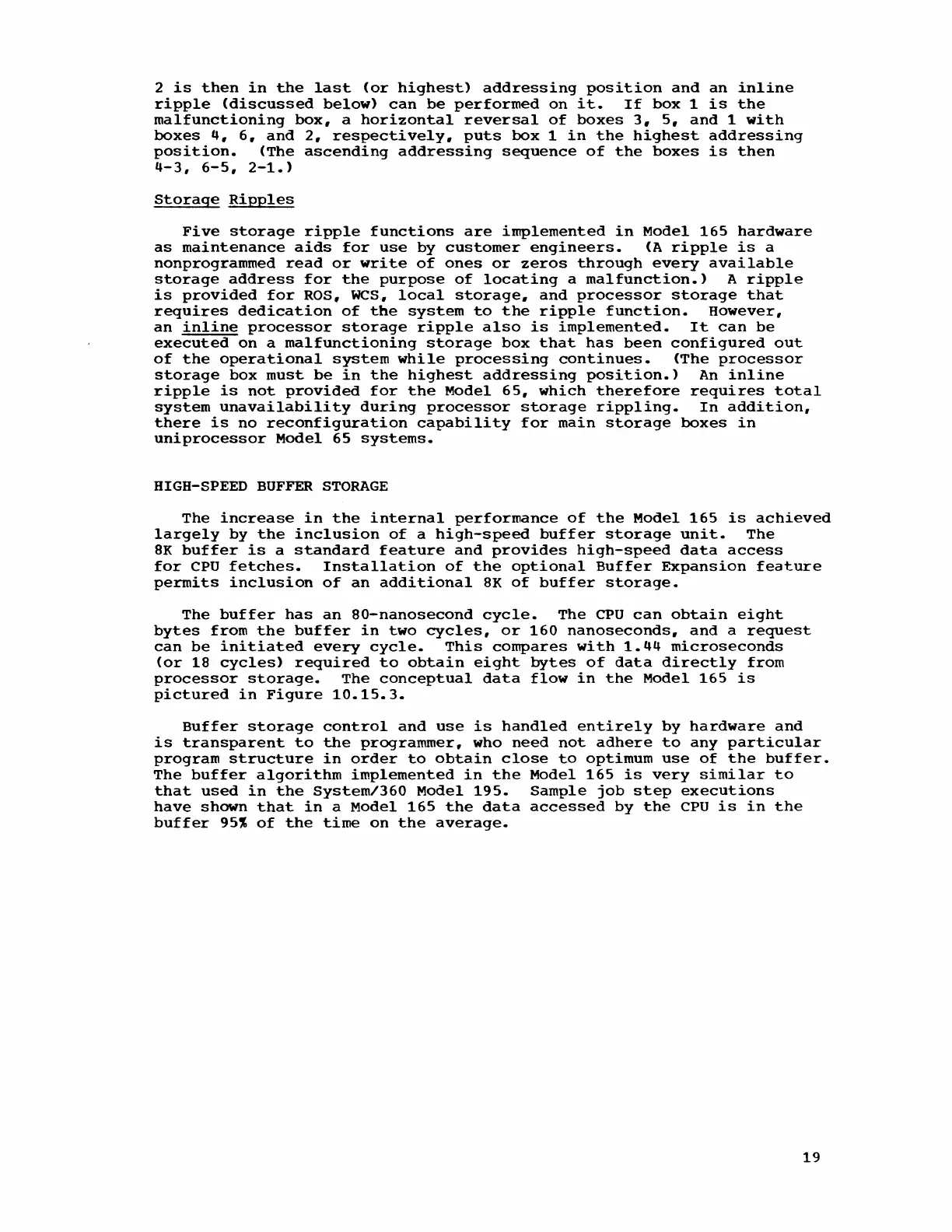

2
is
then
in
the
last
(or
highest)
addressing
position
and
an
inline
ripple
(discussed
below)
can
be
performed
on
it.
If
box
1
is
the
malfunctioning
box,
a
horizontal
reversal
of
boxes
3,
5,
and
1
with
boxes
4,
6,
and
2,
respectively,
puts
box
1
in
the
highest
addressing
position.
(The
ascending
addressing
sequence
of
the
boxes
is
then
4-3,
6-5,
2-1.)
Storage
Ripples
Five
storage
ripple
functions
are
implemented
in
Model
165
hardware
as
maintenance
aids
for
use
by
customer
engineers.
(A
ripple
is
a
nonprogrammed
read
or
write
of
ones
or
zeros
through
every
available
storage
address
for
the
purpose
of
locating
a
malfunction.)
A
ripple
is
provided
for
ROS, wes,
local
storage,
and
processor
storage
that
requires
dedication
of
the
system
to
the
ripple
function.
However,
an
inline
processor
storage
ripple
also
is
implemented.
It
can
be
executed
on
a
malfunctioning
storage
box
that
has
been
configured
out
of
the
operational
system
while
processing
continues.
(The
processor
storage
box
must
be
in
the
highest
addressing
position.)
An
inline
ripple
is
not
provided
for
the
Model
65,
which
therefore
requires
total
system
unavailability
during
processor
storage
rippling.
In
addition,
there
is
no
reconfiguration
capability
for
main
storage
boxes
in
uniprocessor
Model
65
systems.
HIGH-SPEED BUFFER
STORAGE
The
increase
in
the
internal
performance
of
the
Model
165
is
achieved
largely
by
the
inclusion
of
a
high-speed
buffer
storage
unit.
The
8K
buffer
is
a
standard
feature
and
provides
high-speed
data
access
for
CPU
fetches.
Installation
of
the
optional
Buffer
Expansion
feature
permits
inclusion
of
an
additional
8K
of
buffer
storage.
The
buffer
has
an
80-nanosecond
cycle.
The
CPU
can
obtain
eight
bytes
from
the
buffer
in
two
cycles,
or
160
nanoseconds,
and
a
request
can
be
initiated
every
cycle.
This
compares
with
1.44
microseconds
(or
18
cycles)
required
to
obtain
eight
bytes
of
data
directly
from
processor
storage.
The
conceptual
data
flow
in
the
Model
165
is
pictured
in
Figure
10.15.3.
Buffer
storage
control
and
use
is
handled
entirely
by
hardware
and
is
transparent
to
the
programmer,
who
need
not
adhere
to
any
particular
program
structure
in
order
to
obtain
close
to
optimum
use
of
the
buffer.
The
buffer
algorithm
implemented
in
the
Model
165
is
very
similar
to
that
used
in
the
System/360
Model
195.
Sample
job
step
executions
have
shown
that
in
a
Model
165
the
data
accessed
by
the
CPU
is
in
the
buffer
95~
of
the
time
on
the
average.
19
