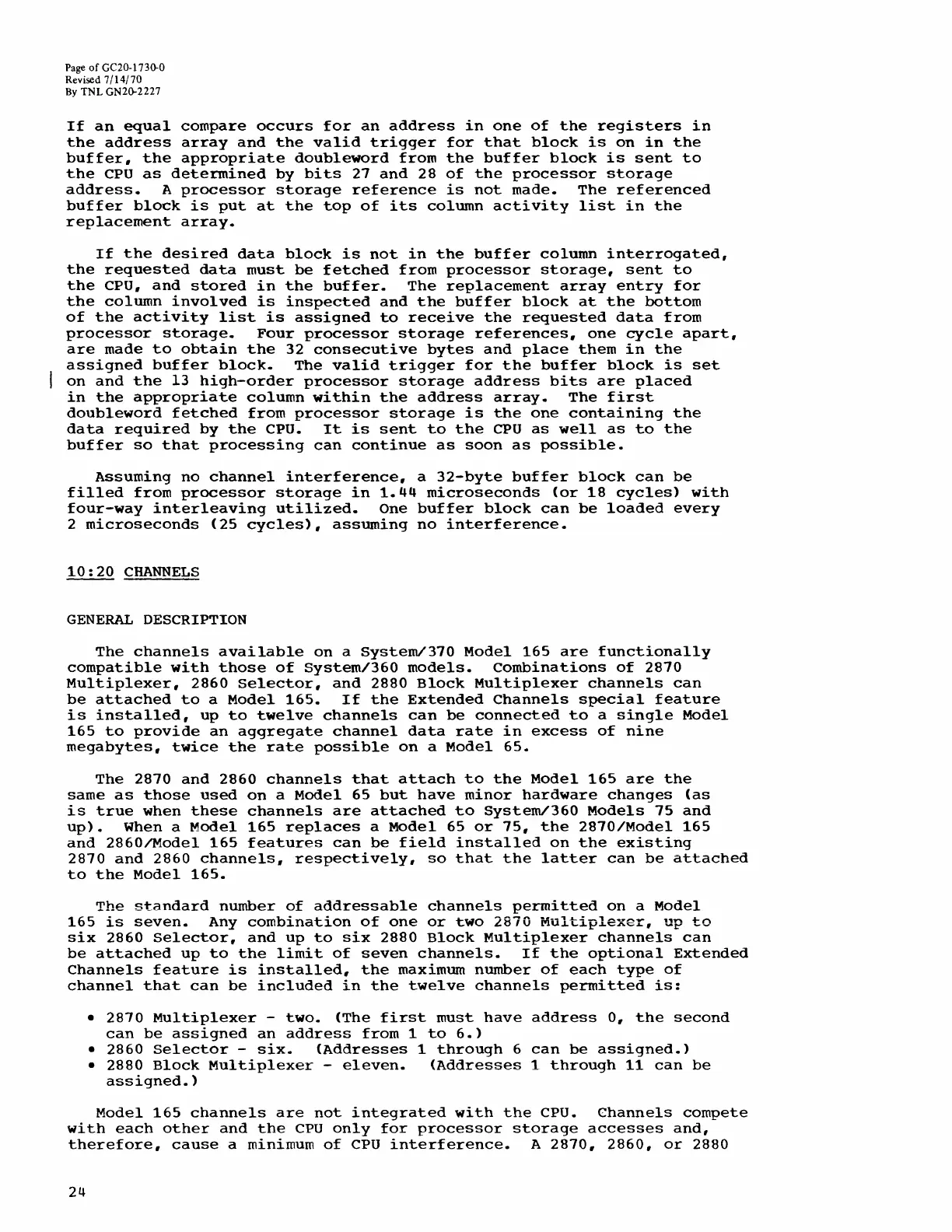

Page #31 background imageLoading...
Page #31 background image
Page
of
GC20-1730-0
Revised
7/14/70
By
TNL
GN20-2227
If
an
equal
compare
occurs
for
an
address
in
one
of
the
registers
in
the
address
array
and
the
valid
trigger
for
that
block
is
on
in
the
buffer,
the
appropriate
doubleword
from
the
buffer
block
is
sent
to
the
CPU
as
determined
by
bits
27
and
28
of
the
processor
storage
address.
A
processor
storage
reference
is
not
made.
The
referenced
buffer
block
is
put
at
the
top
of
its
column
activity
list
in
the
replacement
array.
If
the
desired
data
block
is
not
in
the
buffer
column
interrogated,
the
requested
data
must
be
fetched
from
processor
storage,
sent
to
the
CPU,
and
stored
in
the
buffer.
The
replacement
array
entry
for
the
column
involved
is
inspected
and
the
buffer
block
at
the
bottom
of
the
activity
list
is
assigned
to
receive
the
requested
data
from
processor
storage.
Four
processor
storage
references,
one
cycle
apart,
are
made
to
obtain
the
32
consecutive
bytes
and
place
them
in
the
assigned
buffer
block.
The
valid
trigger
for
the
buffer
block
is
set
on
and
the
13
high-order
processor
storage
address
bits
are
placed
in
the
appropriate
column
within
the
address
array.
The
first
doubleword
fetched
from
processor
storage
is
the
one
containing
the
data
required
by
the
CPU.
It
is
sent
to
the
CPU
as
well
as
to
the
buffer
so
that
processing
can
continue
as
soon
as
possible.
Assuming
no
channel
interference,
a
32-byte
buffer
block
can
be
filled
from
processor
storage
in
1.44
microseconds
(or
18
cycles)
with
four-way
interleaving
utilized.
One
buffer
block
can
be
loaded
every
2
microseconds
(25
cycles),
assuming
no
interference.
10:
20
CHANNELS
GENERAL
DESCRIPTION
The
channels
available
on
a
System/370
Model
165
are
functionally
compatible
with
those
of
System/360
models.
Combinations
of
2870
Multiplexer,
2860
Selector,
and
2880
Block
Multiplexer
channels
can
be
attached
to
a
Model
165.
If
the
Extended
Channels
special
feature
is
installed,
up
to
twelve
channels
can
be
connected
to
a
single
Model
165
to
provide
an
aggregate
channel
data
rate
in
excess
of
nine
megabytes,
twice
the
rate
possible
on
a
Model
65.
The
2870
and
2860
channels
that
attach
to
the
Model
165
are
the
same
as
those
used
on
a
Model
65
but
have
minor
hardware
changes
(as
is
true
when
these
channels
are
attached
to
System/360
Models
75
and
up).
When a
Model
165
replaces
a
Model
65
or
75,
the
2870/Model
165
and
2860/Model
165
features
can
be
field
installed
on
the
existing
2870
and
2860
channels,
respectively,
so
that
the
latter
can
be
attached
to
the
Model
165.
The
standard
number
of
addressable
channels
permitted
on
a
Model
165
is
seven.
Any
combination
of
one
or
two
2870
Multiplexer,
up
to
six
2860
Selector,
and
up
to
six
2880
Block
Multiplexer
channels
can
be
attached
up
to
the
limit
of
seven
channels.
If
the
optional
Extended
Channels
feature
is
installed,
the
maximum
number
of
each
type
of
channel
that
can
be
included
in
the
twelve
channels
permitted
is:
2870
Multiplexer
-
two.
(The
first
must
have
address
0,
the
second
can
be
assigned
an
address
from
1
to
6.>
2860
Selector
-
six.
(Addresses
1
through
6
can
be
assigned.)
2880
Block
Multiplexer
-
eleven.
(Addresses
1
through
11
can
be
assigned.
)
Model
165
channels
are
not
integrated
with
the
CPU.
Channels
compete
with
each
other
and
the
CPU
only
for
processor
storage
accesses
and,
therefore,
cause
a
minimum
of
CPU
interference.
A
2870, 2860,
or
2880
24
