4. Secure the side cover in place with the two chassis screws on the rear of the
side cover.
5. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
For the 5U server model with hot-swap power supplies (Model name: 2582-F4x),
complete the following steps in order to remove the side cover. For 4U server
models with non-hot-swap power supplies, please see the above sub-section.
1. Make sure that all cables, adapters, and other components are installed and
seated correctly and that you have not left loose tools or parts inside the server.
Also, make sure that all internal cables are correctly routed.
Important: The cover lock must be in the unlocked (opened) position before
you install the side cover.
2. If you removed the upper and lower bezels, reinstall them before you replace
the side cover (see “Installing the upper bezel” on page 175 and “Installing the
lower bezel” on page 173).

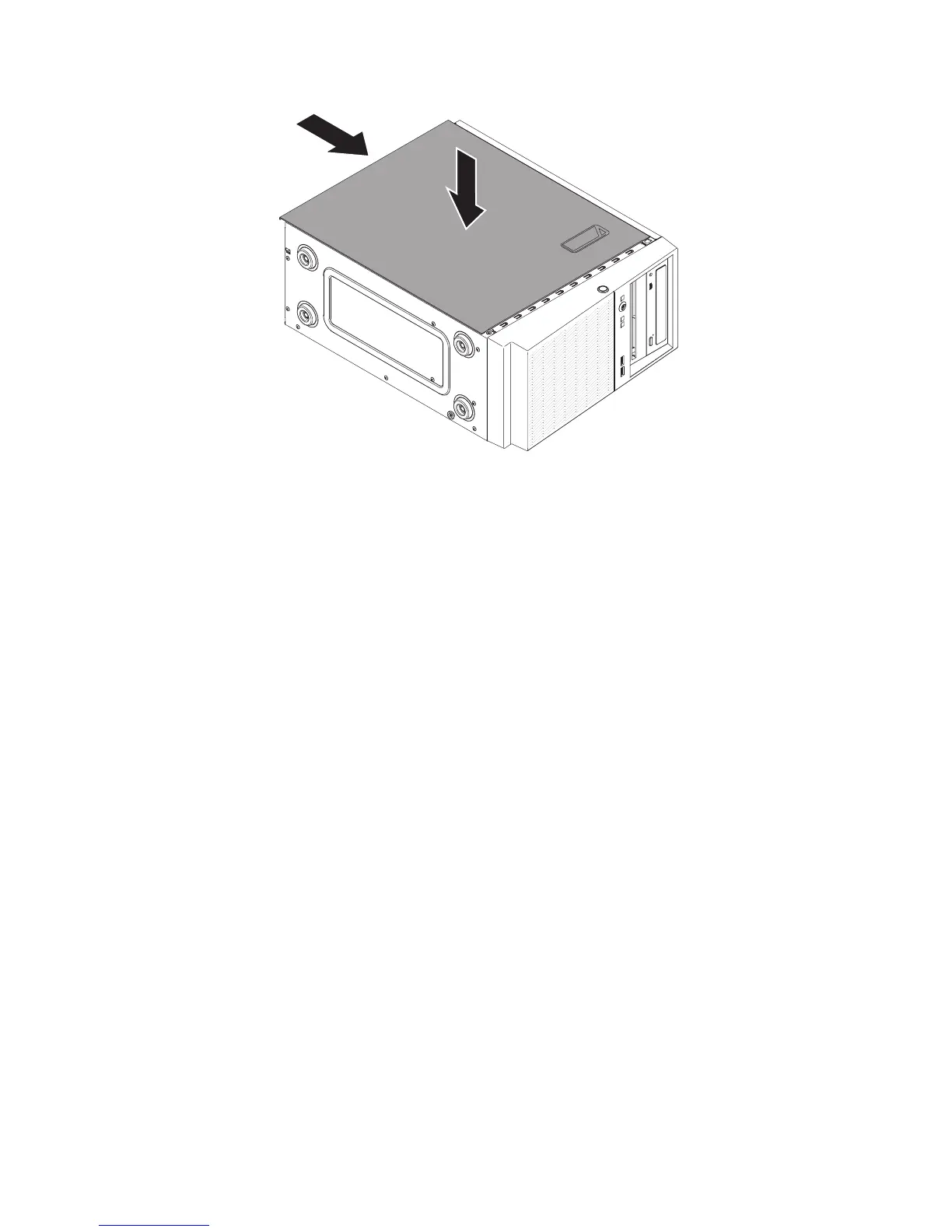

3. Position the lip at the bottom edge of the side cover on the ledge at the bottom
of the chassis; then, rotate the cover up to the chassis. Press down on the
cover release latch and push the cover into the chassis until it latches securely
into place.
168 IBM System x3100 M4 Type 2582: Problem Determination and Service Guide
