11. If you are not replacing the adapter, install an expansion-slot cover in the
expansion-slot opening.
12. If you are instructed to return the adapter, follow all packaging instructions, and
use any packaging materials for shipping that are supplied to you.
To remove an ServeRAID adapter on the 5U server model with hot-swap power
supplies (Model name: 2582-F4x), complete the following steps. For 4U server
models with non-hot-swap power supplies, please see the above sub-section.
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 163.
2. Turn off the server and all attached devices; then, disconnect all power cords
and external cables.
3. Unlock and remove the side cover (see “Removing the side cover” on page
166).
4. Carefully turn the server on its side so that it is lying flat, with the system board
facing up.
Attention: Do not allow the server to fall over.
5. Disconnect any cables from the adapter or any cables that impede access to
the adapter.
6. Rotate the rear adapter-retention bracket to the open (unlocked) position.

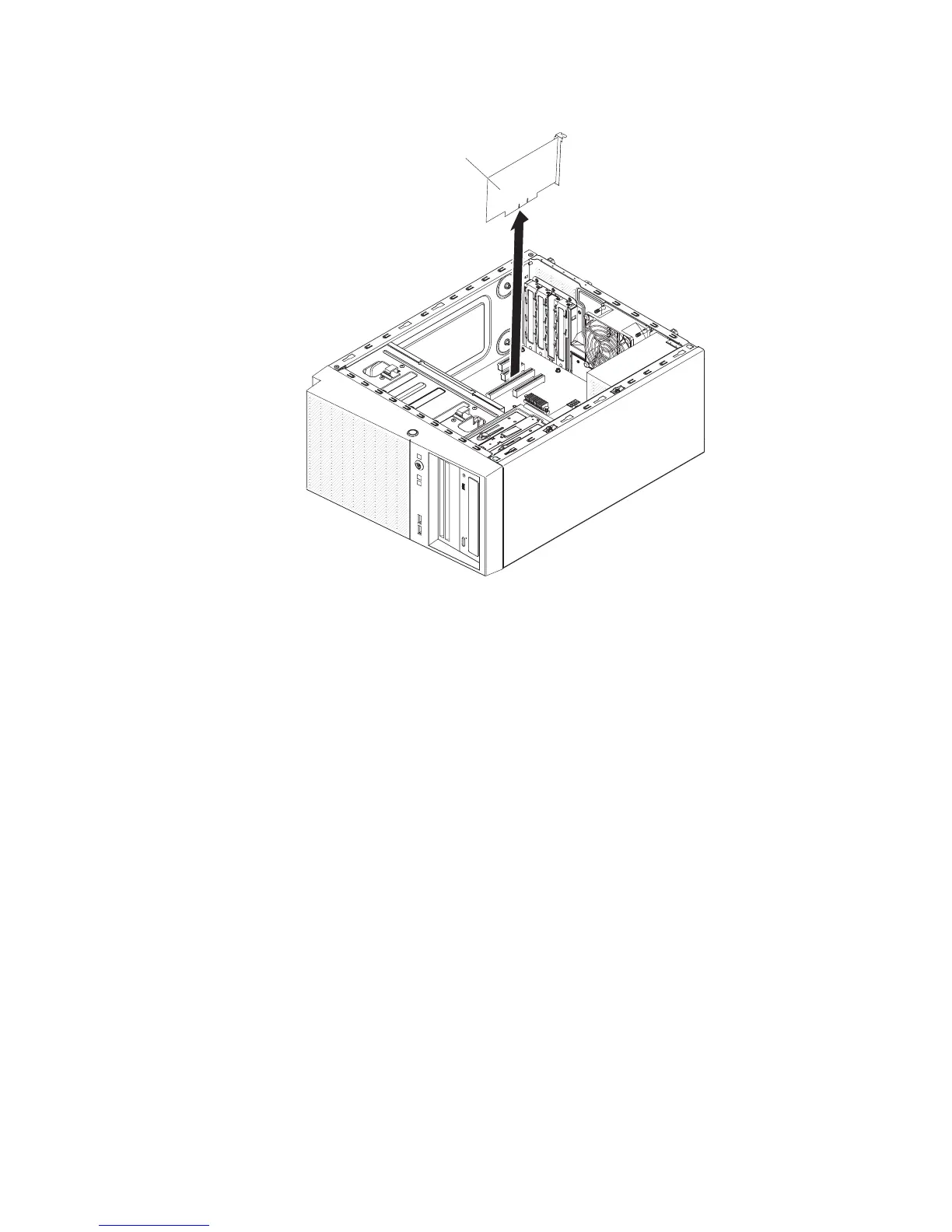

7. Carefully grasp the adapter by its top edge or upper corners, and pull the
adapter from the server.
Attention: Expansion-slot covers must be installed in all empty slots. This
maintains the electronic emissions standards of the computer and ensures
proper ventilation of computer components.
Chapter 5. Removing and replacing server components 177
