5. Connect the hard disk drive power cables to the backplate (connector P3 to
bay 3, connector P4 to bay 4, connector P5 to bay 5, and connector P6 to bay
6,).
6. Connect the hard disk drive signal cables to the SATA connectors on the
backplate (connector 0 to bay 3, connector 1 to bay 4, connector 2 to bay 5,
and connector 3 to bay 6,)
7. Connect the hard disk drive signal cables to the SATA connectors on the
system board or the connector on the adapter (if one is installed).
Note: In the LSI RAID utility, SATA 1 represents hard disk drive in drive bay
two and SATA 2 represents hard disk drive in drive bay one (see “Installing a
simple-swap hard disk drive” on page 196).

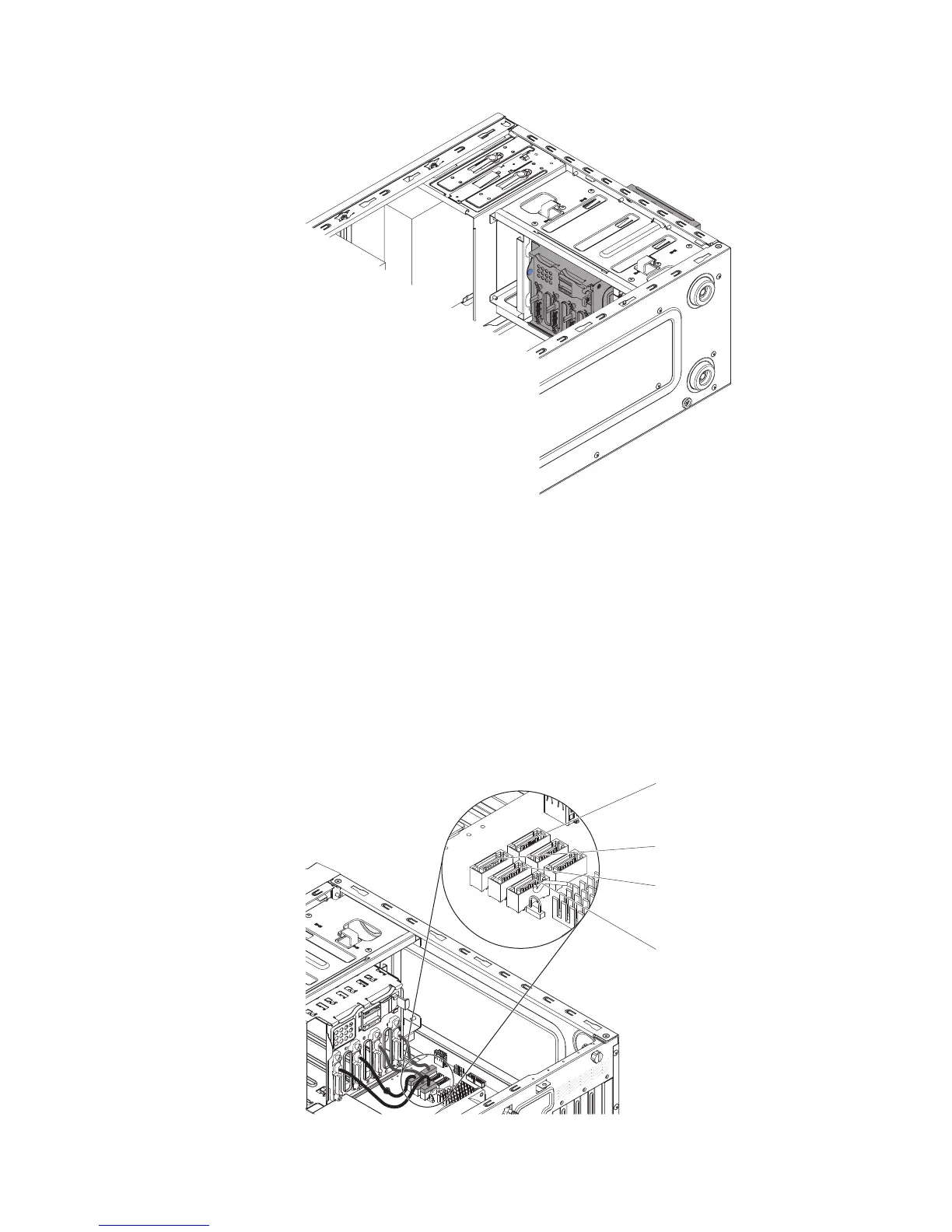

The following illustrations shows the SATA connectors on the system board:
HDD 0 - SATA 0
HDD 1 - SATA 2
HDD 2 - SATA 1
HDD 3 - SATA 3
8. Secure the cables with the retention clips.
Chapter 5. Removing and replacing server components 221
