To remove the hot-swap power-supply cage on the 5U server model with hot-swap
power supplies (Model name: 2582-F4x), complete the following steps.
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 163.
2. Turn off the server and all attached devices; then, disconnect all power cords
and external cables.
3. Unlock and remove the side cover (see “Removing the side cover” on page
166).
4. Remove the hot-swap power supplies (see “Removing the hot-swap power
supply” on page 243).
5. Carefully turn the server on its side so that it is lying flat, with the system board
facing up.
Attention: Do not allow the server to fall over.
6. Disconnect the cables from the power-supply cage to the system board and all
internal components.

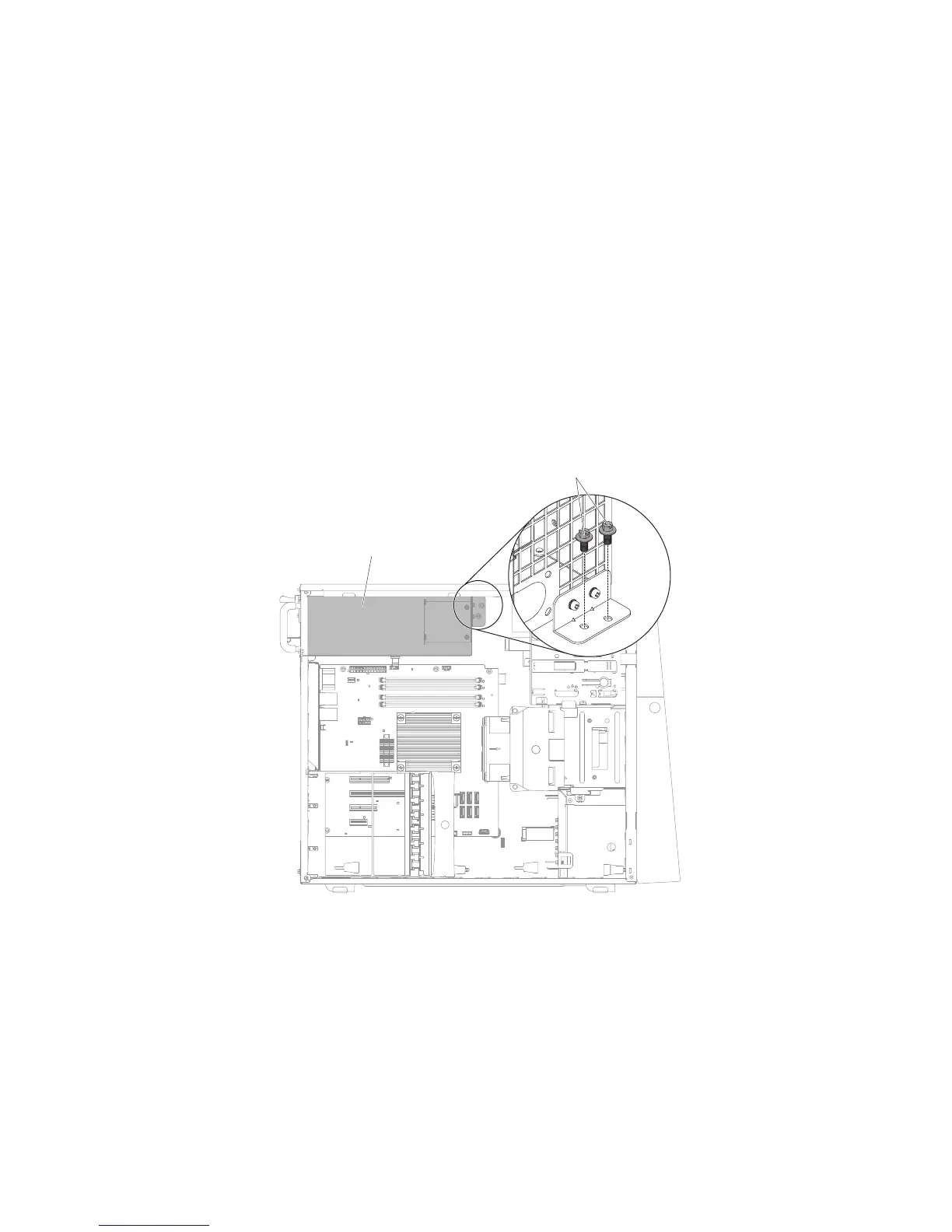

7. Remove the two screws that secure the power-supply cage to the chassis; the
two screws are located in the front of the hot-swap power supply cage.
Hot-swap
power-supply cage
Screws
8. Remove the other four screws that also secure the power-supply cage to the
chassis; then, slide the cage toward the front of the server to disengage the
retaining clips from the top of the chassis and lift the cage out of the chassis.
248 IBM System x3100 M4 Type 2582: Problem Determination and Service Guide
