Flashing rapidly (4 times per second): The server is turned off and is
not ready to be turned on. The power-control button is disabled. This will
last approximately 1 to 3 minutes.
Flashing slowly (once per second): The server is turned off and is
ready to be turned on. You can press the power-control button to turn on
the server.
Lit: The server is turned on.
Hard disk drive activity LED
When this LED is flashing rapidly, it indicates that a hard disk drive is in
use.
System-error LED
When this amber LED is lit, it indicates that a system error has occurred.
An LED on the system board might also be lit to help isolate the error.
Detailed troubleshooting information is in the Problem Determination and
Service Guide on the IBM System x Documentation CD.
USB connectors
Connect USB devices to these connectors.
DVD-eject button
Press this button to release a CD or DVD from the DVD drive.
DVD drive activity LED
When this LED is lit, it indicates that the DVD drive is in use.

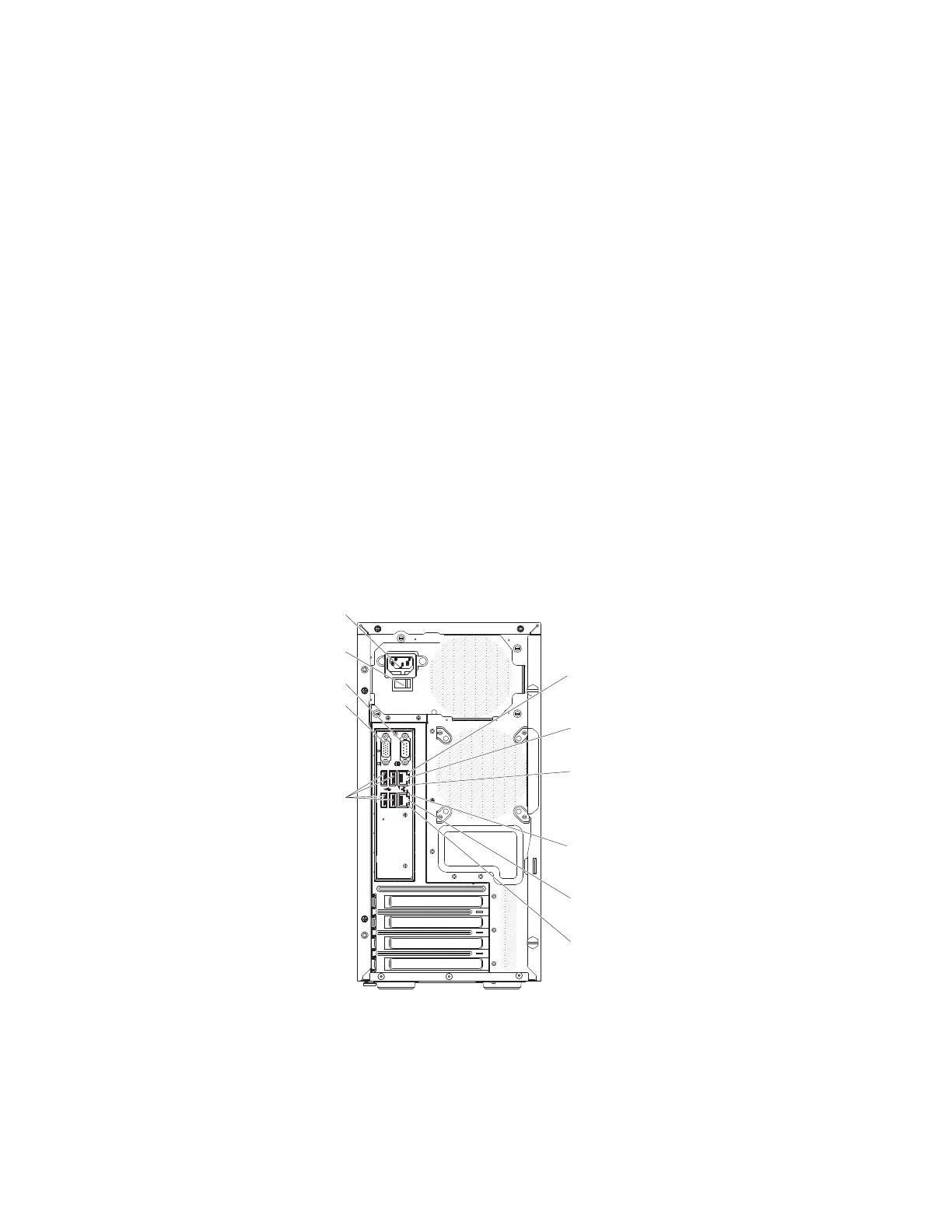

Rear view
Power connector
Serial 1 (Com1)
USB connectors
Ethernet
connector 1
Video
Ethernet transmit/
receive activity
LED
Ethernet link status
LED
Power switch
Ethernet
connector 2
Ethernet transmit/
receive activity
LED
Ethernet link status
LED
Power connector
Connect the power cord to this connector.
Serial connector
Connect a 9-pin serial device to this connector. The serial port is shared
with the integrated management module II (IMM2). The IMM2 can take
control of the shared serial port to redirect serial traffic, using Serial over
LAN (SOL).
14 System x3100 M4 Type 2582: Installation and User's Guide
