System-board external connectors
The following illustration shows the external connectors on the system board.
Video
Serial (COM1)
NMI button
Ethernet connector 2/
USB connectors 3&4
Ethernet connector 1/
USB connectors 1&2
System-board LEDs

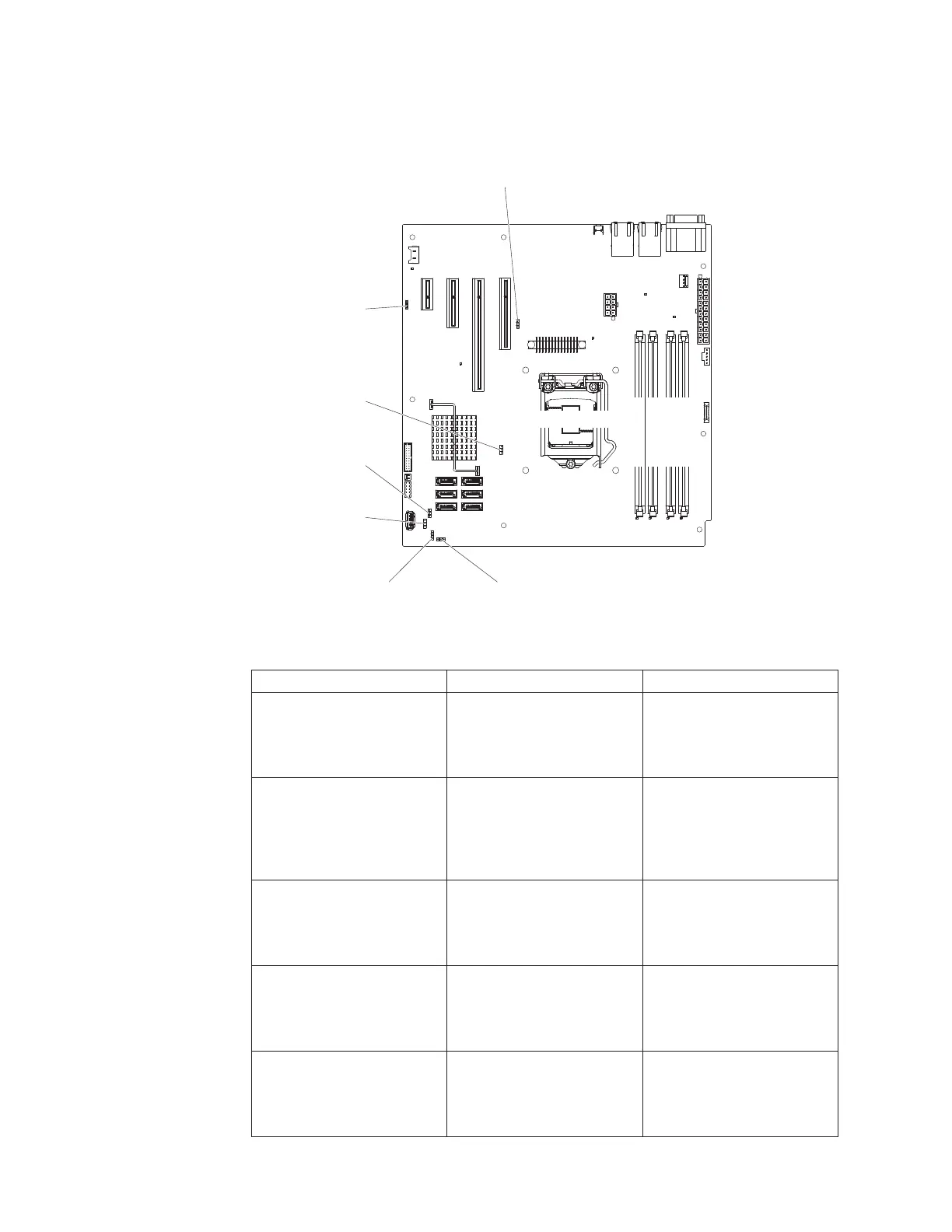

The following illustration shows the LEDs on the system board.
IMM Hearbeat
LED
RTMM
Hearbeat LED
DIMM 1 - 4
error LEDs
Microprocessor
error LED
System board
error LED
Standby Power
LED
Note: When you disconnect the power source from the server, you lose the ability
to view the LEDs because the LEDs are not lit when the power source is removed.
