IBM System x3100 M4 User Manual

Adapter

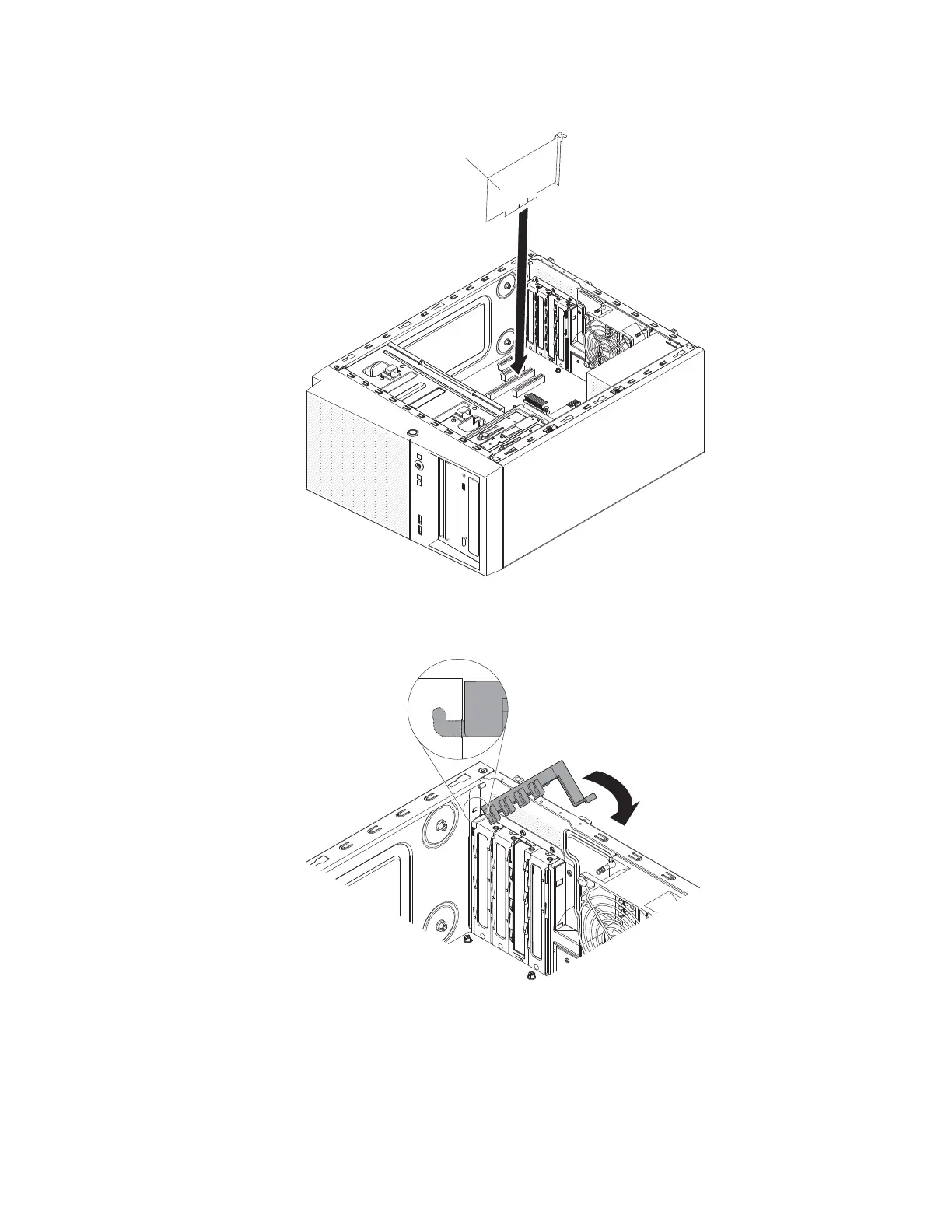

16. Position the rear adapter retention bracket so that the hole in one of the hinge
points is aligned with the hinge pin on the chassis; then, place the hinge pin
through the hole on the chassis.
17. Rotate the rear adapter retention bracket into place so that the hole in the
opposite hinge point snaps into place over the hinge pin on the chassis.
18. Connect any required cables to the adapter. Route the cables so that they do
not block the flow of air from the system fan.
19. Install the air duct.
20. Install the side cover (see “Installing the side cover” on page 49).
21. Stand the server back up in its vertical position.
Chapter 2. Installing optional devices 43

IBM System x3100 M4 Specifications

General

Memory	Up to 32 GB DDR3 ECC UDIMM
Memory Slots	4 DIMM slots
Form Factor	Tower
Chipset	Intel C202
Processor Sockets	1
Processor	Intel Xeon E3-1200 v2 series, Intel Pentium series, Intel Celeron series
Storage	Up to 4x 3.5-inch
Power Supply	350W
Hard Drive Bays	4 x 3.5"
RAID Support	RAID 0, 1, 10
Network Interface	Gigabit Ethernet
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 2.0 x4
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
