IBM System x3550 Type 7978 - System-Board Option Connectors

System-board option connectors

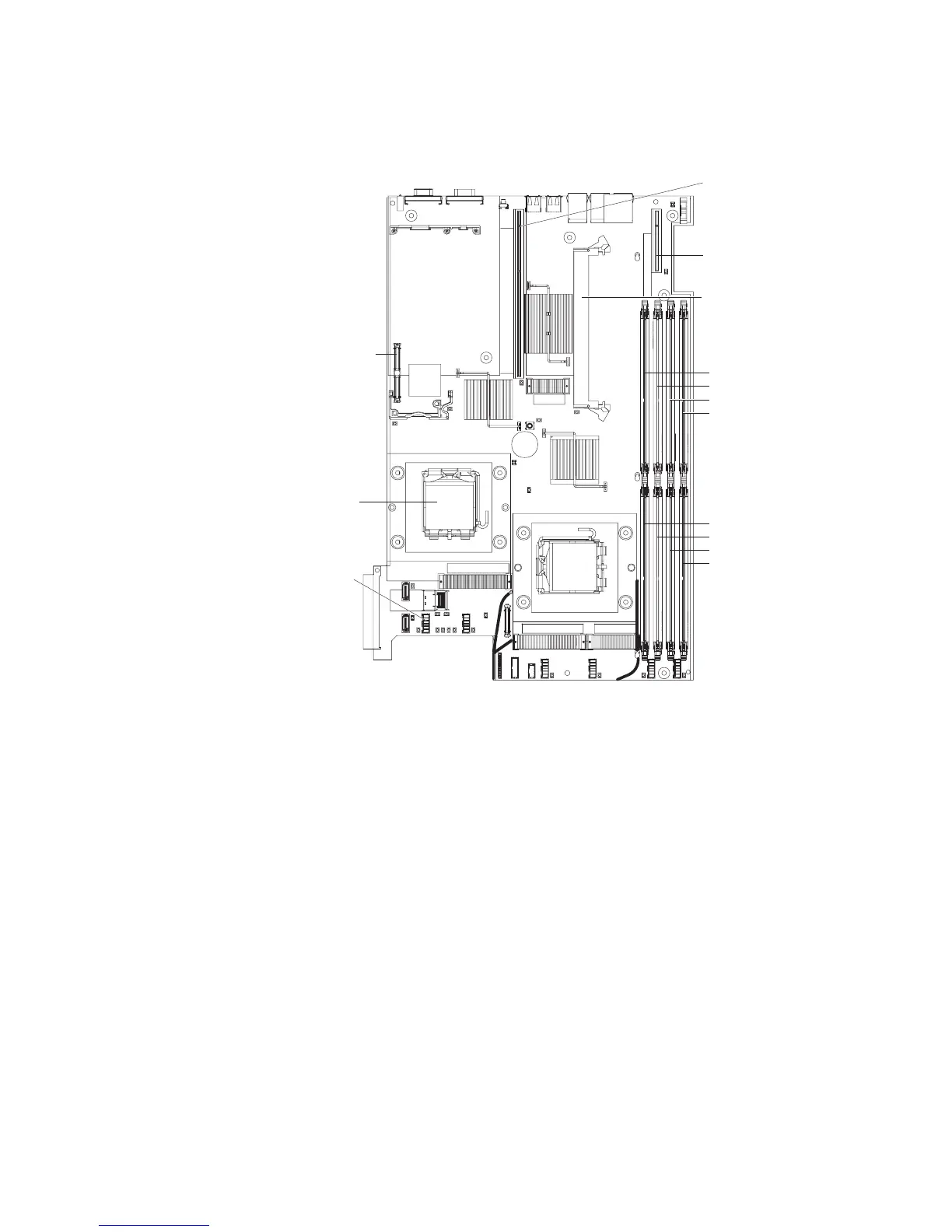

The following illustration shows the connectors for user-installable options.
DIMM 5 connector
DIMM 1 connector
DIMM 6 connector
DIMM 2 connector
DIMM 7 connector
DIMM 3 connector
DIMM 8 connector
DIMM 4 connector
Microprocessor 2
connector
PCI Express or
PCI-X riser-card
connector slot 2
(J12)
PCI-Express
riser card connector slot 1
(J34)
RAID controller
connector (J3)
(some models)
Remote Supervisor
Adapter II SlimLine
connector (J60)
Fan 1 connector
Chapter 1. Introduction 17
