IBM System x3650 M4 HD User Manual

IBM System x3650 M4 HD 14
Internal storage
IBM System x3650 M4 HD server supports 1.8-inch and 2.5-inch drives. The server supports the following
drive configurations:
16x 2.5-inch hot-swap drive bays (front of server)

16x 2.5-inch hot-swap drive bays (front) + 2x 2.5-inch hot-swap drive bays (rear)

24x 2.5-inch hot-swap drive bays (front)

24x 2.5-inch hot-swap drive bays (front) + 2x 2.5-inch hot-swap drive bays (rear)

16x 2.5-inch hot-swap drive bays (front) + 16x 1.8-inch hot-swap drive bays (front)

Note: The combination of 16x 2.5-inch hot-swap drive bays (front) + 16x 1.8-inch hot-swap drive bays
(front) + 2x 2.5-inch hot-swap drive bays (rear) is not supported.
The following figure shows these drive bay configurations.

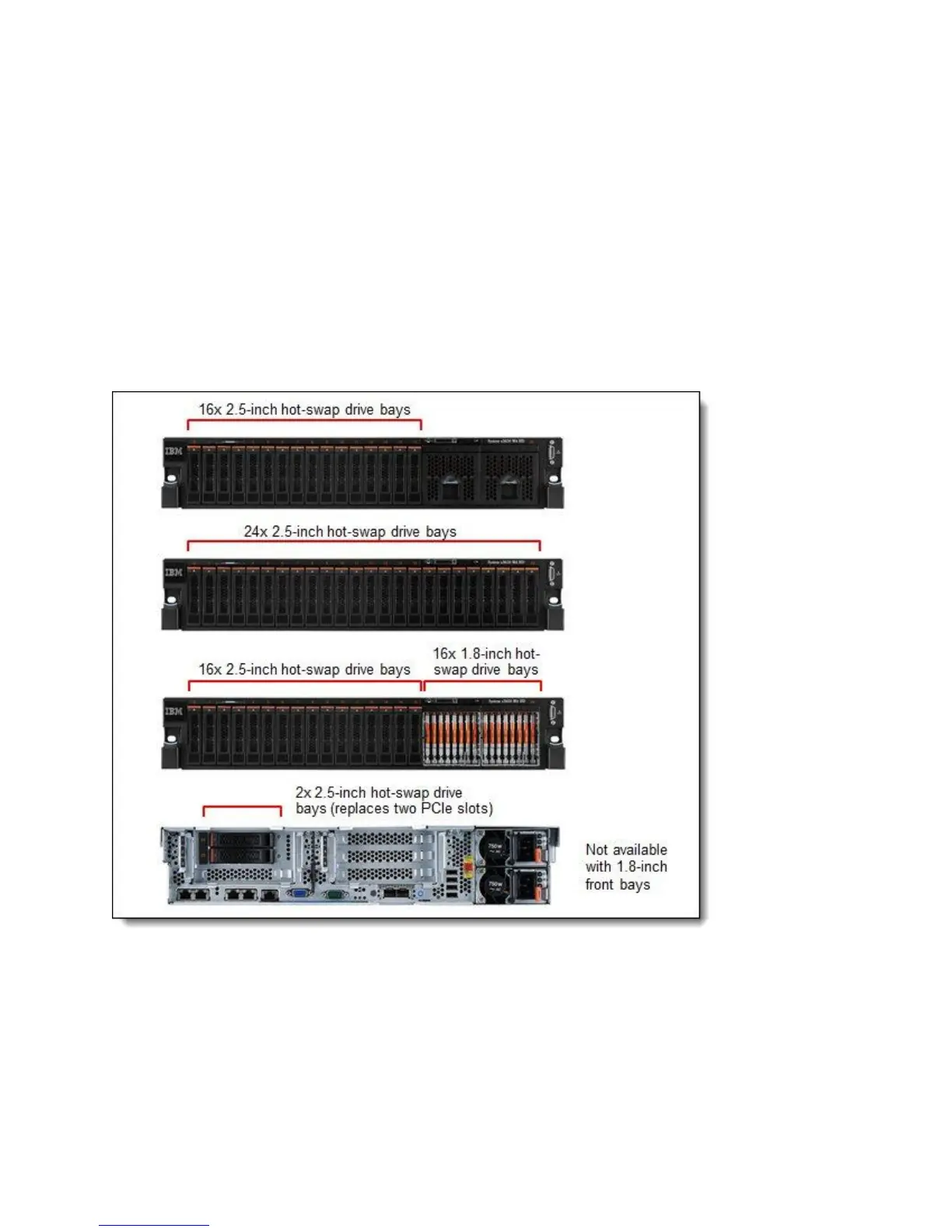

Figure 5. Internal drive configurations

IBM System x3650 M4 HD Specifications

General

Memory Slots	24 DIMM slots
Form Factor	2U rack
Chipset	Intel C600 series
Expansion Slots	Up to six PCIe 3.0 slots
Processor	Intel Xeon E5-2600 v2 product family
Memory	Up to 768 GB
Storage	Hot-swap SAS/SATA/SSD
Storage Capacity	Up to 16 TB
RAID Support	RAID 0, 1, 10
Power Supply	Dual 750W or 900W hot-swap power supplies
Network Interface	Four integrated Gigabit Ethernet ports
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
