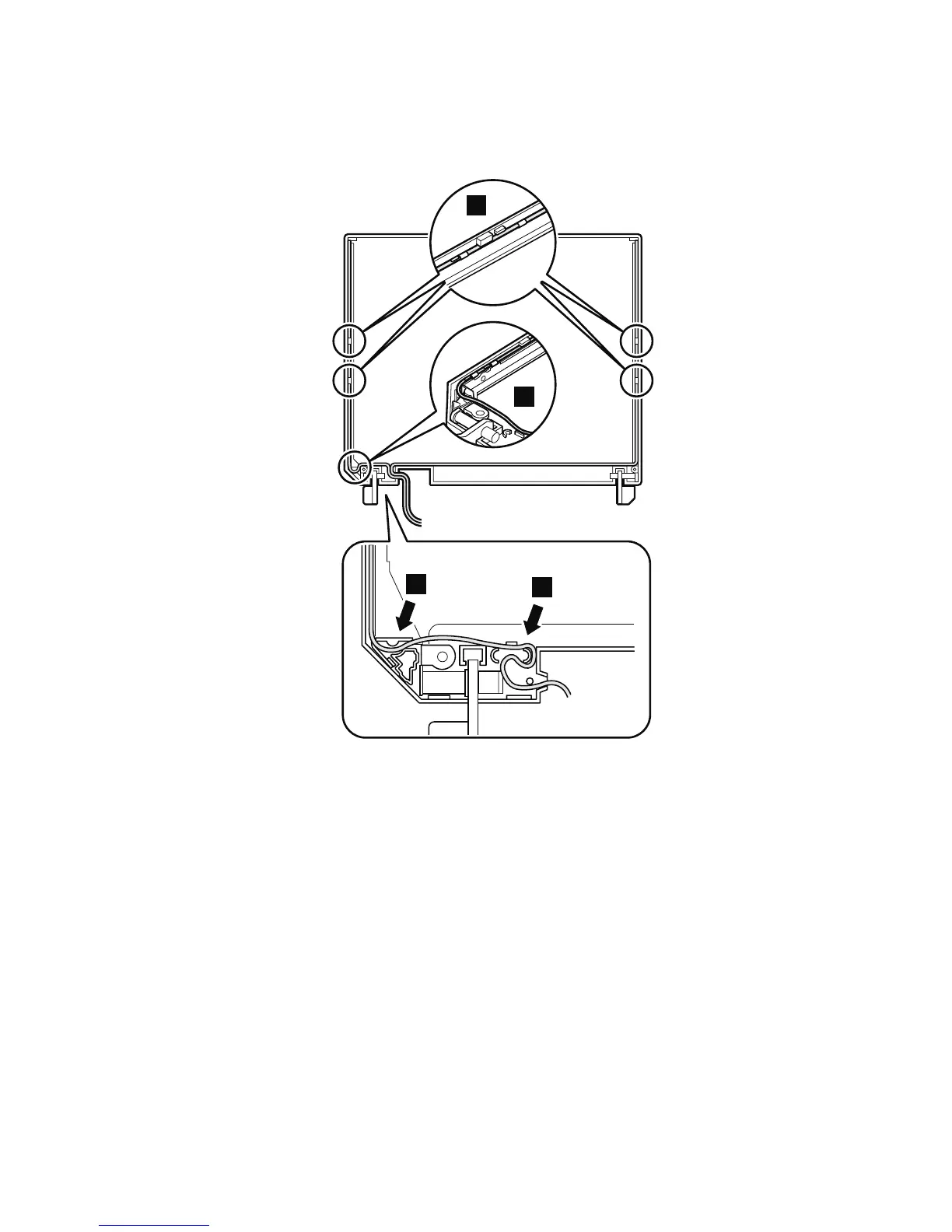

3.
Make
sure
that
the
antenna
assembly
and
hinges
are
firmly
attached;
there
are
some
projections
(
b
,
c
)
on
the
LCD
cover
to
fix
the
antenna
assembly
into
place.
And
then,
route
the
gray
cable
as
in
this
figure.
b
c
3
3
(continued)
Removing
and
replacing
a
FRU
ThinkPad
T30
123
126
128
Table of Contents
Default Chapter
3
Table of Contents
3
About this Manual
5
Introduction
7
Important Service Information
7
Strategy for Replacing Frus
7
How to Use Error Messages
8
Diskette Compatibility Matrix
8
Safety Notices: Multilingual Translations
8
Safety Information
20
General Safety
20
Electrical Safety
21
Safety Inspection Guide
22
Handling Devices that Are Sensitive to Electorostatic Discharge
23
Grounding Requirements
24
General Descriptions
20
Laser Compliance Statement
25
General Descriptions
29
Read this First
29
What to Do First
29
Related Service Information
31
Service Web Site
31
Restoring the Preloaded System
31
Using the Recovery CD
32
Passwords
33
Supervisor Password
34
Power Management
35
Standby Mode
36
Hibernation Mode
37
Checkout Guide
39
Testing the Computer
39
Detecting System Information with PC-Doctor
41
Power System Checkout
42
Checking Operational Charging
43
Checking the Battery Pack
43
Checking the Backup Battery
44
Thinkpad T30
45
Product Overview
47
Specifications
47
Status Indicators
49
FRU Tests
51
Fn Key Combinations
53
Symptom-To-FRU Index
54
Numeric Error Codes
54
Error Messages
57
Beep Symptoms
58
LCD-Related Symptoms
59
Intermittent Problems
60
Undetermined Problems
60
FRU Replacement Notices
61
Screw Notices
61
Retaining Serial Numbers
62
Restoring the Serial Number of the System Unit
62
Retaining the UUID
62
Removing and Replacing a FRU
64
1010 Battery Pack
65
1020 Ultrabay Plus Device
66
1030 Hard-Disk Drive
67
1040 Shock Absorber
69
1050 Backup Battery
71
1060 DIMM
73
1070 Mini PCI Adapter
75
1080 Communication Daughter Card (CDC)
78
Modem Daughter Card (MDC)
78
Bluetooth Daughter Card (BDC)
79
1090 Keyboard
81
1100 Fan Assembly
85
1110 Cpu
89
1120 Keyboard Bezel
91
1130 Hinge Cover
96
1140 LCD Assembly
98
1150 PC Card Slot Assembly
104
1160 Speaker Assembly
105
1170 Hard-Disk Drive Slot
106
1180 Ultrabay Plus Guide Rail and Microphone Cable
107
1190 System Board
110
1200 Bluetooth Antenna Louver Assembly
114
1210 I/O Card
115
2010 LCD Front Bezel
118
2020 Inverter Card
119
2030 LCD Panel and LCD Cable Assembly
121
2040 Antenna Assembly, Hinges, and LCD Cover
124
3010 Thinkpad Dock PCI Cover
129
3020 Thinkpad Dock Top Cover
131
Locations
136
Front View
136
Rear View
138
Bottom View
139
Parts List
140
T30 Series Model Matrix
140
Overall
143
LCD Frus
153
14.1-In. XGA TFT
154
In. SXGA+ TFT
156
Keyboard
157
Recovery Cds
158
For Windows 2000
158
For Windows XP Professional
159
AC Adapters
160
Miscellaneous Parts
160
Optional Frus
163
Ultrabay Plus Devices
163
Other Optional Frus
163
Common Parts List
164
Tools
164
Power Cords (System)
164
Power Cords (Thinkpad Dock)
165
Notices
166
Trademarks
166
