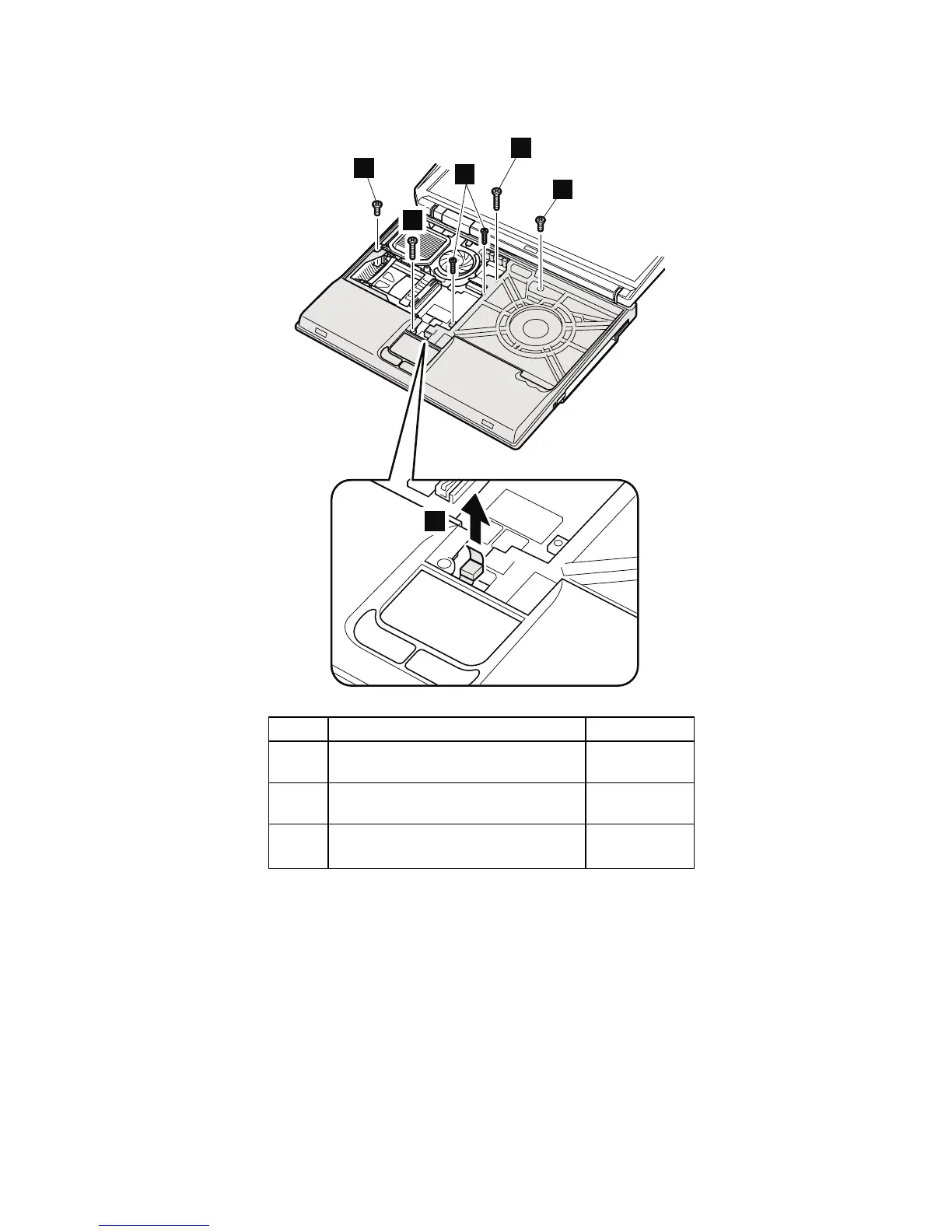

If the ThinkPad computer you are servicing has the touch
pad, detach the connector a before removing the screws.
3
4
5
5
3
a
Step Screw (quantity) Torque
3 M2.5 × 16 mm, nylon-coated (2) 0.392 Nm
(4 kgfcm)
4 M2 × 16 mm, nylon-coated (2) 0.245 Nm
(2.5 kgfcm)
5 M2.5 × 4.8 mm, nylon-coated (2) 0.392 Nm
(4 kgfcm)
When installing: If the ThinkPad computer you are
servicing has the touch pad, make sure
that the connector a is firmly attached.
(continued)
Removing and replacing a FRU
ThinkPad T30 89
