15.0-in. LCD models:

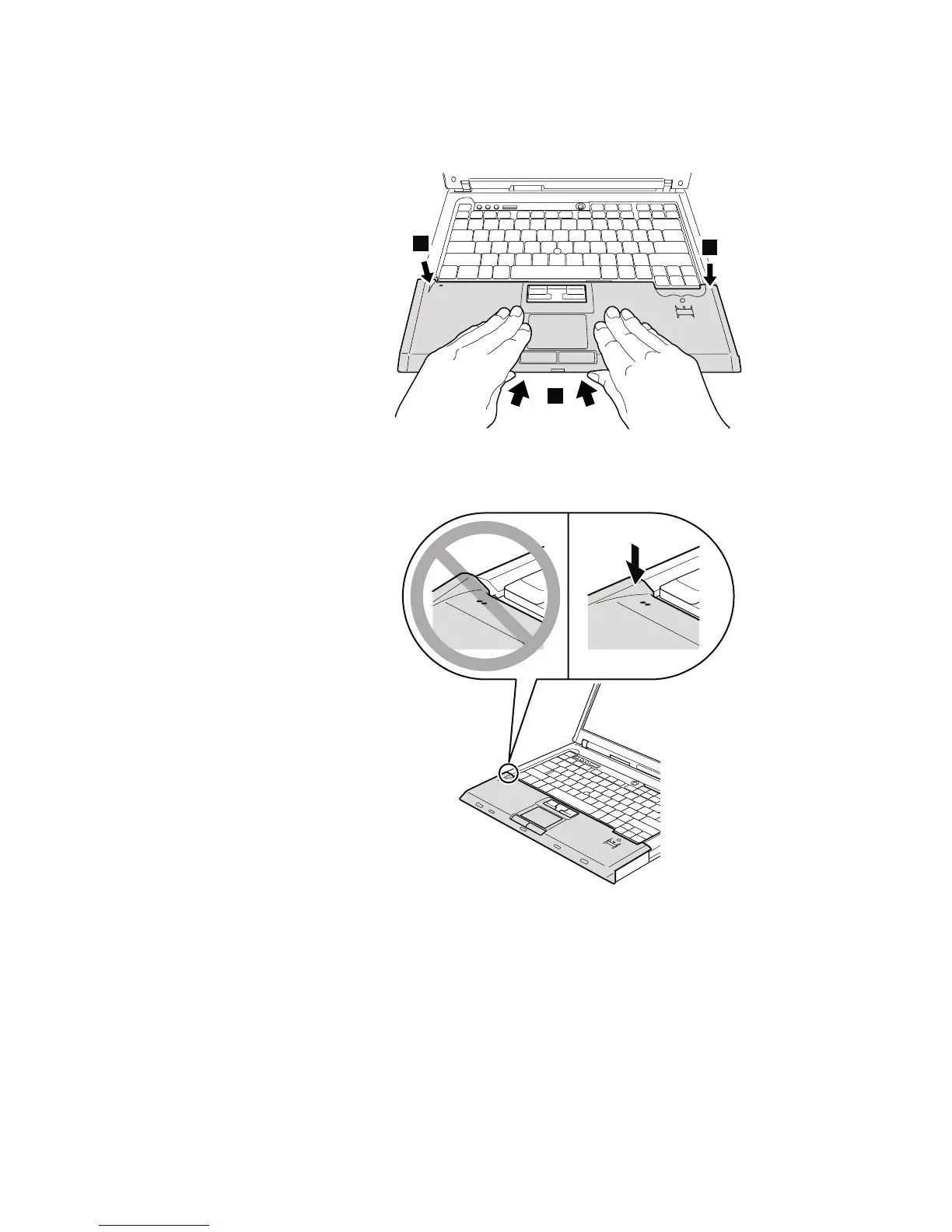

a. Align the front side of the palm rest and the frame, and attach the
front-center of the palm rest, as shown in this figure.
1
2
2
b. Press the left-top edge of the palm rest to latch it, and make sure that the
left-top edge, the right-top edge, and the front side of the palm rest are
attached firmly.
(continued)
Removing and replacing a FRU
72 MT 1951, 1952, 1953, 1954, 1955, 1956, 2007, 2008, 2009, 2613, 2623, and 2637
