1140 CPU
For access, remove these FRUs in order:
v “1010 Battery pack” on page 63
v “1040 Palm rest or palm rest with fingerprint reader” on page 67
v “1060 Keyboard” on page 75
v “1120 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 86
v “1130 Fan assembly” on page 89
Attention: CPU is extremely sensitive. When you service the CPU, avoid any
kind of rough handling.

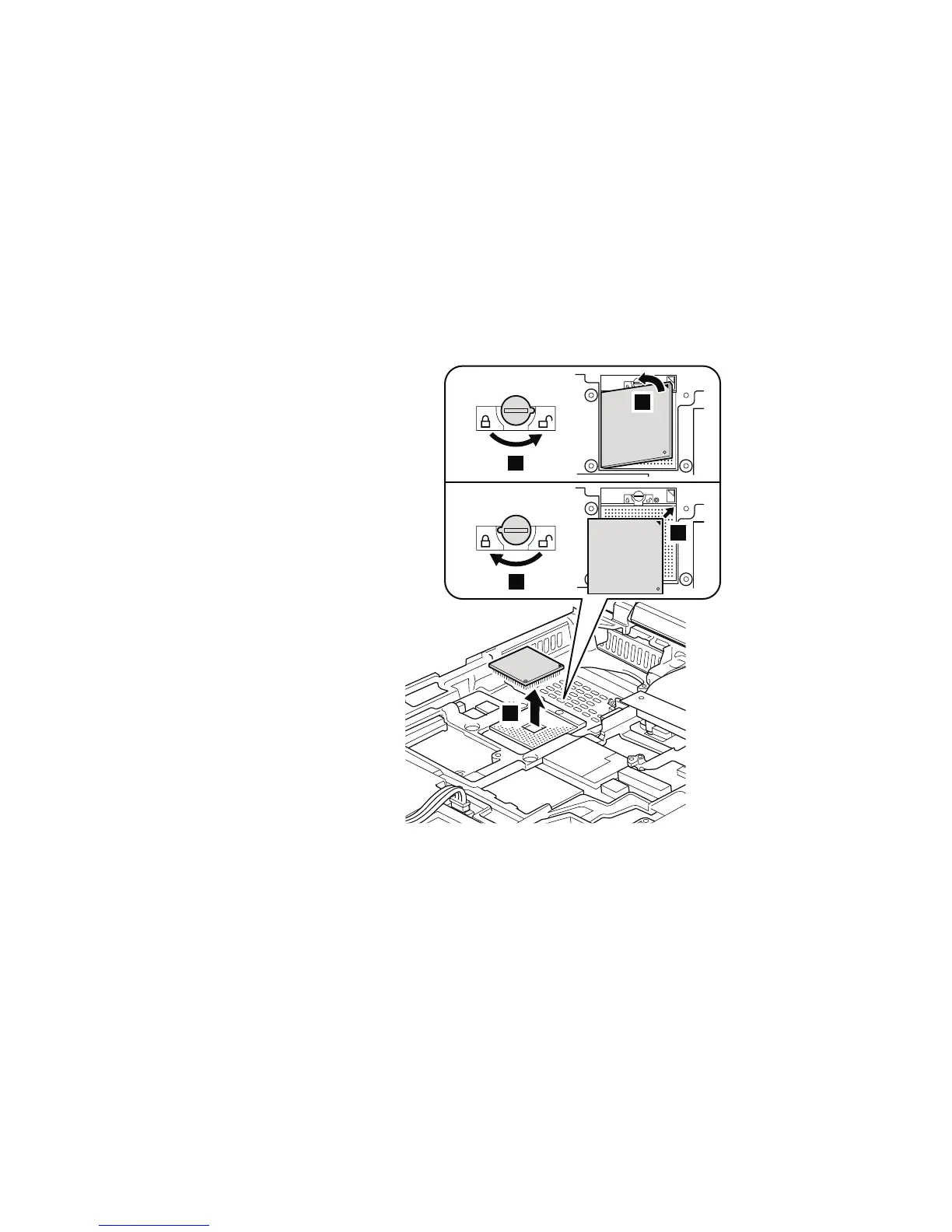

Rotate the head of the screw in the direction shown by arrow 1 to release the
lock; then remove the CPU.
3
1
b
2
a
When installing: Place the CPU on the CPU socket a, and then rotate the head
of the screw in the direction shown by arrow b to secure the
CPU.
Removing and replacing a FRU
ThinkPad T60 and T60p (14.1-inch and 15.0-inch) 93
