1100 PCI Express Mini Card for wireless WAN
For access, remove these FRUs in order:
v “1010 Battery pack” on page 63
v “1040 Palm rest or palm rest with fingerprint reader” on page 67
v “1060 Keyboard” on page 75

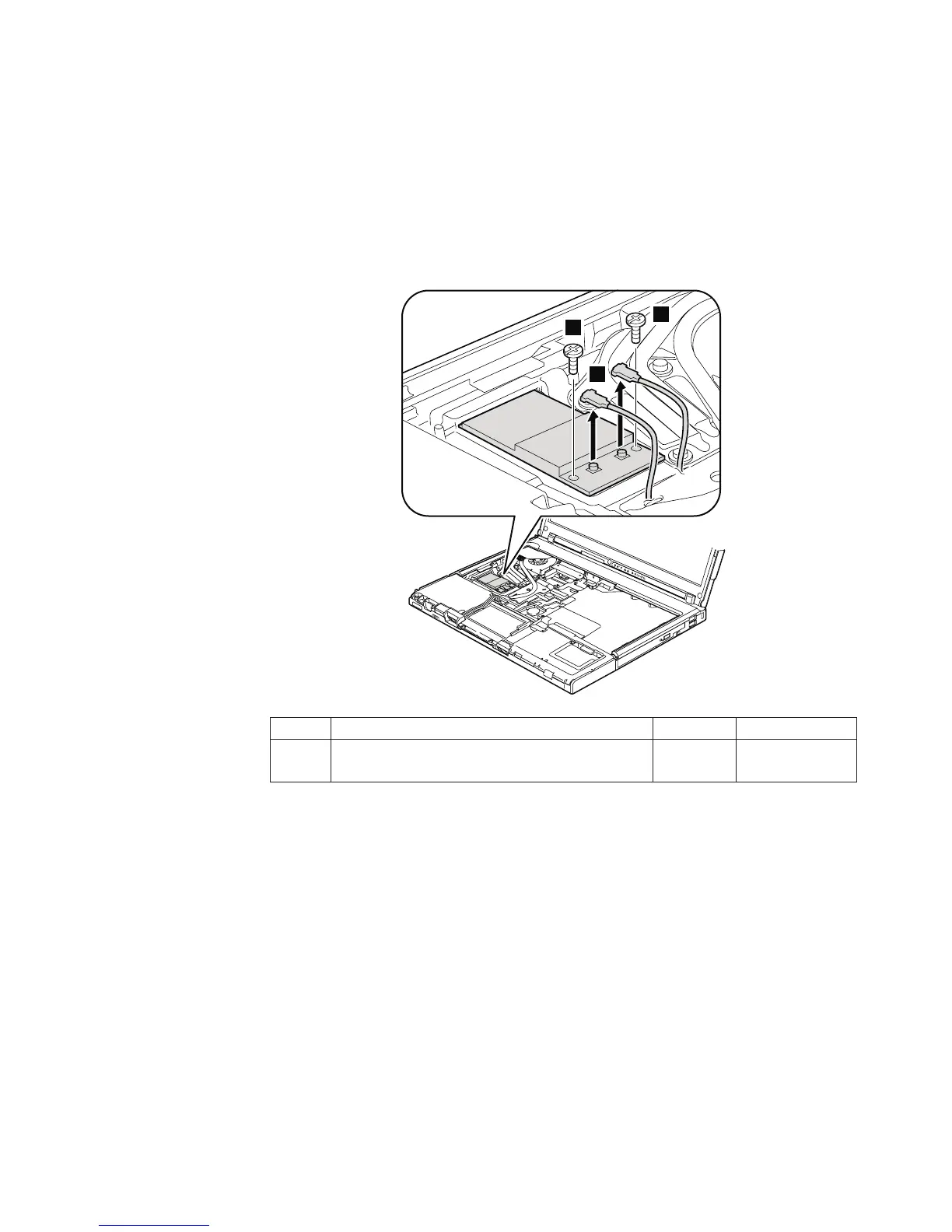

In step 1, unplug the jacks by using the removal tool antenna RF connector
(P/N: 08K7159) or pick the connectors with your fingers and gently unplug them
in direction of the arrow.
2
2
1
Step Screw (quantity) Color Torque
2 M2 × 3 mm, small-head, nylon-coated (2) Silver 0.167 Nm
(1.7 kgfcm)
When installing: Plug the red cable into the jack labeled MAIN on the card, and
the blue cable into the jack labeled AUX.
(continued)
Removing and replacing a FRU
ThinkPad T60 and T60p (14.1-inch and 15.0-inch) 83
