1130 Fan assembly
Important
For the compatibility of the fan assembly, see “FRU compatibility matrix” on
page 61.
For access, remove these FRUs in order:
v “1010 Battery pack” on page 63
v “1040 Palm rest or palm rest with fingerprint reader” on page 67
v “1060 Keyboard” on page 75
v “1120 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 86

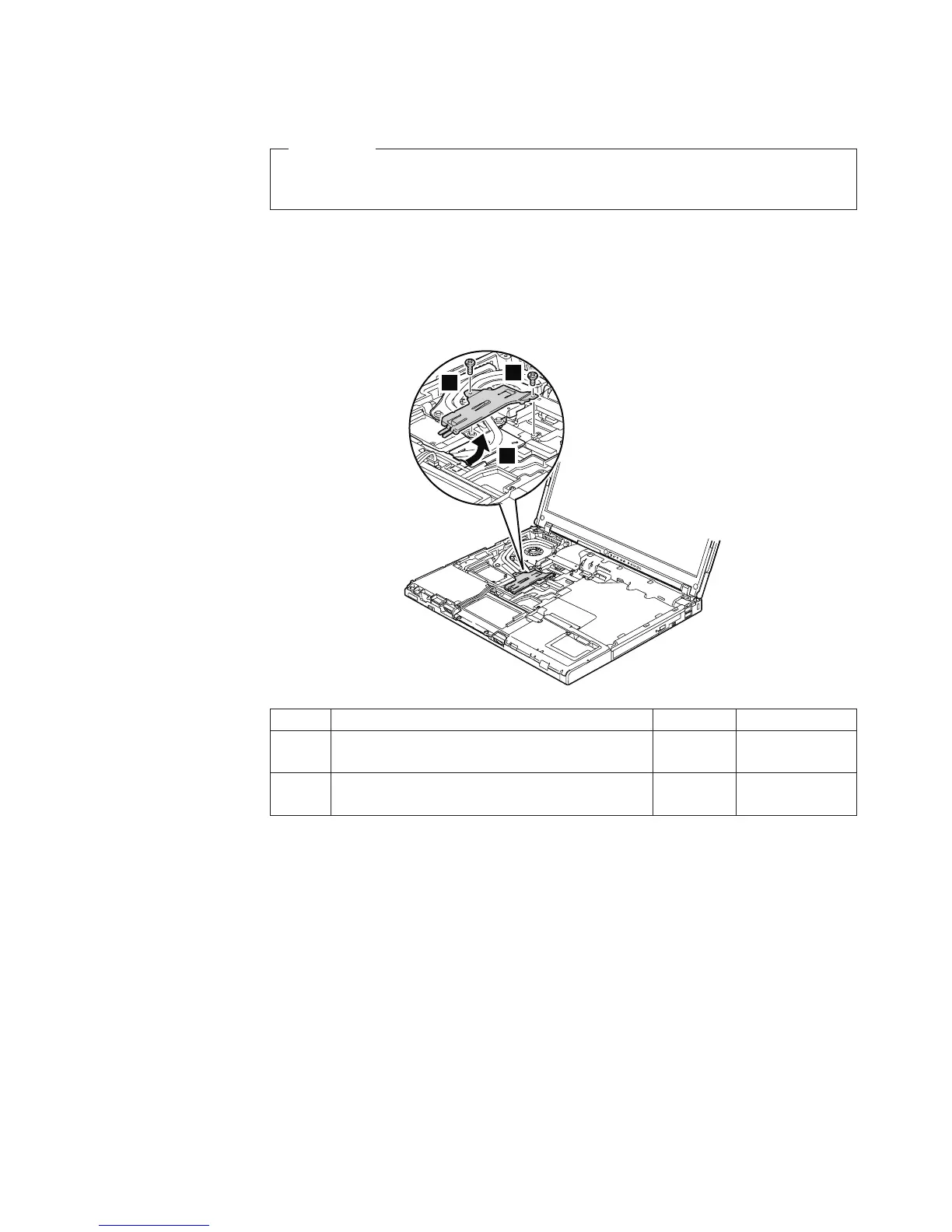

2
1
3
Step Screw (quantity) Color Torque
1 M2 × 9.5 mm, flat-head, nylon-coated (1) Black 0.167 Nm
(1.7 kgfcm)
2 M2 × 3 mm, small-head, nylon-coated (1) Silver 0.167 Nm
(1.7
kgfcm)
(continued)
Removing and replacing a FRU
ThinkPad T60 and T60p (14.1-inch and 15.0-inch) 89
