Install the Processor
This mainboard is installed with a socket-7, and so it may be
installed with any of the socket-7 processors including the Intel
P55C (MMX) series, the Cyrix/IBM 6x86L/6x86MX/MII series,
the AMD K6/K6-2/K6-III series, the IDT C6 series, and the
WinChip 2/2A. The mainboard supports system bus speeds of 60,
66, and 75 MHz.
The board supports CPU plug and play, so the system can
automatically install the processor with the correct clock speed and
the correct system bus frequency. To automatically configure the
processor, use the BIOS setup program to select the CPU speed
and system bus frequency. See chapter three for more information.
To ensure reliability, make sure that your socket-7 processor is
fitted with a heatsink/cooling fan assembly.
The socket-7 processor installs into the ZIF (Zero Insertion Force)
socket-7 on the mainboard.

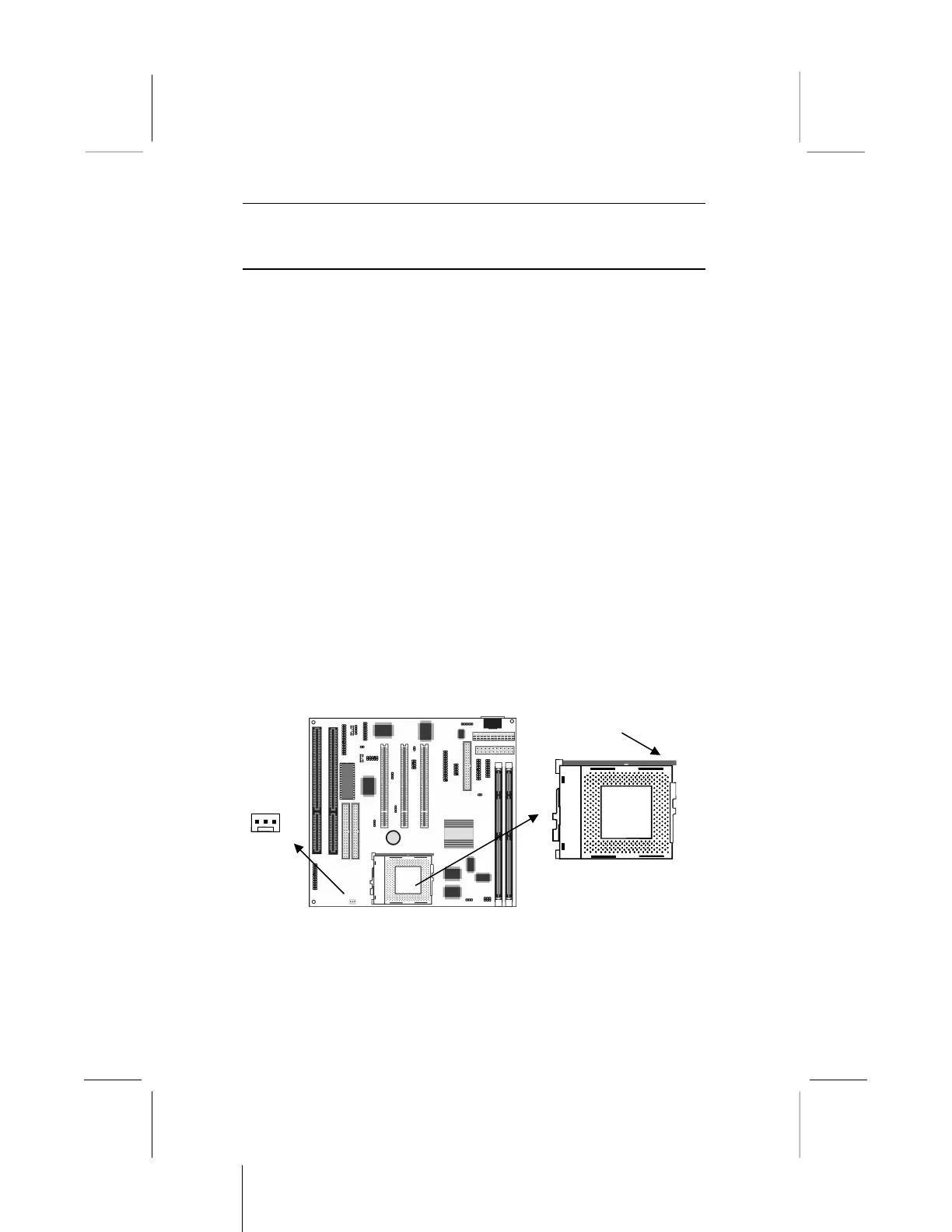

1. Locate the socket-7 and FAN1. Pull the locking lever out from
the socket and swing it to the upright position.
