Instruction Manual C100-AE
1. Introduction
1.1 General information
1.2 Measurement and display features
STANDARD MEASURING MODE : Displays the current measured value
DYNAMIC MEASURING MODE : MINIMUM
MAXIMUM
TIR =
( MAX - MIN )
MEAN =
( MAX + MIN )
2
Units
mm and INCH selectable
Measuring range / Resolution
± 1,5 mm / 0.1 µm, 0,059 / 0.00001 inch
± 15 mm / 1 µm, 0,59 / 0.0001 inch
Numeric display ranges
Relative measurements ± 9.9999 mm / ±99.999 mm, ±.99999 inch / ±9.9999 inch
Absolute measurements 0...99.9999 mm / 0...999.999 mm, 0...9.99999 inch / 0...99.9999 inch

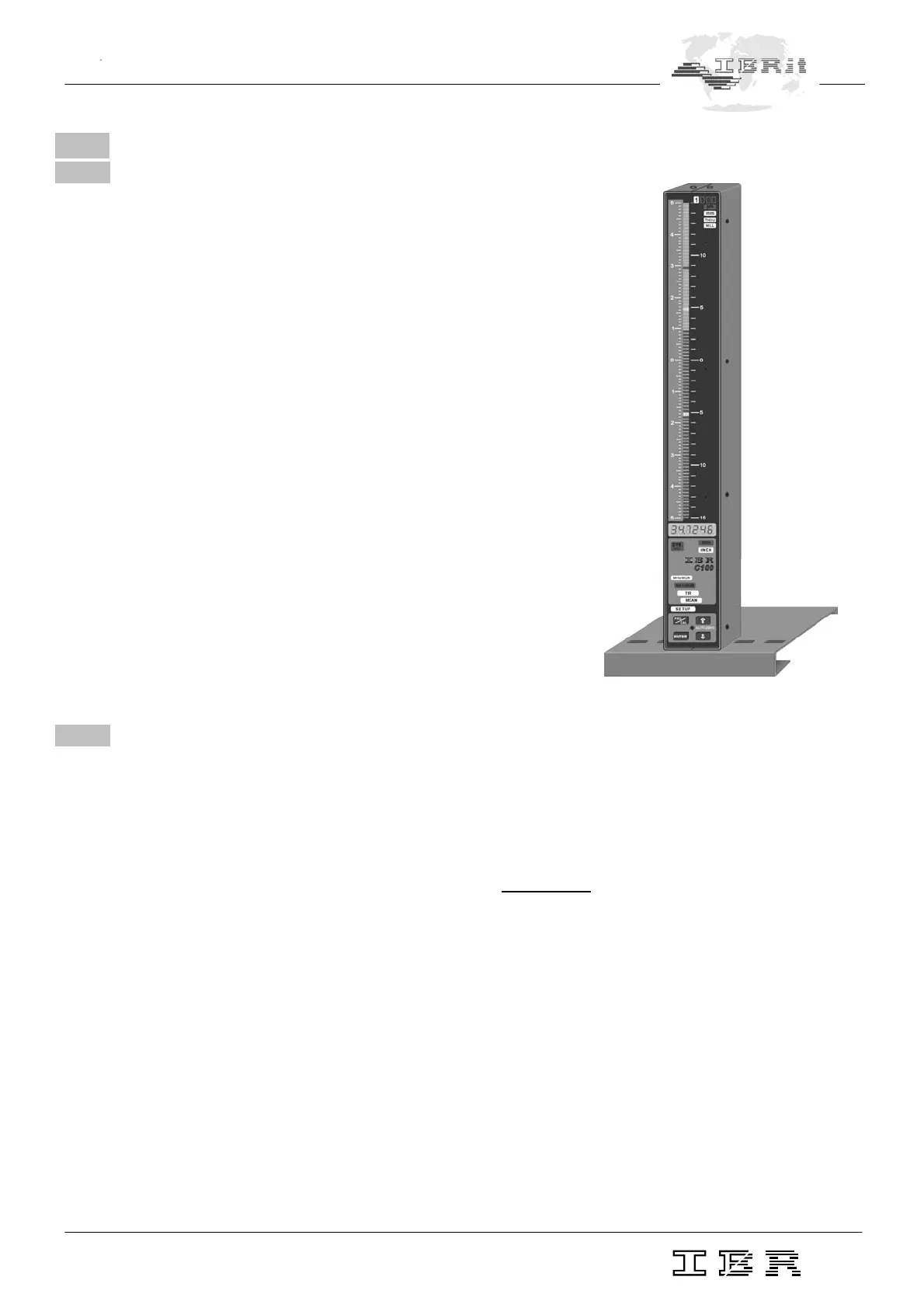

The column display C100-AE is an electronic gauge
with integrated pneumatic measurement converter.
The compact design of the microprocessor-based
electronics and pneumatic measurement convert
allows static and dynamic measurements of work-
pieces in an industrial environment.
Highly sophisticated measurement programmes
simplify measuring and gauge calibration.
The numeric display is designed for output of
absolute or comparative measurement values and
classification of the machined work pieces. The three-
coloured column display features programmable
tolerance points and supports an accurate assessment
of the processing quality. The C100-AE is an ideal
tool for manual examination of measurement values or
automatic gauging applications with computers or PLC
units.
