2.6 Connecting a foot or hand switch

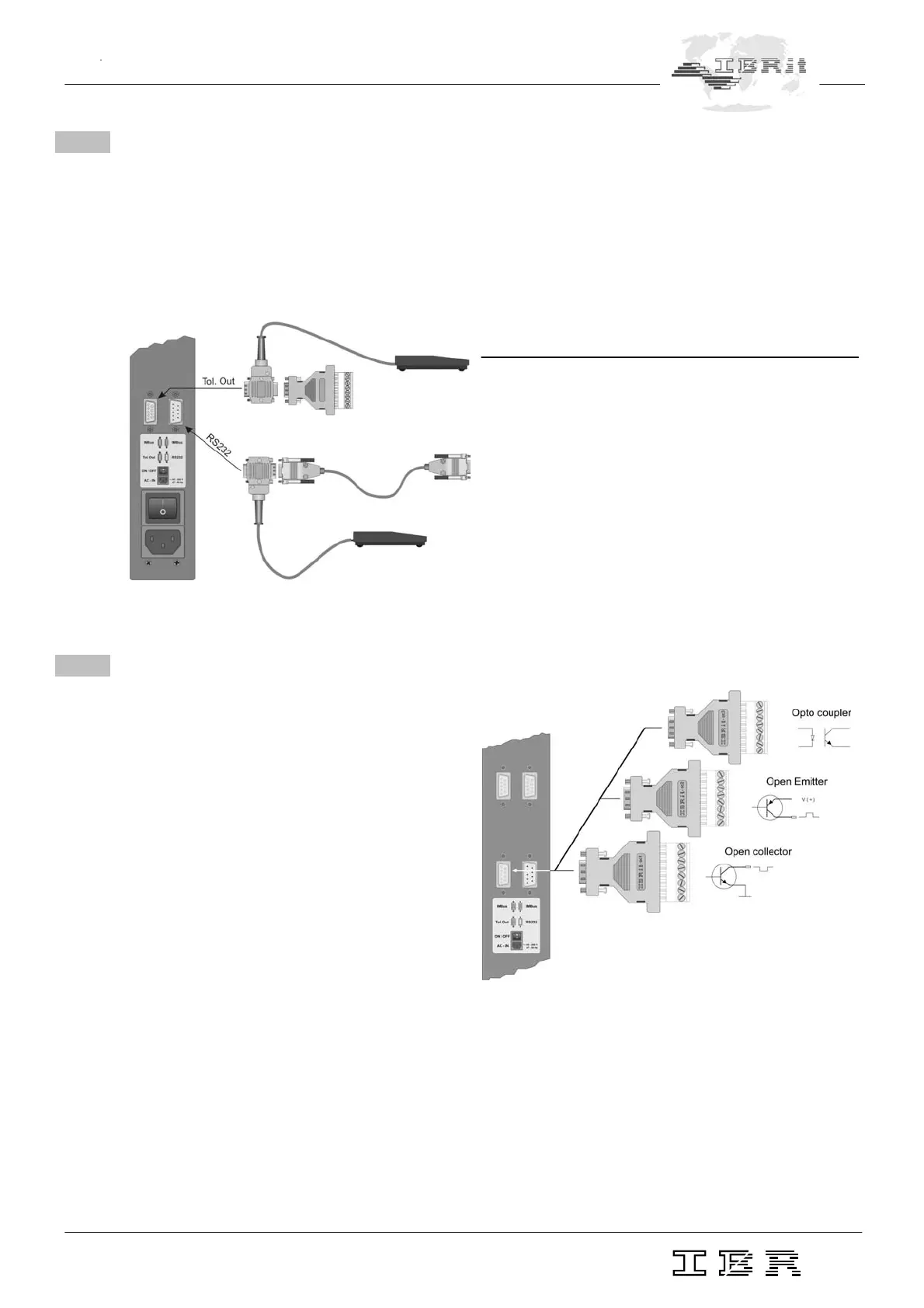

Foot and hand switches can be connected to both the RS232 male connector and the Tol.-Out socket, to
be found at the rear of the column gauge. Please, use only the foot and hand switches supplied with the
instrument. When a foot or hand switch with an adapter-connector is used, it is possible to connect an
additional cable or an adapter to the RS232 or to the Tol.-Out connectors.
The functions of the foot switch can be set in the Setup menu and is identical for both connectors
RS232 and Tol.-Out.
Foot and hand switch types Art. No.
Foot switch IP32..................................... F602 001
Foot switch IP65 .................................... F602 002
Foot switch with adapter connector IP32 F602 003
Foot switch with adapter connector IP65 F602 004
Hand switch IP65 ................................... F602 010
Hand switch with adapter connector IP65 F602 011
Caution !!!
Fix the screws on all connections.
For pin assignment of connectors refer to chapter 6.
2.7 Connecting an adapter for tolerance outputs
Adapters for switching outputs of tolerances are connected
on the rear to the "Tol.-Out" Sub-D-socket.
A total of 5 switching outputs are available :
1. Above max. tolerance ( red )
2. Above max. tolerance ( yellow )
3. Measured value within range ( green )
4. Below min. tolerance ( yellow )
5. Below min. tolerance ( red )
Adapters for tolerance outputs : Art.-No.
Open collector-adapter OC3 ............ F603 001
Open emitter-adapter OE3 ............... F603 002
Opto coupler-adapter OP3 ............... F603 003
For pin assignment of adapters OC3/OE3/OP3 refer to annex 6,
For further information about the adapters see the technical specifications Document numbers
D2F603 001, D2F603 002, D2F603 003.
