ICANCLAVE STE-8-D - 2 Description of the sterilizer

5
Symbols
For safe operation, please pay close attention to the alert symbols below which can be found
on the sterilizer and throughout this manual.
Important information (Caution) Hot surface Ground connection
2 Description of the sterilizer

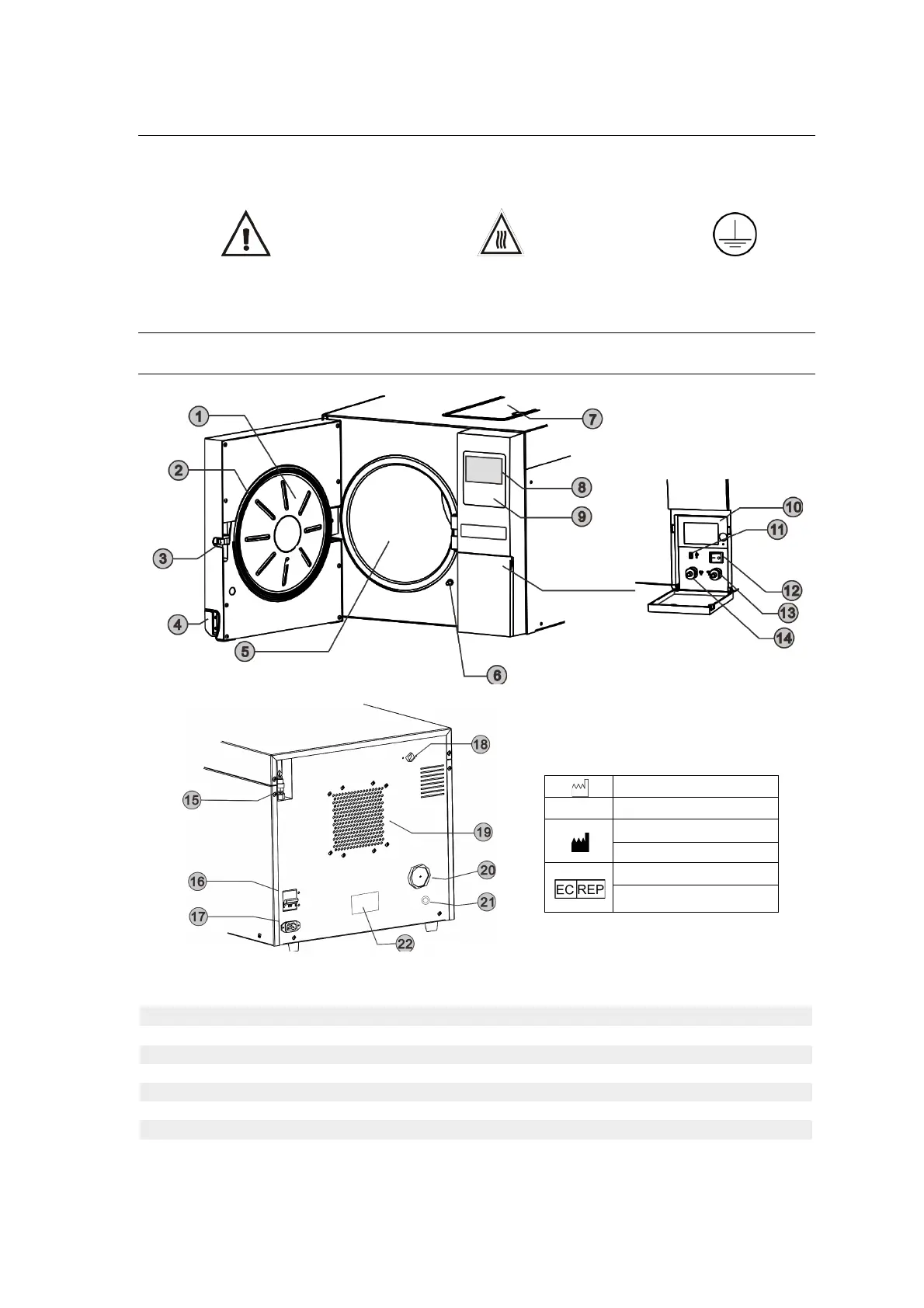

Sterilizer views
1. Door
9. Control panel
16. Circuit breaker
2. Door seal ring
10. Printer
17. Power socket
3. Door lock
11. USB port
18. Used water tank vent
4. Door handle
12. Main switch
19. Condenser vent
5. Chamber
13. Distilled water outlet /
20. Bacteriological filter
6. Door switch
Distilled water inlet*
21. Distilled water drain*
7. Distilled water tank
14. Used water tank outlet
22. Rating plate
8. LCD
15. Safety valve
*Models equipped with external water filling function.
Date of manufacture
SN
Manufacture number
Manufacturer Name
Manufacturer Address
EC-Representative Name
EC-Representative Address
