10
AC Power Information
The games main fuse is accessed through the back of the game at the power
mod. Above the power cord is a small panel that contains the main fuse. The
value of the fuse for 110 volt users is 6 AMPS at 250Volt type slow blow. The
value of the fuse for 220 users is 3 AMPS at 250Volt type slow blow.

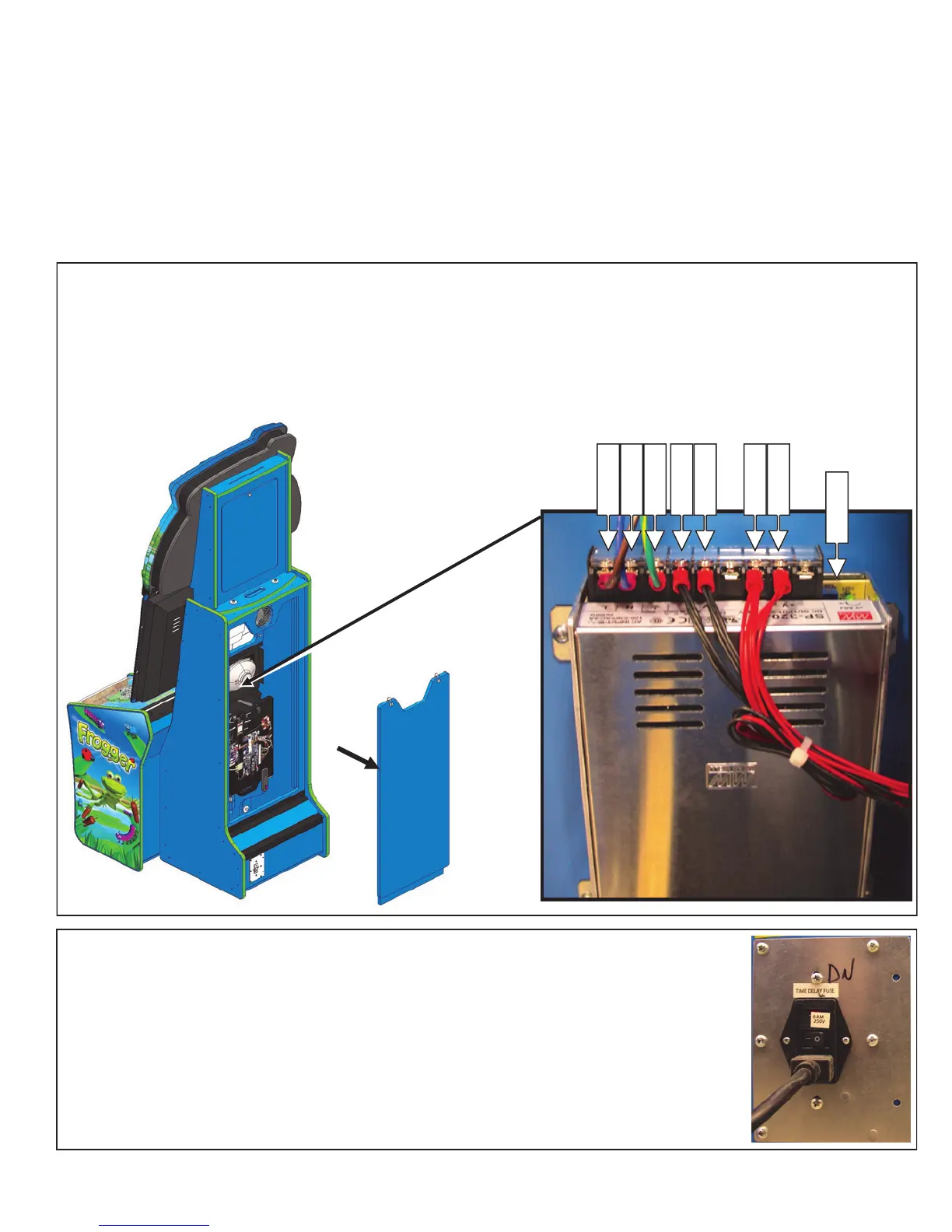

Monitor Power supply Removal
The monitor uses a 24 volt DC power supply at 13 amps. It is located in the back of the game. To
access remove the back door and put aside. The power supply is mounted on the wall on the left
side.
AC Line
AC Neutral
AC Earth
Ground
Ground
+24
+24
adjuster
