Game Maintenance
Marquee Bonus Display Board Removal

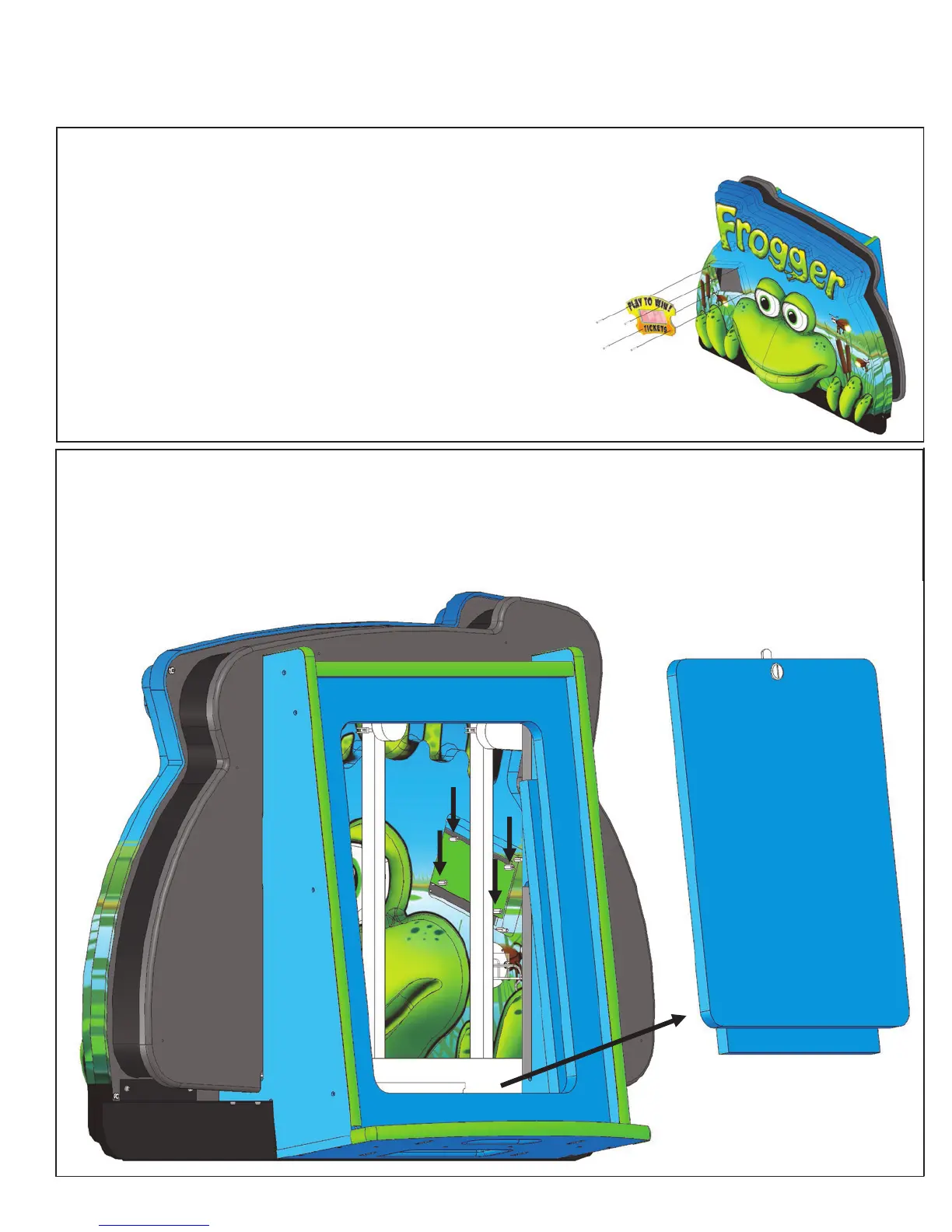

It is not necessary to remove the front marquee cover to replace the bonus display board. Remove the
upper back door and set aside. Locate the four plastic 1/4” stand off nuts and remove. Disconnect wire
harness to board. Assemble in reverse.
Marquee Bonus Ticket Display Assembly Removal
To remove the bonus ticket display assembly remove the four
mounting bolts that hold it to the marquee cover. This is only
required if you need to replace the front plastic or lens. It is not
necessary to remove the entire assembly to replace the dis-
play board. It is recommended to follow the information in
“Marquee Bonus Display board Removal” instructions instead.
See Bonus Ticket display assembly towards the back of the
manual.
