Icematic F 80 C - Operating Pressures

GB
24
REFRIGERANT METERING DEVICE:
capillary tube
REFRIGERANT CHARGE (R 134 A)
Air cooled Water cooled
F120 440 gr 400 gr
REFRIGERANT CHARGE (R 404 A)
A
ir cooled Water cooled
F200 660 gr 520 gr
S
F300 750 gr 600 gr
S
F500 880 gr 820 gr
SFN1000 2400 gr 1200 gr
NOTE. Before charging the refrigerant system
a
lwayscheck the typeof refrigerantand quantity
as specified on the individual ice machine
dataplate. The refrigerant charges indicated
are relatives to averages operating conditions.

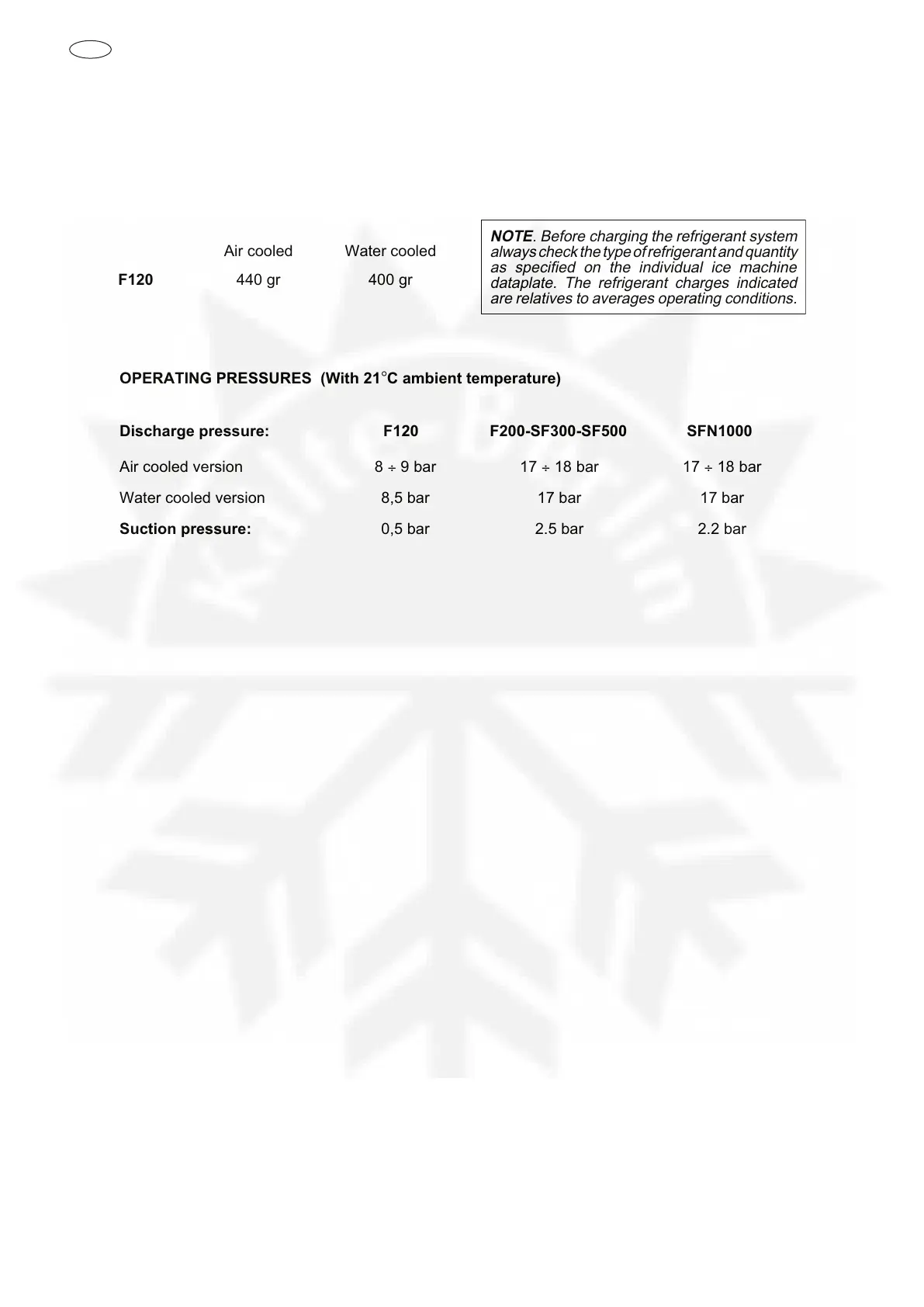

OPERATING PRESSURES (With 21°C ambient temperature)
Discharge pressure: F120 F200-SF300-SF500 SFN1000
Air cooled version 8 ÷ 9 bar 17 ÷ 18 bar 17 ÷ 18 bar
Water cooled version 8,5 bar 17 bar 17 bar
Suction pressure: 0,5 bar 2.5 bar 2.2 bar
