3. Follow the steps of item E to remove the
g
ear motor magnetic sensor.
4. Trace and disconnect the electric wires
leads of the drive motor. Lift and remove the
entire gear motor assembly.
5. To install the replacement gear motor assy
follow the above steps in reverse.

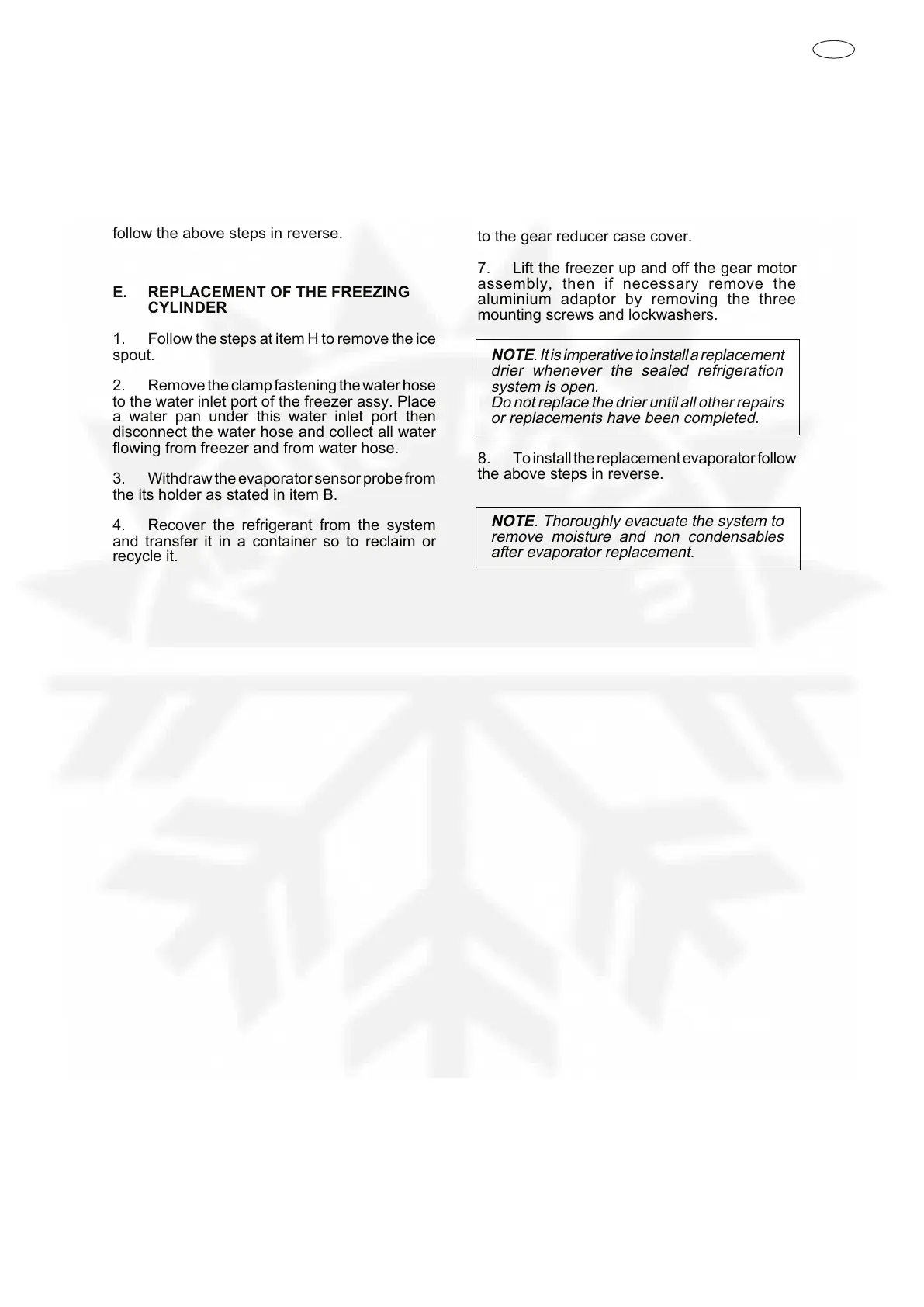

E. REPLACEMENT OF THE FREEZING
CYLINDER
1. Follow the steps at item H to remove the ice
spout.
2. Remove the clamp fastening the water hose
to the water inlet port of the freezer assy. Place
a water pan under this water inlet port then
disconnect the water hose and collect all water
flowing from freezer and from water hose.
3. Withdraw the evaporator sensor probe from
the its holder as stated in item B.
4. Recover the refrigerant from the system
and transfer it in a container so to reclaim or
recycle it.
5
. Unsolder and disconnect the capillary tube
and the accumulator/suction line assy from the
o
utlet line of the freezing cylinder.
6
. Remove the three/four bolts and washers
s
ecuring the gear reducer base to the unit
chassis, then remove bolts and lockwashers
w
hichattachthe bottom of the aluminium adaptor
to the gear reducer case cover.
7. Lift the freezer up and off the gear motor
assembly, then if necessary remove the
a
luminium adaptor by removing the three
mounting screws and lockwashers.
NOTE.It is imperative to install a replacement
drier whenever the sealed refrigeration
system is open.
Do not replace the drier until all other repairs
or replacements have been completed.
8. To installthe replacementevaporatorfollow
the above steps in reverse.
NOTE. Thoroughly evacuate the system to
remove moisture and non condensables
after evaporator replacement.
