SERVICE MODULARI 06/2014
1.8 ICE MACHINE
• The use of a mechanical lift is recommended for lifting the
u
ncrated icemaker onto the bin.
Remove front, top and sides panels.
• Place the unit directly onto the bin, align it with the back of
the bin. Locate the hardware package, take out two mount-
ing screws, and use them to secure the Icemaker to the two
s
ides of the bin.
See illustration below.

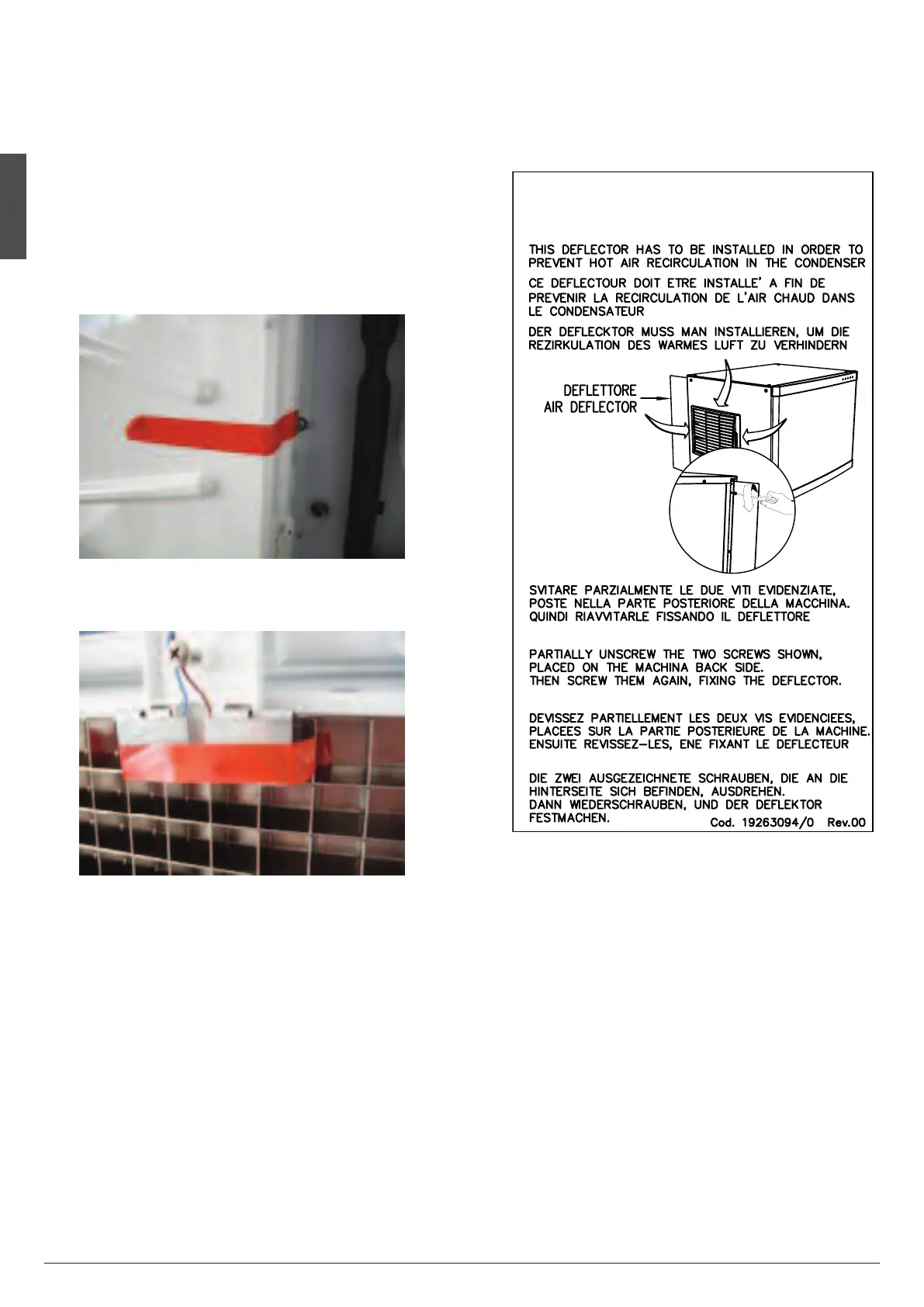

Remove all shipping material as well as the masking tapes
from the ice deflector/evaporator cover.
• Remove first the ice deflector/evaporator cover then the
masking tape from the ice thickness sensor.
1.9 AIR BAFFLE
• Install on the back side of the machine the air bae as per in-
s
truction provided with it.
ISTRUZIONI PER IL MONTAGGIO
QUESTO DEFLETTORE VA INSTALLATO PER IMPEDIRE LA
RICIRCOLAZIONE DELL'ARIA CALDA NEL CONDENSATORE
ATTENZIONE - ATTENTION - ACHTUNG
INSTRUCTIONS DE MONTAGE
ASSEMBLY INSTRUCTIONS
INSTALLATIONSANWEISUNGEN
