REVISIONS
REV.
DESCRIPTION
DATE
B
updated frame and cabinets
2015-01-27
C
replaced parts, adjusted to new
touchpanel
2015-10-05/LM
D
update cabinets - CJ logo
25.08.2016/LM
NO
PART NUMBER
Description
QTY.

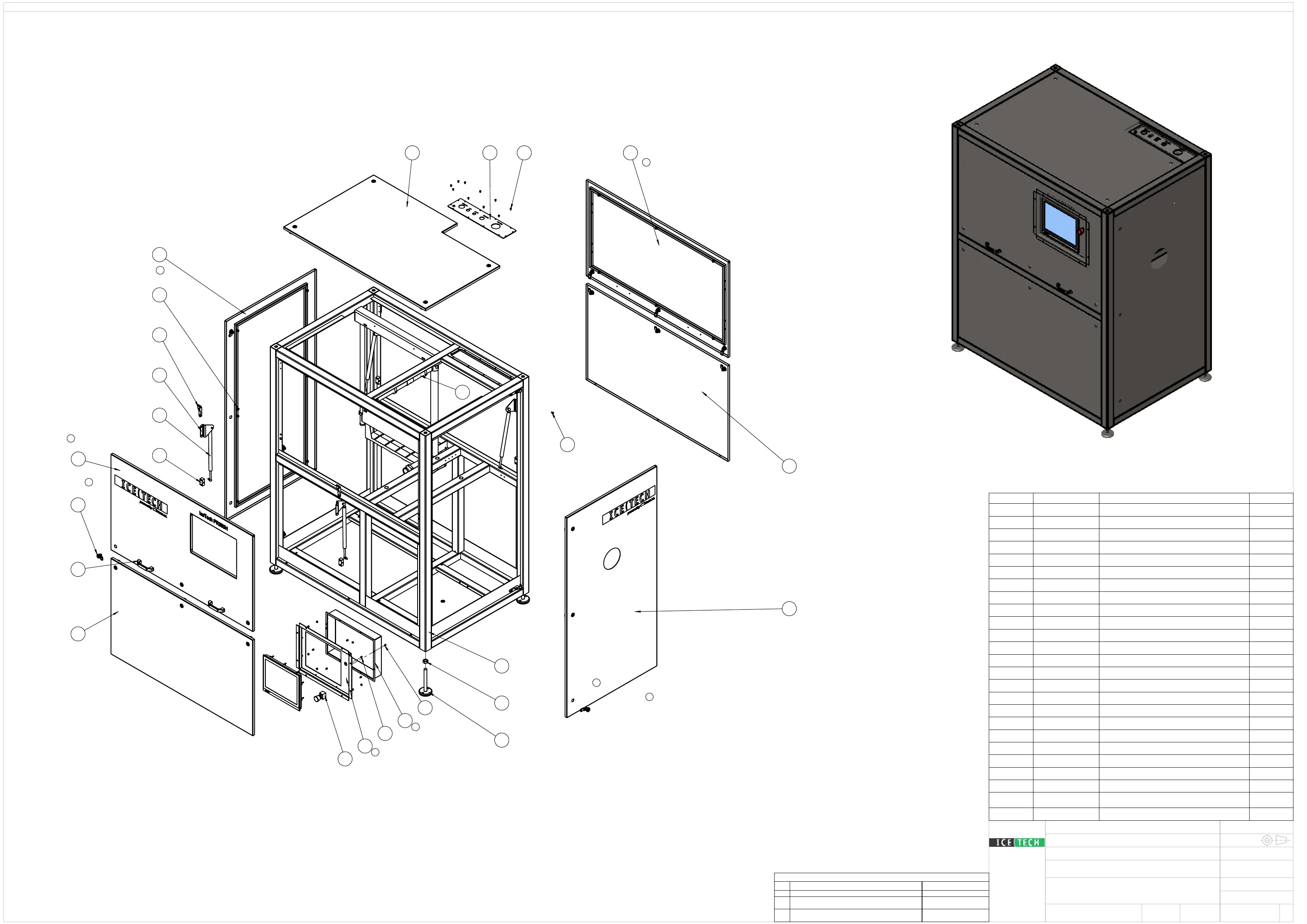

1 510168
Frame assembly, PR350H
1
2 105019
Hinge, door
8
3 510101
Front panel, bottom, PR350H / 750H, V5
2
4 502942
Back plate, the top, PR350/750
1
5 510105
Cabinet sheet top PR350
1
6 512019
Front panel, top, PR350H/750H
1
7 510107
Cabinet sheet, side, PR350
1
8 510108
Cabinet sheet, side, PR350
1
9 500271
Foot KJ90-20-180
4
10 81368
Hexagon nut, DIN 934, M20, A2
4
11 70010
ISO 7380 M6x10 A2, button head
8
12 70009
Lock nut, M6, A2
8
13 70057
DIN 912 M6x10 A2
1
14 501569
Connection plate.
1
15 501565
Cable components, PR350H
1
16 94053
Emergency stop button
1
17 511997
Box for panel
1
18 511995
Console for panel
1
19 93366
Handle M6 x145
4
20 105025
Tongue lock
22
21 105024
Frame fitting for gas cylinder
4
22 105022
Gasdamper
4
23 104007
Bracket for gasdamper
4
24 81304
Button head, ISO 7380, M8 x 12, A2
8
25 70010
Screw, ISO 7380, M6 x 10, A2
12
