IceTech PR350H - Page 121

17
18
6
20
16
5
19
1
17
415
14
12
18
2
23
8
13
3
21
11
10
9
15
14
22
7
7
502760
Option
503090
REVISIONS
REV. DESCRIPTION DATE
A
ITEM NO. PART NUMBER Description QTY.
1 501320 Center plate 1
2 510461 Tension Rod, PR350/750H 4
3 510462 Spacer bush 4
4 510097 Extruder mount, right 1
5 510098 Extruder mount, left 1
6 501416 Extruder cylinder, complete, PR350H/750H 1
7 502275 Cpl. bracket and outlet sprout, PR350H/PR750H 1
8 510504 Cylindrical adapter 1
9 501186 Straight Connector Ø 8, 1/8 1
10 200533 Union, Ø14 x ½" 1
11 200531 Angle, Ø 14 x ½" 2
12 503389 Hydraulic cylinder extruder, Complete 1
13 510502 Die changer, PR350/750; V5 1
14 81369 Washer, DIN 125A, M20, A2 20
15 81368 Hexagon nut, DIN 934, M20, A2 10
16 500245 Bolt, M20 x 90, A2, DIN 931 4
17 81371 Washer, DIN 125A, M30, A2 8
18 510602 Nut, DIN 934, M30 x 2, A2 (fine pitch thread) 8
19 500081 Bolt, M20 x 065, DIN 931, A4 6
20 70044 Pin, DIN 7, 10 x 24, 2
21 81381 Hexagon socket screw, M10 x 35, A2 16
22 503395
Balluff Linear transduser, BTL7-V50E-M0400-B-C003
for EtherCAT PR350H/PR750H extruder
1
23 510118 Extruder Piston Complete, PR350H/PR750H 1
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ICETECH A/S. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ICETECH A/S IS PROHIBITED.
510503
Article nr.:
9419
Copy from:
Industrivej 62
DK-6740 Bramming
TLF. +45 76561500
FAX. +45 76561509
www.icetechworld.com
Material:
P268-1-9862
1
Sheet no:
Projection:
A3
Creator:
Rev:
B
Date:
Scale:
Weight:
kg
1:10
Description:

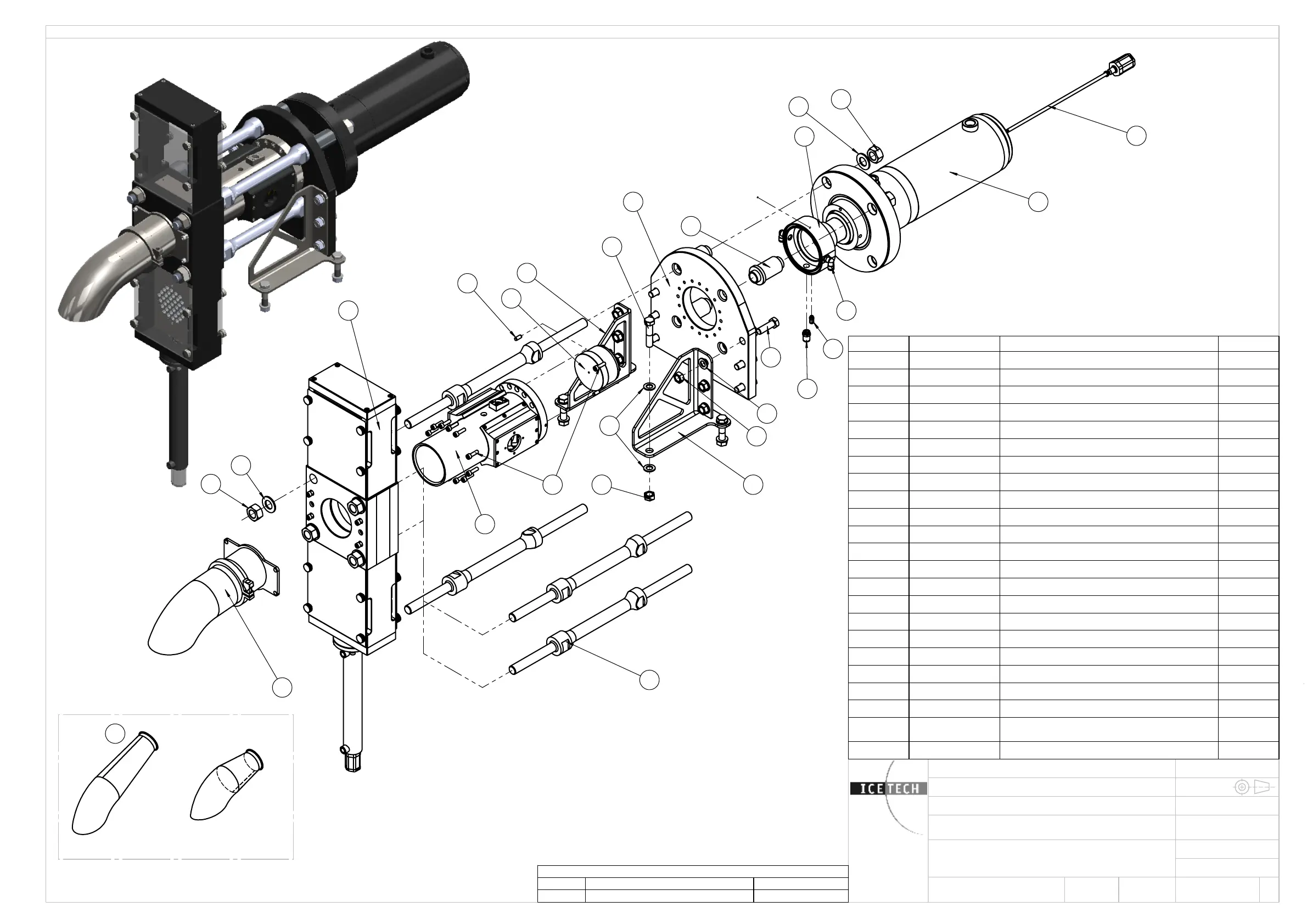

Extruder Unit, V5, PR350H/750H, compl.
Format:
lm
Drawing no.:
IceTech A/S
