20 23 5
18
26
8
23
1
15
7
6
2
1 16
24
9
25
1
27
3
10
4
21
11
22
17
19
1 21
13
12
145
Option:
502972
1 set of parts for heating set (a process unit)
It can be use only in CE version
REVISIONS
REV.
DESCRIPTION
DATE
D
listed parts from heating assembly
13.12.2016/lm
ITEM
NO.
PART
NUMBER
Description
QTY.
1 500238
Cylinder screw, DIN 912, M8 x 30, A2
22
2 501303
Top plate, die holder
1
3 501306
Mount for die cylinder
1
4 501307
Thrust plate, die cylinder
1
5 501309
Spacer, die holder
2
6 501324
Upper screen, die holder
2
7 501330
Lower screen, die holder
2
8 501550
Holder for extruder plate
1
9 501551
Adapter for die cylinder, Ø 50
1
10 501552
Spacer for cylinder, Ø 50, PR350H/750H
1
11 501554
Oil Seal, Ø30/Ø40/7
1
12 502698
Hydraulic cylinder, matrice H2C-P-50/30-300-FG
1
13 510088
Balluff Linear transduser, BTL7-V50E-M0300-B-C003 for EtherCAT
PR350H/PR750H extruder plate/SL1000H
1
14 510089
Rear flange for die holder
1
15 510090
Legs, die cylinder
4
16 510093
Front flange for die holder
1
17 510094
Wearing insert 2, die change
1
18 510095
Wearing insert 1, die change
1
19 510600
Knob BM.193/28 SST-p-M8x16; 503571
16
20 510601
DIN 912 M10x30; 30C
2
21 70002
Screw, M5 x 12, A2
14
22 70018
Washer DIN 125A Ø10,5 A2
4
23 70039
Screw, DIN 912, M 6 x 30, A2
5
24 70044
Cylinderstift, DIN 7, 10 x 24, A2
8
25 81317
Washer, DIN 125A Ø8,4 A2
4
26 81381
Hexagon socket screw, M10 x 35, A2
2
27 91009
Check nut, Ice Gun / nozzle
1
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ICETECH A/S. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ICETECH A/S IS PROHIBITED.
D
510502
Article nr.:
7100
Copy from:
Industrivej 62
DK-6740 Bramming
TLF. +45 76561500
FAX. +45 76561509
www.icetechworld.com
Material:
P268-1-9868
1
Sheet no:
Projection:
A2
Creator:
Rev:
Date:
Scale:
Weight:
kg
1:6
Description:

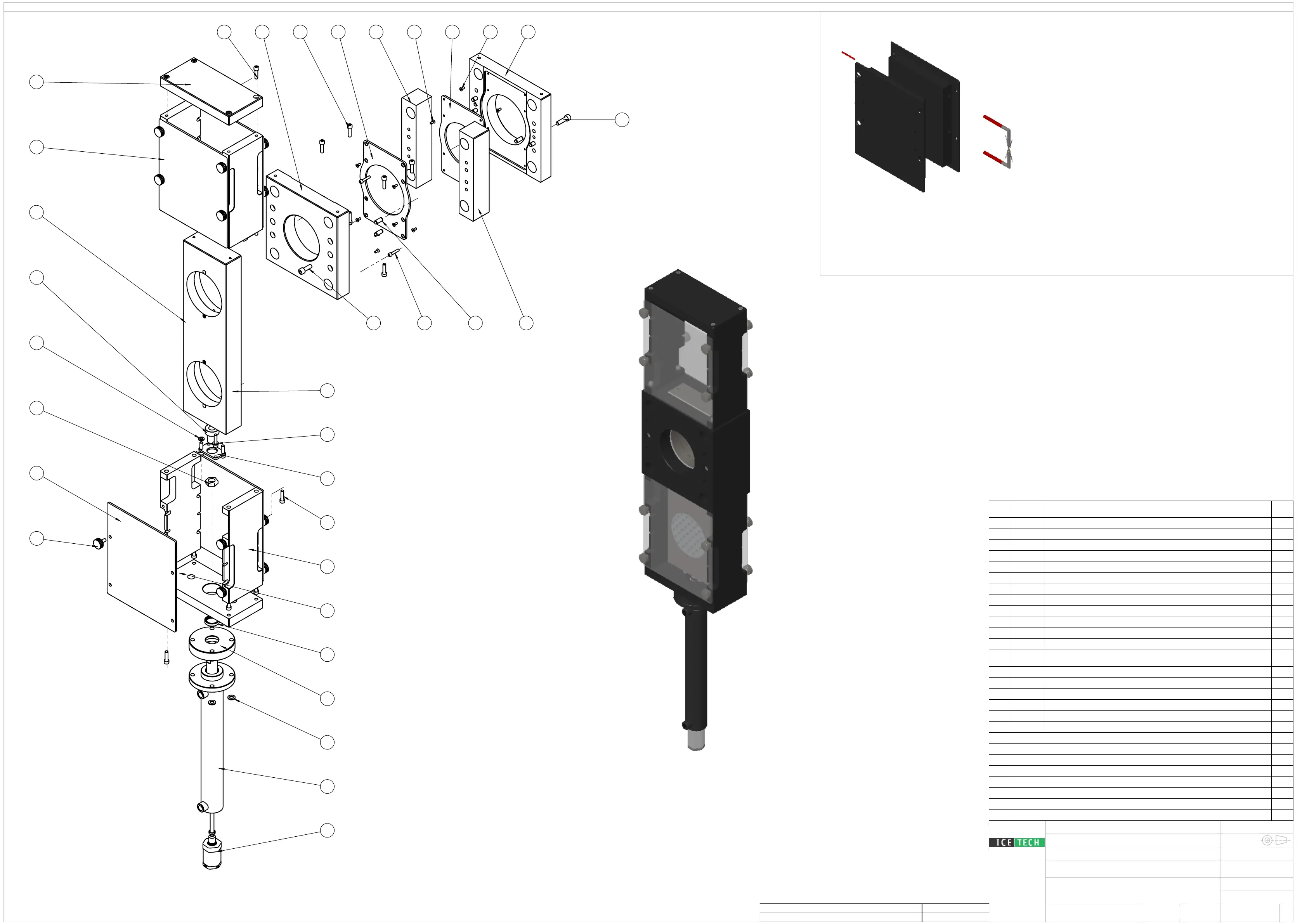

Die changer, PR350/750; V5
Format:
lm
Drawing no.:
IceTech A/S
03-04-14
