IceTech PR350H - Page 123

6
7
4
3
2
1
12
5
8
6
11
9
6
10
B
B
REVISIONS
REV. DESCRIPTION DATE
A
B Pos. 11 and 12, has been changed. 18-05-2011 PJ
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 501420 Gasket f. filter, PR600H 2
2 501323 Filterelement, 40 my 2
3 501419 Gasket f. degas. box, PR600H 2
4 501322 Degassing Box, PR750H 2
5 501319 Injection Block, PR600H 1
6 81310 DIN 912 M6x16 A2 22
7 500714 DIN 912 M6x35 A2 4
8 70059 Hexagon socket head M6x20 DIN 912 A2 2
9 501418 Gasket f. extr. cylinder, PR600H 1
10 501525 Plate for degassing box 2
11 501302 Flange f. extr. cylinder. 1
12 501299 Extruder Cylinder. 1
06-10-09
ICETECH A/S
Drawing no.:
jm
Format:

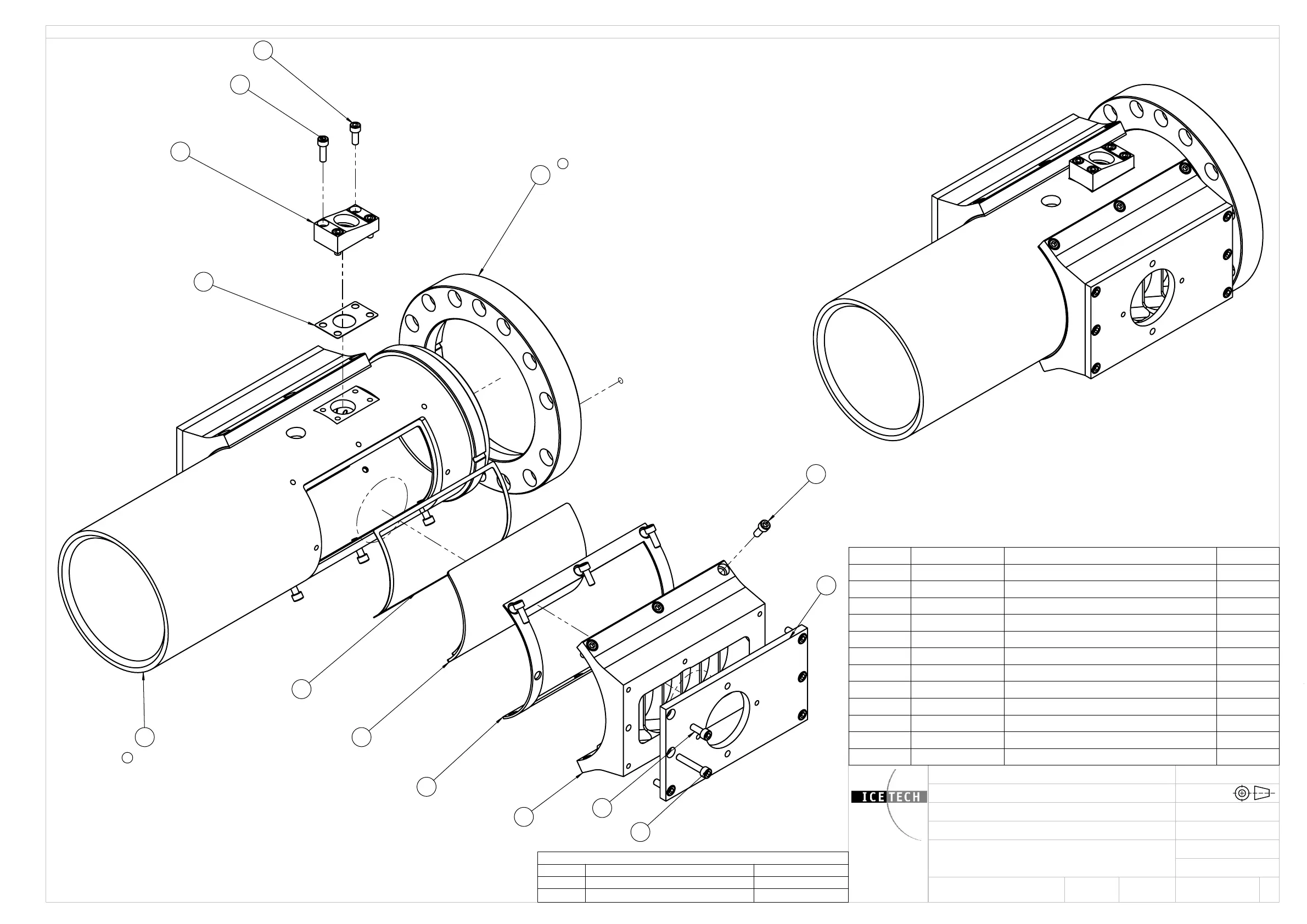

Extr. Cylinder Assembly, PR750H
Description:
1:3
kg
Weight:
Scale:
Date:
B
Rev:
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ICETECH A/S. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ICETECH A/S IS PROHIBITED.
Creator:
A3
Projection:
Sheet no:
1
501416
P268-1-7896
Industrivej 37
DK-6740 Bramming
TLF. +45 76561500
FAX. +45 76561509
www.icetech.dk
