IceTech PR350H - Page 124

1
2
4
3
5
6
7
REVISIONS
REV. DESCRIPTION DATE IN ITIALS
A
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 503029 Extruder Piston front part 1
2 501543 Extruder Piston rear part 1
3 70013 DIN 912 M8x16 A2 10
4 81043 Lock washer M8 10
5 501310 Thrust Ring f. Extr. Piston, PR600H 2
6 81394 Lock washer M6 10
7 70035 Set screw, DIN 933, M8 x 25, A2 10
14-01-14
ICETECH A/S
Drawing no.:
jm
Format:

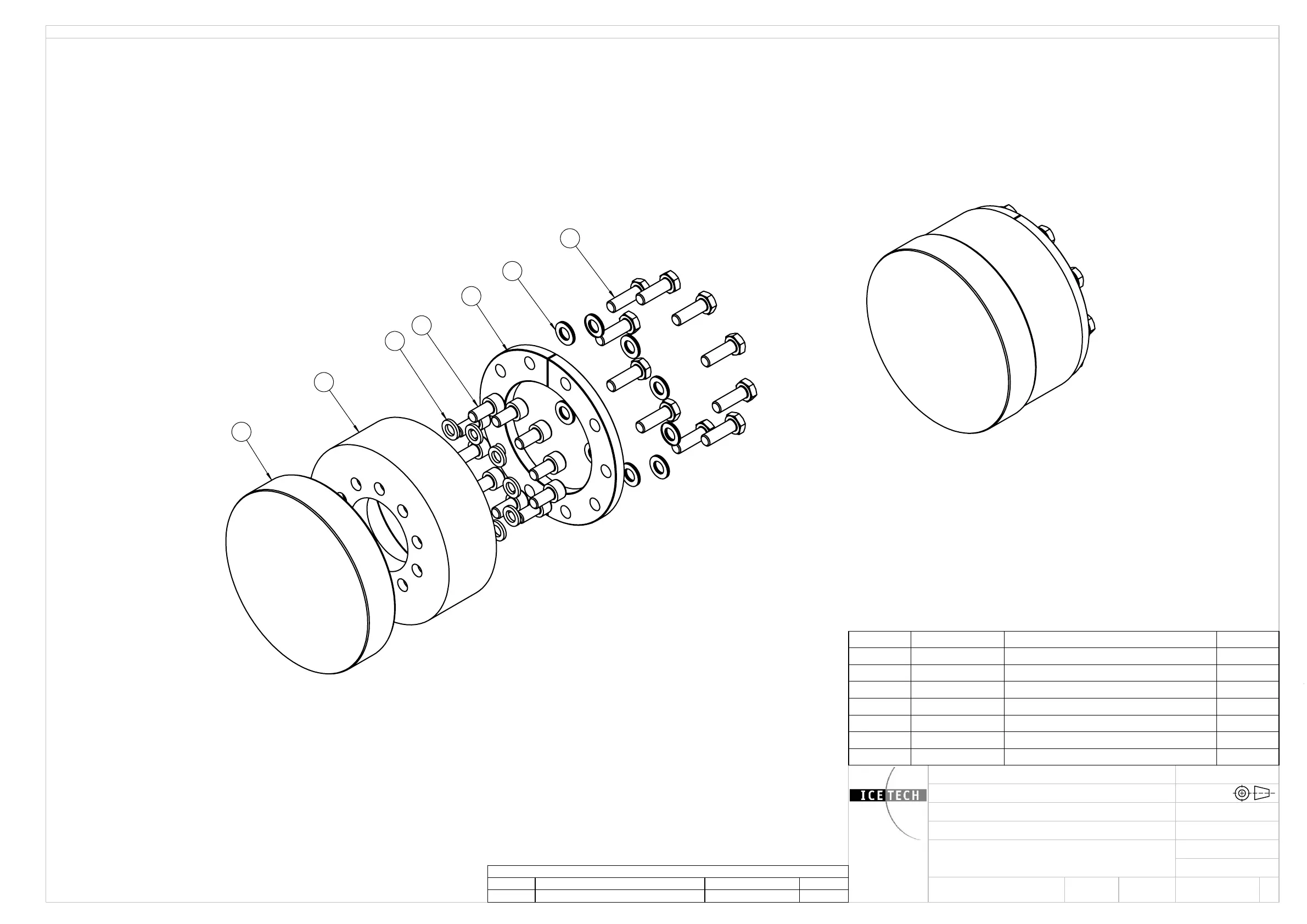

Extruder Piston Complete, PR350H/PR750H
Description:
1:2
Weight:
Scale:
Date:
A
Rev:
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ICETECH A/S. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ICETECH A/S IS PROHIBITED.
Creator:
A3
Projection:
Sheet no:
1
510118
P268-1-9701
Industrivej 37
DK-6740 Bramming
TLF. +45 76561500
FAX. +45 76561509
www.icetech.dk
Material:
