10
28
8
20
3
9
33
25
19
19
32
5
29 21
16
26
4
22
23
7
17
30
18
6
11
2
14
15
12
37
27
13
30
34
1
24
31
35
Option
103005-1
101016
501776
Option
501881
3627
6
5
26
19
16
28
15 14
18
17
11
34
15
20 16 3 9
33
35
16
23
22
37
ITEM NO.
PART NUMBER
Description
QTY.
1 96048
Tredoring, G3/4
1
2 96064
Nipple, G1/4-G1/4
1
3 100083
Threaded fittings, 3/4", PR350H/750H
1
4 101052
Filter for dirt collector, CO2, 100 My
1
5 103024
Temperature sensor
2
6 200509
Manometer, 50 mm, 0-10 bar, 1/4"
1
7 200537
Pipe threads, 1/2"
1
8 500408
Pressure switch, PMP131-0-40 bar-4-20mA
1
9 500689
Nipple, G3/4-G3/4 AISI
1
10 500941
Nippel 3/4"- 1/2" BSP-BSP
1
11 500943
Nippel Socket 1/2"-1/4" BSP-BSP
1
12 501061
Female T 1/4" - 1/4"
1
13 501439
Pressure transducer PMP131-0-10bar-4-
20mA
1
14 501597
Solenoid valve, EVR 3, 3/8", flare connection
1
15 501781
Nippel, 3/8" flare-1/2" BSP
2
16 501782
Hanger Ø19 3/4"
12
17 501784
Union muff/nipple 1/2"
1
18 501785
T-piece, 1/2"
1
19 501788
CO2 in, pipe 4
1
20 501796
Bracket for pipes, CO2 in
1
21 501797
Spacing bracket for CO2 in pipes
1
22 501802
CO2 in, hose 3, 650 mm, PR350H/750H
1
23 501803
CO2 in, hose 4
1
24 501831
Flare Circulation NS4-12 - 3/4
2
25 501833
Elbow, 3/4", flare x 3/4" flare E2-12 male/male
1
26 501838
Filter housing, Danfoss
1
27 501845
CO2 in, hose 1, PR350H
1
28 501846
CO2 in, hose 2, PR350H
1
29 501850
Nipple 3/4" flare x 3/4" NPT U1-12E
1
30 502433
Niplle piper, 3/4", B25-5-170
1
31 502434
Nipple, 3/4"-1/2" B29-5
1
32 502780
High pressure adaptors, 3/4", BSPP/BSPT
1
33 502415
Ballvalve, 3/4", single pneu. actuator and coil
valve.
1
34 502456
Ball valve, 1/2", 30° V-ball, double acting.
pneu. actuator and coil valve, SL1000H
1
35 513548
CO2 in, rør 3 V2.PR350H
1
36 513550
CO2 in, rør 2 V2,PR350H
1
37 103005
Coil for EVR 3 and 15 valve
1
REVISIONS
REV.
DESCRIPTION
DATE
IN ITIALS
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ICETECH A/S. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ICETECH A/S IS PROHIBITED.
A
513581
Article nr.:
9844
Copy from:
Industrivej 62
DK-6740 Bramming
TLF. +45 76561500
FAX. +45 76561509
www.icetechworld.com
Material:
P287-1-18317
1
Sheet no:
Projection:
A2
Creator:
Rev:
Date:
Scale:
Weight:
kg
1:5
Description:

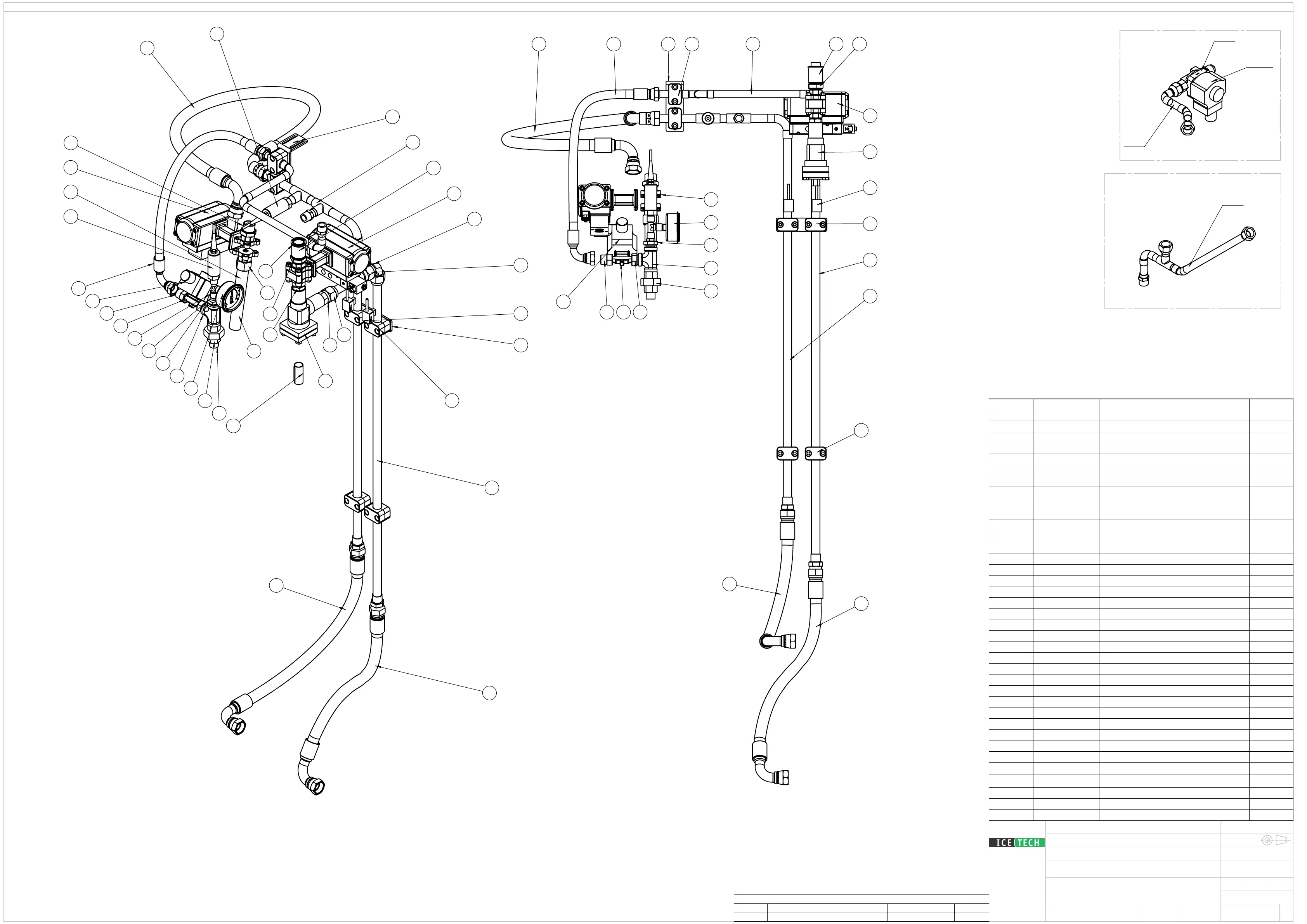

CO2 IN - PR350H UL - 24VDC
Format:
lm
Drawing no.:
IceTech A/S
24-03-14
