IceTech PR350H - Page 126

5
2
3
10
4
7
6
1
8
9
13
13
12
11
REVISIONS
REV. DESCRIPTION DATE
A

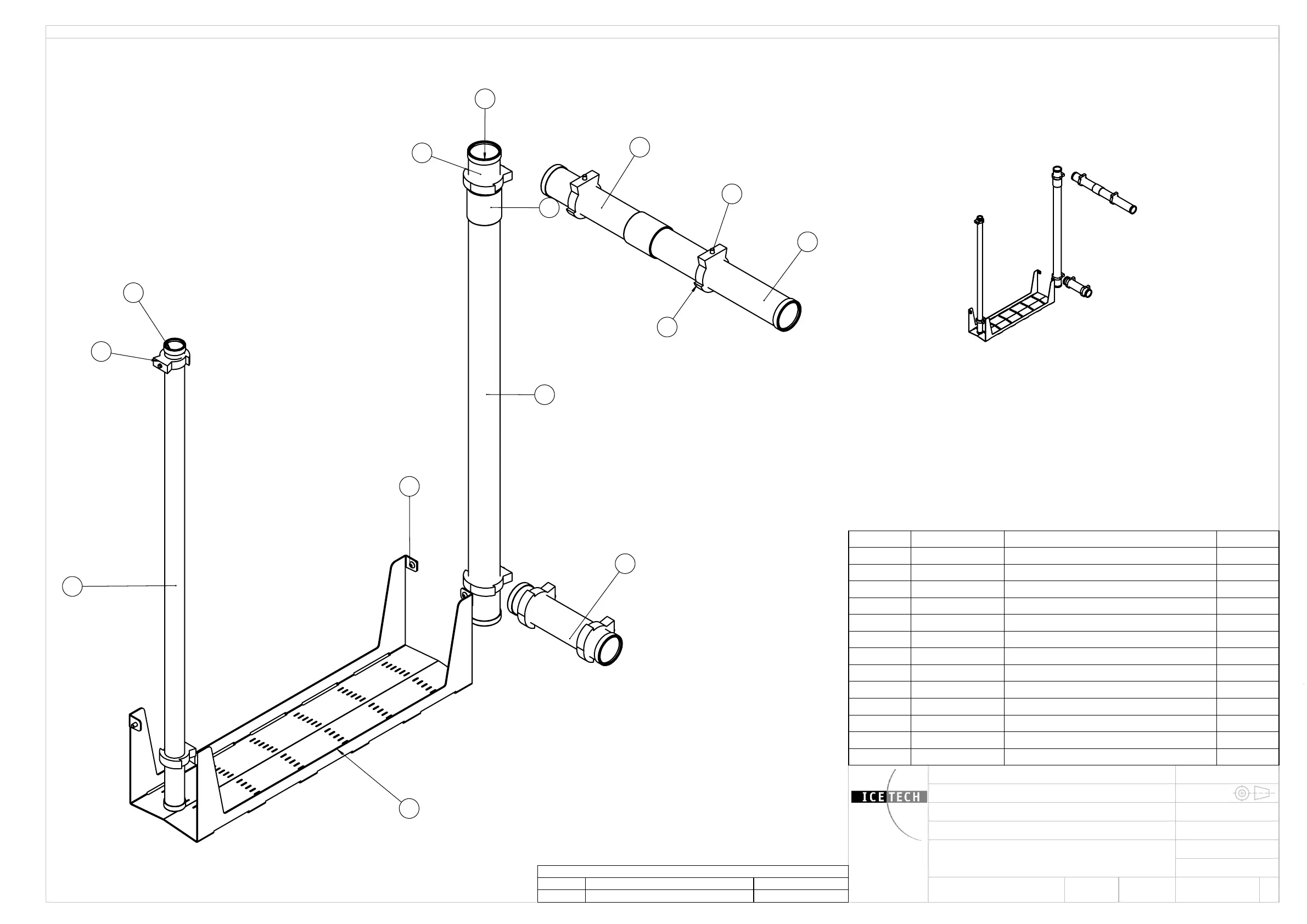

ITEM NO. PART NUMBER DESCRIPTION QTY.
1 501433 Cable tray 1
2 500606 Pipe connector w. Hole Ø51 2
3 500595 Open pipe clip Ø50 6
4 501764 Rør, Ø51 x 1,2, L=300 1
5 500597 Sleeve for pipe Ø51 6
6 501760 Pipe Ø32x1,5 L=900 1
7 500596 Sleeve for pipe Ø32 2
8 500292 Open pipe clip Ø32 2
9 70010 ISO 7380 M6x10 A2, button head 4
10 70028 Undersænket skrue, DIN 7991, M6 x 20, A2 8
11 501762 Rør, Ø51 x 1,2, L=80 1
12 501769 Rør, Ø51 x 1,2, L=800 1
13 501951 Rør, Ø51 x 1,2, L=200 2
08-12-09
ICETECH A/S
Drawing no.:
jm
Format:
Kabelkomponenter, PR350H
Description:
1:5
kg
Weight:
Scale:
Date:
A
Rev:
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ICETECH A/S. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ICETECH A/S IS PROHIBITED.
Creator:
A3
Projection:
Sheet no:
1
501565
P287-1-7956
Industrivej 37
DK-6740 Bramming
TLF. +45 76561500
FAX. +45 76561509
www.icetech.dk
