12
18
11
24
16
4
27
19
2727 26
11
13
23
17
12
12
3
18
22
11
19
2
10
19
20
5
29
25
6
14
15
28
32
31
34
33
21
9 7 1
8
3029
16
16
REVISIONS
REV.
DESCRIPTION
DATE
IN ITIALS
B
General update
21.09.2016
LM
ITEM NO.
PART NUMBER
Description
QTY.
1 101221
Safety valve, 1/4", 27,6 bar
1
2 101223
Safety valve, 1/4", 1 bar
1
3 500260
Pressure transducer PMP131-0-4bar-4-20mA
1
4 500313
Gasket, EPDM, 63.5
2
5 500317
Nippel, 2" x 45 mm
1
6 500576
DIN 985 M12 A2
4
7 500940
Nippel, 1/2", 3/8", BSP-BSP AISI
1
8 500943
Nippel-Muffe, 1/2"-1/4", BSP-BSP, AISI
1
9 500952
Tredoring, G1/2"
1
10 501060
Female elbow 1/4"
1
11 501385
Checkvalve, 2"
2
12
501387-1
Exchanger welding ass.
1
13 501388
Hose, 85°C UNI M 9/L ID65mm
1
14 501399
Packing, pipe 6
2
15 501432
Bracket for heat exchanger
2
16 501434
Power clamps Ø60-70
2
17 501751
CO2 out, pipe 8, Ø 63.5, PR350/750
1
18 501752
CO2 out, pipe 9, Ø 63.5, PR350/750
1
19 501754
CO2 out, pipe 11, Ø 63.5, PR350/750
1
20 501772
CO2 Out - Pipe 12 - Ø63,5
1
21 501784
Union muff/nipple 1/2"
1
22 501808
Suspension no 2 for CO2 pipe, complete
1
23 501842
CO2 out, pipe 14, Ø 63.5, PR350
1
24 502034
CO2 out, pipe, Ø 63.5, PR350/750
1
25 510170
Mounting block
1
26 510506
CO2 out, pipe 7, Ø 63.5, PR350/750
1
27 510507
CO2 out, pipe 6, Ø 63.5, PR350/750
2
28 510513
Bracket for heat exchanger, PR750H
1
29 510697
Plug, G 1/2
2
30 513551
CO2 in, slange L=250 mm
1
31 70013
DIN 912 M8x16 A2
4
32 70015
Washer, DIN 125A, M8, A2
4
33 70018
Washer DIN 125A Ø10,5 A2
6
34 70030
DIN 912 M10x25 A2
6
35 96064
Nipple, G1/4-G1/4
1
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ICETECH A/S. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ICETECH A/S IS PROHIBITED.
B
510509
Article nr.:
Copy from:
Industrivej 62
DK-6740 Bramming
TLF. +45 76561500
FAX. +45 76561509
www.icetechworld.com
Material:
P287-1-11639
1
Sheet no:
Projection:
A2
Creator:
Rev:
Date:
Scale:
Weight:
kg
1:5
Description:

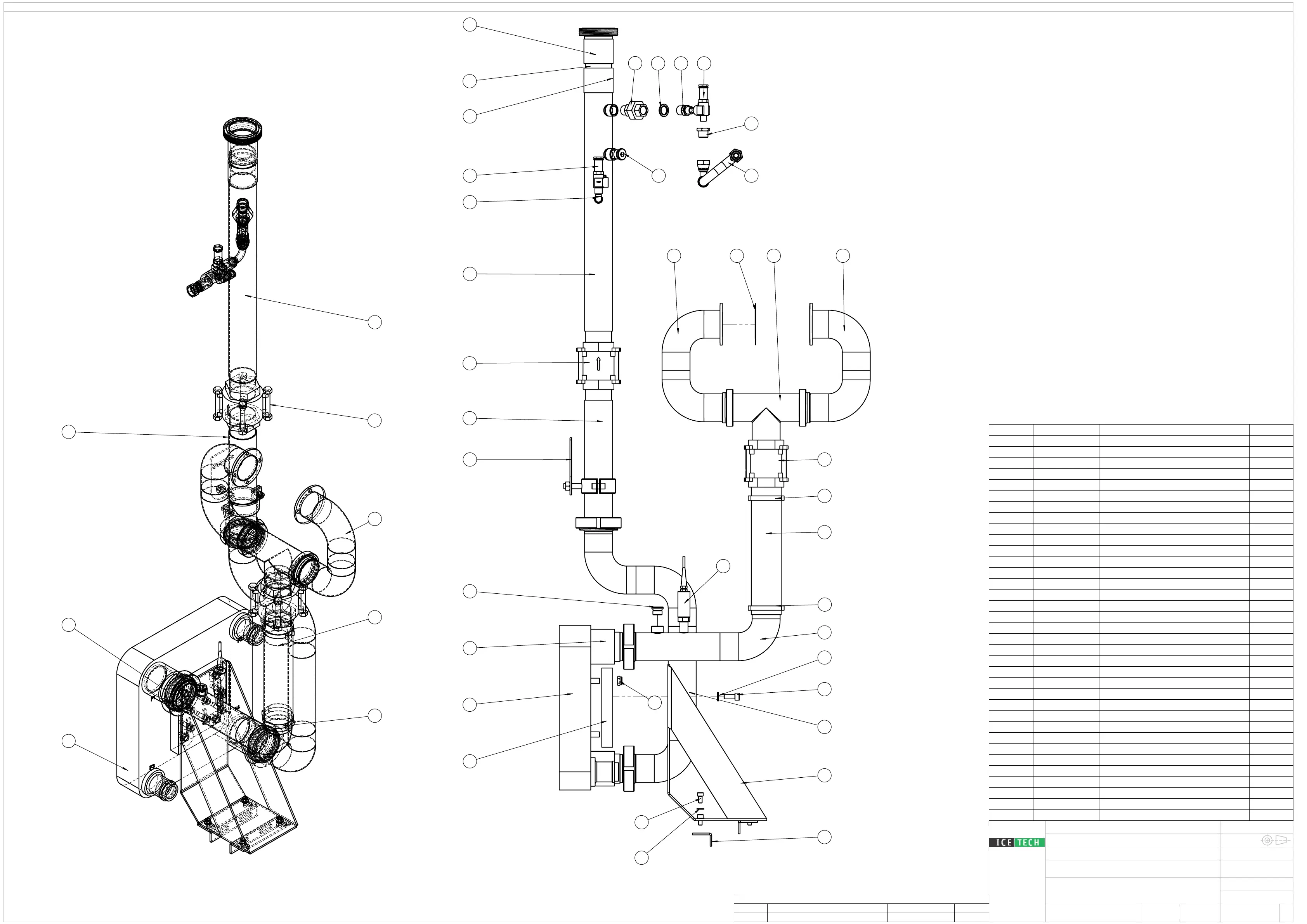

CO2 out - PR350H V2 complete
Format:
lm
Drawing no.:
IceTech A/S
18-06-14
To Next Page
