Procedures for maintenance and repair
www.icetechworld.com | IceTech Dry Ice Technology | Rev 1
Page 17
Procedure no. 5 Replacement of gaskets in Ø160 hydraulic cylinder.
Procedure for changing gaskets in hydraulic cylinders on
PR750H and PR350H
During this operation it’s important to activate the emergency stop button!
Important
For operators safety the hydraulic cylinder has to be disconnected from the hydraulic
system before dismounting.

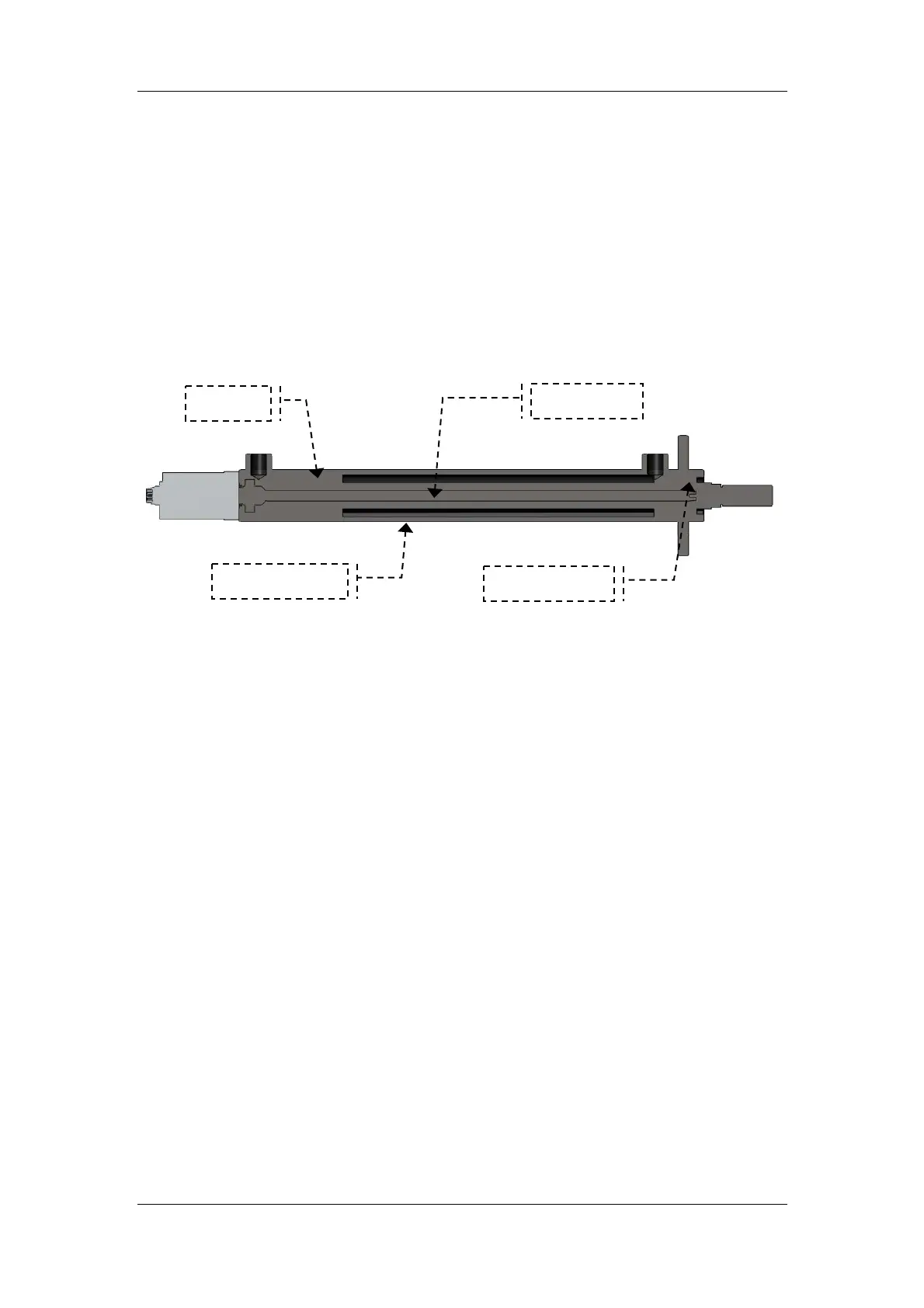

1.Piston
4.Pistonrod
3.Cylindertube
2.Cylindertop
