Procedures for maintenance and repair
www.icetechworld.com | IceTech Dry Ice Technology | Rev 1
Page 22

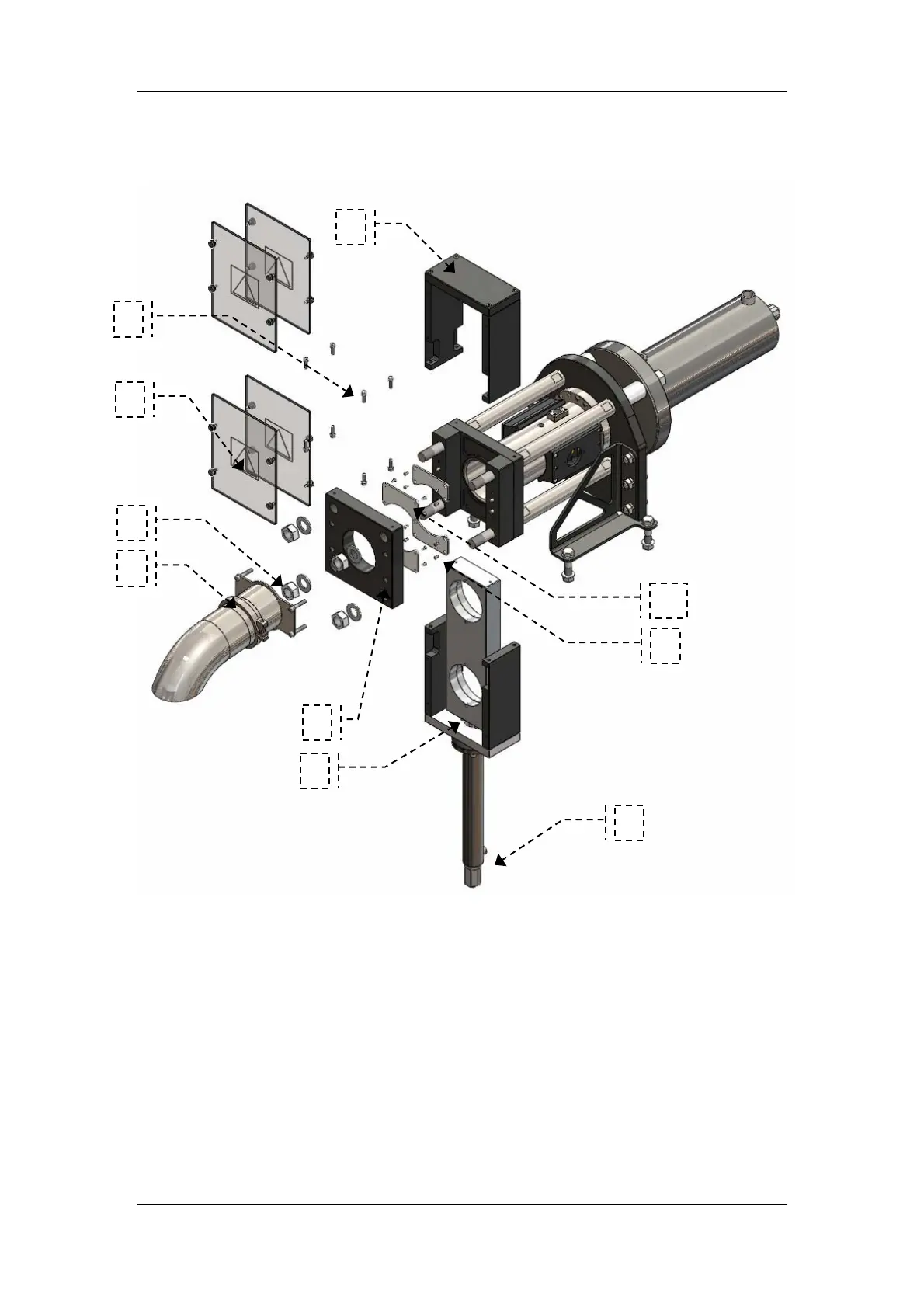

Procedure no. 6 Replacement of wear inserts in die changer.
Step (1) will be to disconnect the plug for Balluff transducer and the hydraulic hoses, plug
both hose connection and connections on the hydraulic cylinder, be very careful and protect
the Balluff connection against any damage.
Step (2) Dismount the outlet sprout.
Step (3) Take off the Plexiglas guard plates.
Step (4) Dismount the 4 screws here after step.
Step (5) pulls the die changer down and let it stand on the bottom plate of the machine.
Step (6) Take of the upper part of the die changer.
Step (7) Dismount the 4 M30 nuts.
Step (8) Pull the front plate of the M30 rods.
Step (9) and step (10) now the 8 screws which are holding the wear inserts can be
dismounted and the wear inserts can be changed.
Assemble the die changer again, going backwards in the procedure steps.
2
4
7
3
5
6
8
10
9
1
