Procedures for maintenance and repair
www.icetechworld.com | IceTech Dry Ice Technology | Rev 1
Page 29
Procedure no. 7 Replacement of Ø160 hydraulic cylinder.
The hydraulic cylinder

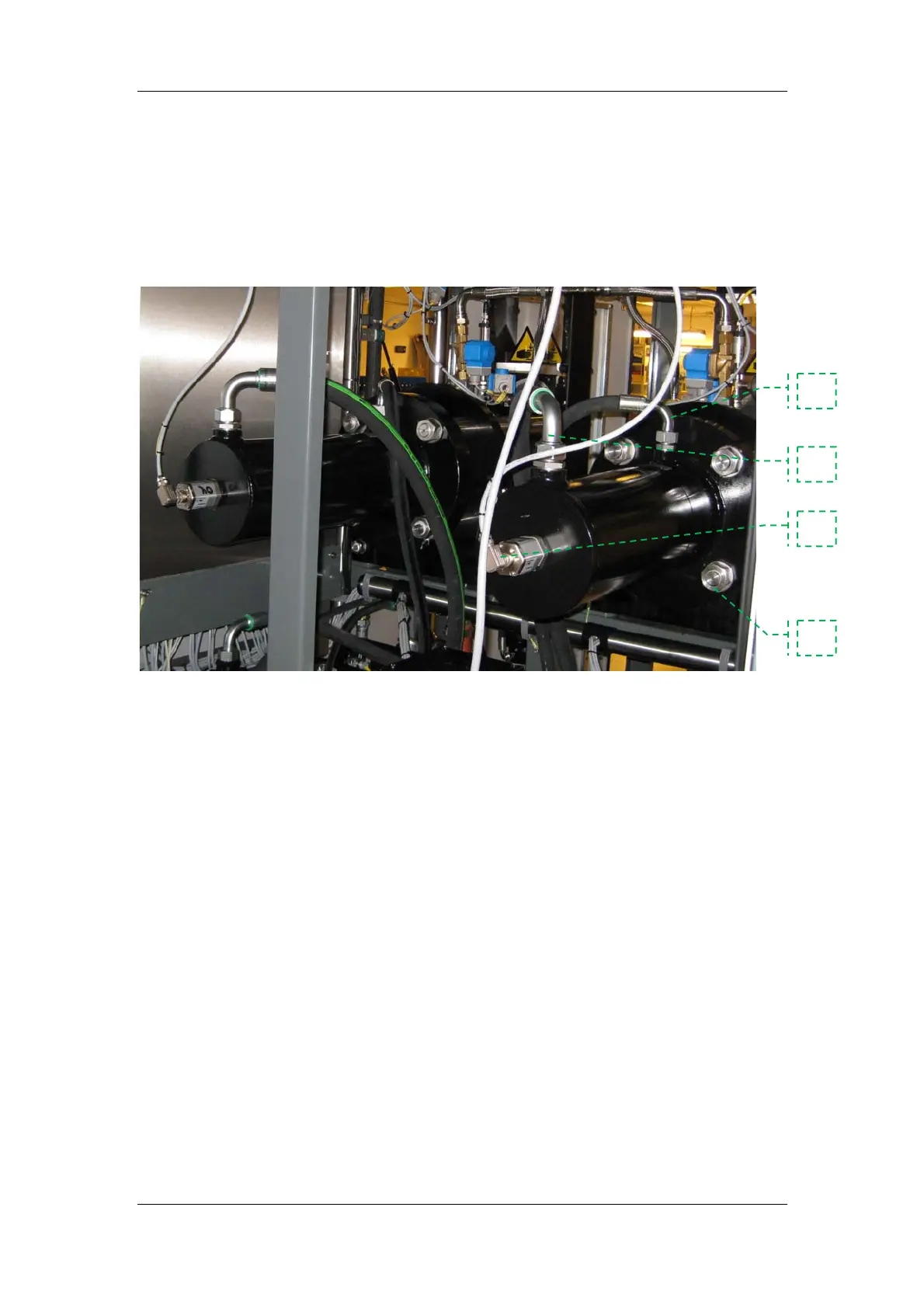

Support the hydraulic cylinder with a hoist or a forklift, and make sure that it’s possible to lift it
out of the machine frame. Remove and plug the hydraulic hoses [14]. The plug [15] on the
linear encoder is removed. The hydraulic cylinder is removed by loosening the 4 nuts [16].
MAKE SURE TO SUPPORT THE HYDRAULIC CYLINDER!
14
14
15
16
