Procedure no. 7 Replacement of Ø160 hydraulic cylinder.
Drive the piston forward approx. 200MM in single mode, see instructions regarding operation
in single mode below.

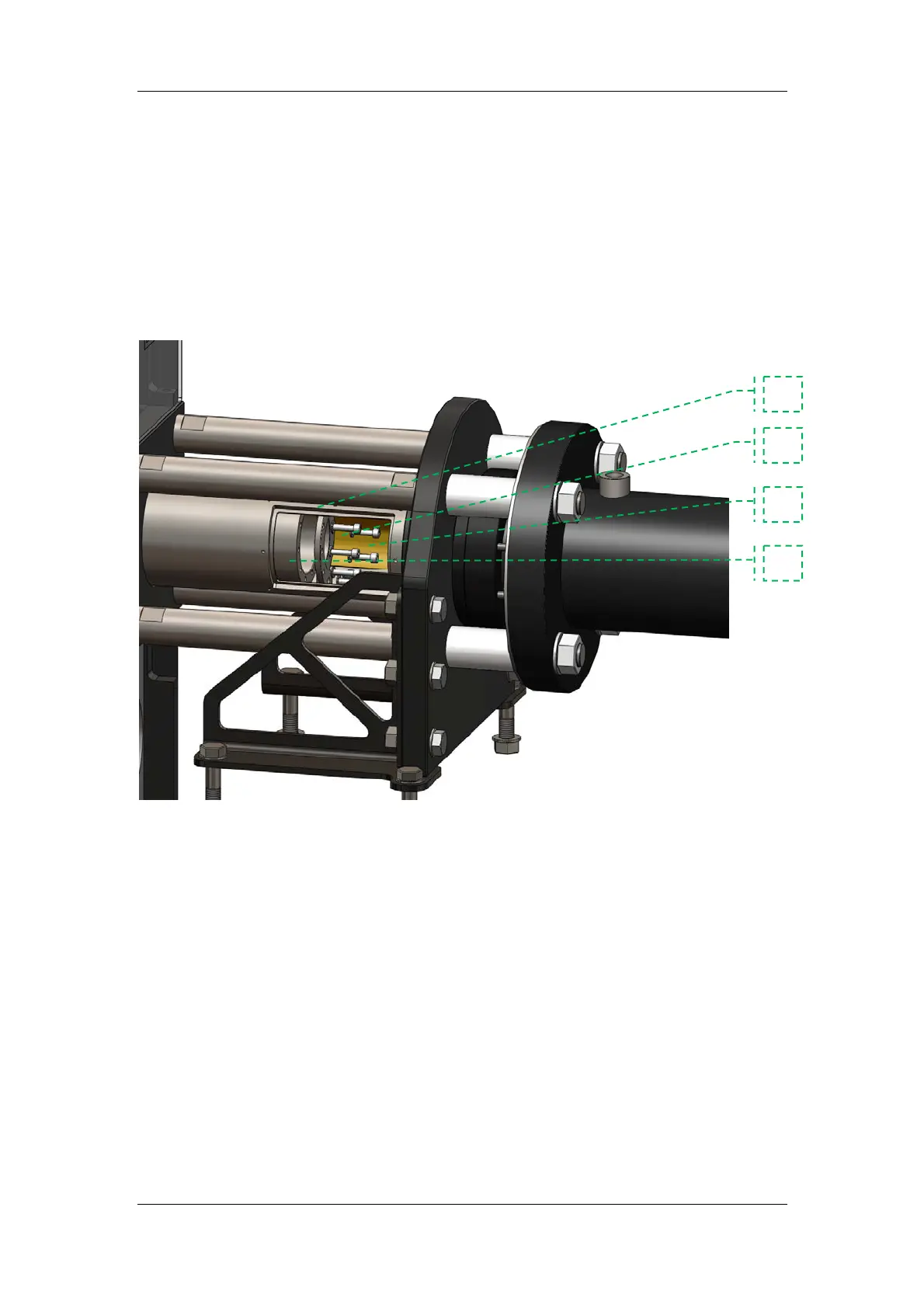

Loosen the 8 screws [11] and remove screws, washers [12] and brackets [10] for piston.
The piston [13] can now be driven out through the front of the barrel.
10
11
12
13
