Procedures for maintenance and repair
www.icetechworld.com | IceTech Dry Ice Technology | Rev 1
Page 27
Procedure no. 7 Replacement of Ø160 hydraulic cylinder.
The extruder piston

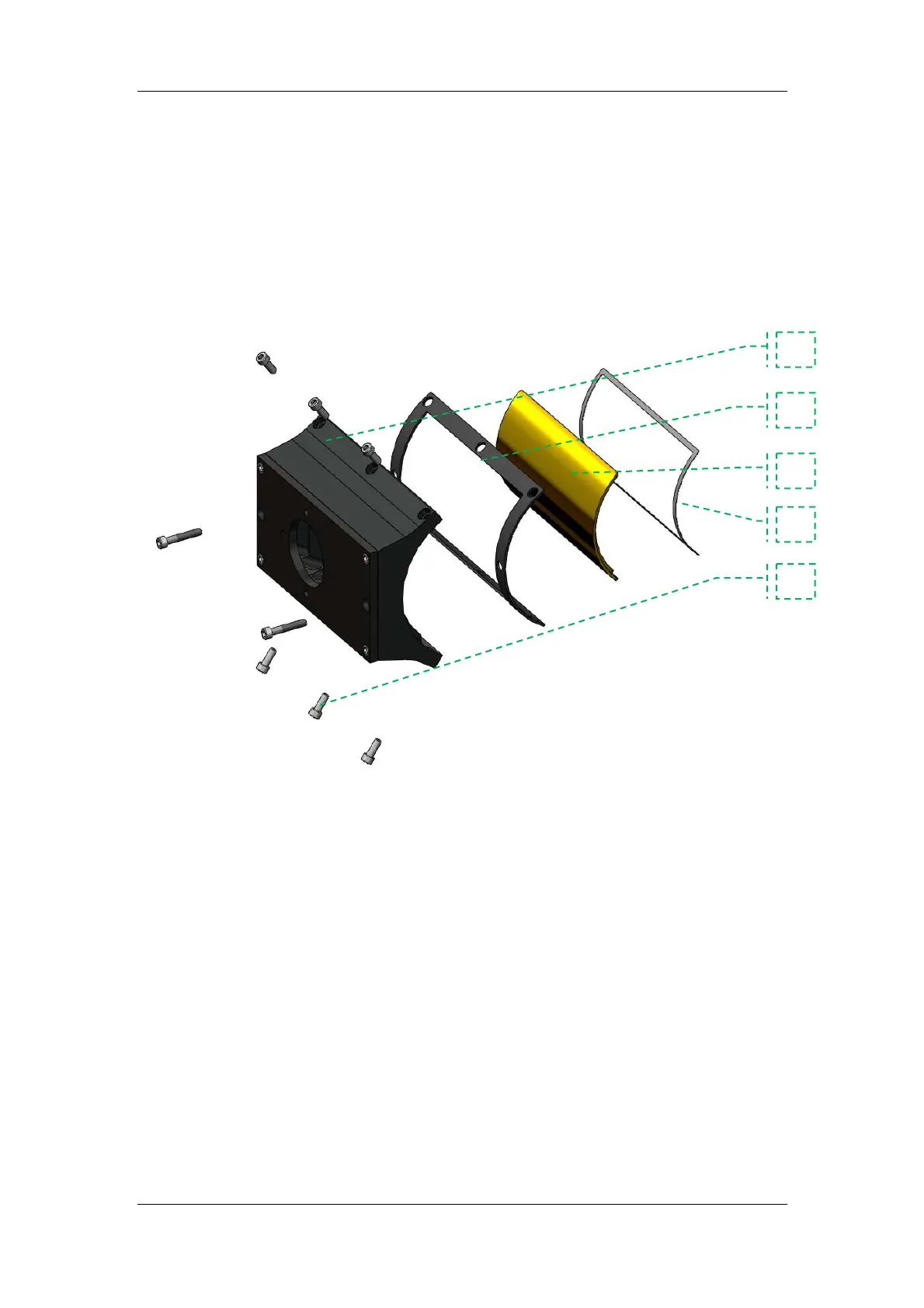

Remove the filter on one side of the extruder cylinder to gain access to the piston by
loosening the 8 pcs. screws [9] and pull the filter housing [5], rubber gasket [6],
filter [7] and filter gasket [8] out, and you have access inside the extruder chamber.
5
6
7
8
9
