Procedures for maintenance and repair
www.icetechworld.com | IceTech Dry Ice Technology | Rev 1
Page 37

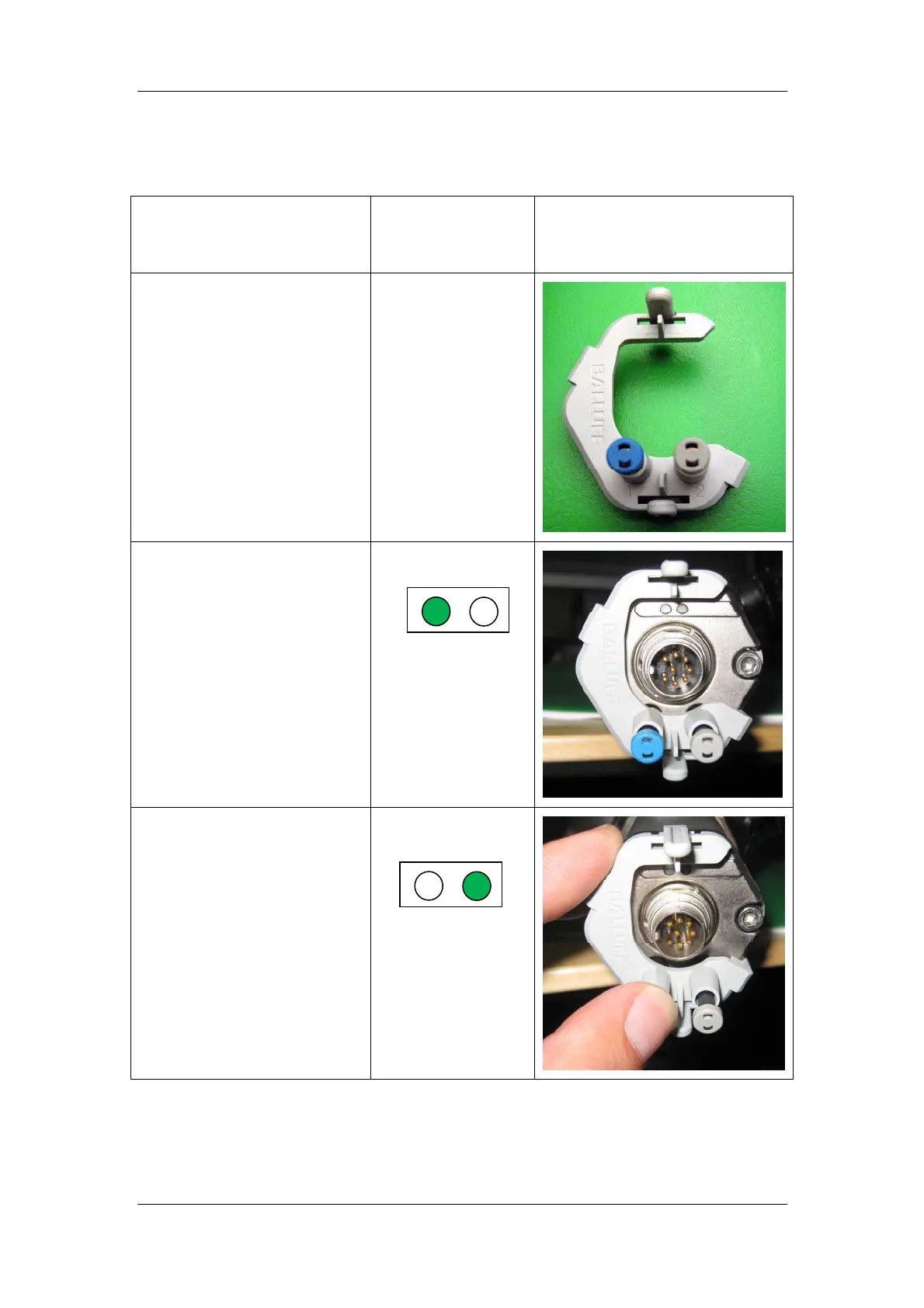

Procedure no. 9 Calibration of Ø160/Ø50 hydraulic cylinders.
Calibrations of Balluff transducer BTL7-E100-Mxxx-B-S32 using teach in mode.
Description of calibration step
by step
LED indicators
Picture of step
Calibration device
Button 1 is blue
Button 2 is gray
1. Activate buttons
Click on the calibration device
The left LED is green
1. Activate buttons
Press button 1 or 2 for at least 3
seconds
Release button
The right LED is green
