Procedures for maintenance and repair
www.icetechworld.com | IceTech Dry Ice Technology | Rev 1
Page 38

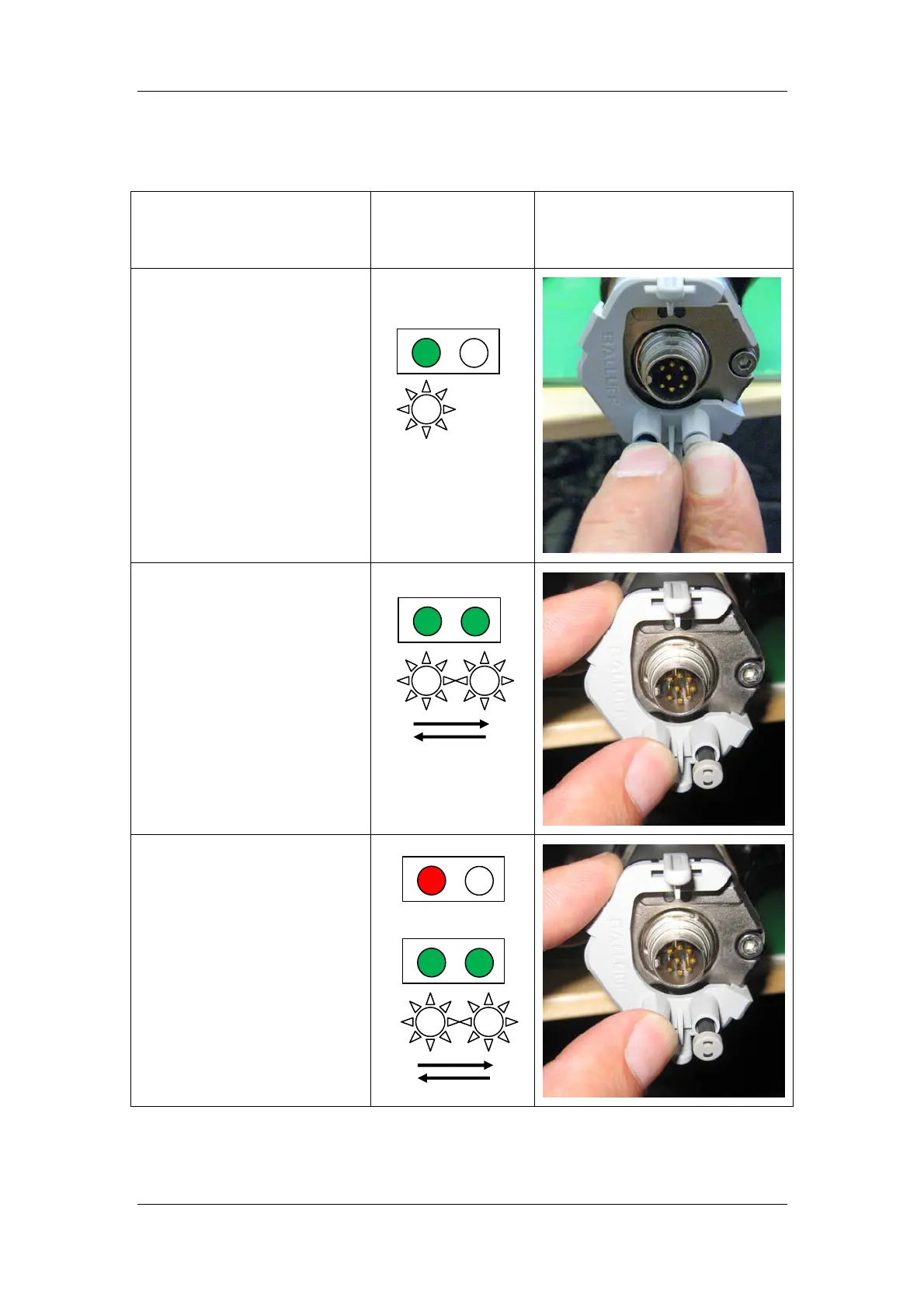

Procedure no. 9 Calibration of Ø160/Ø50 hydraulic cylinders.
Calibrations of Balluff transducer BTL7-E100-Mxxx-B-S32 using teach in mode.
Description of calibration step
by step
LED indicators
Picture of step
1. Activate buttons
Immediately after press both
buttons in, hold for at least 3
seconds
The left LED flashes green
2. Select teach in mode
Press button 1 for at least 2
seconds
Release button 1
Both LED flashes green in
alternation
3. Set null point
Bring the hydraulic cylinder
piston to new null point
Right LED is red and left
LED is off
Press button 1 for at least
2 seconds
Both LED flashes green in
alternation
