Procedures for maintenance and repair
www.icetechworld.com | IceTech Dry Ice Technology | Rev 1
Page 40
Procedure no. 9 Calibration of Ø160/Ø50 hydraulic cylinders.
Calibrations of Balluff transducer BTL7-E100-Mxxx-B-S32 using teach in mode.
Resetting all values (reset)
It can be necessary to reset the values if errors are preventing normal operation and a
calibration in teach in mode not is enough. The resetting will restore the factory settings and a
new calibration has to be carried out.

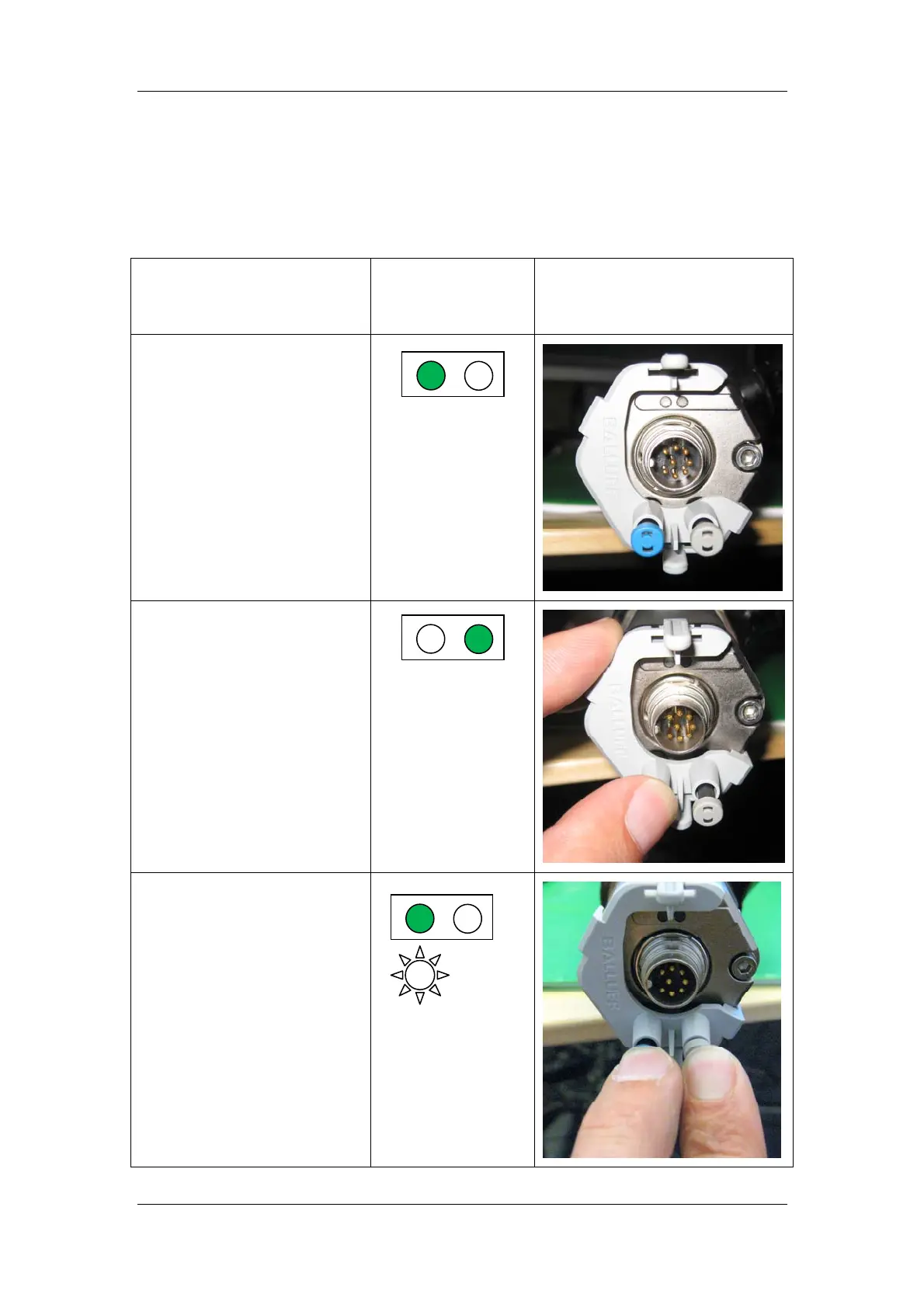

Description of calibration step
by step
LED indicators
Picture of step
6.1 Activate buttons
Click on the calibration device
The left LED is green
6.2 Activate buttons
Press button 1 or 2 for at least
3 seconds
Release button
The right LED is green
6.3 Activate buttons
Immediately after press both
buttons in, hold for at least
3 seconds
The left LED flashes green
