UNIT DESCRIPTION AND SPECIFICATIONS
2001 NEW
9

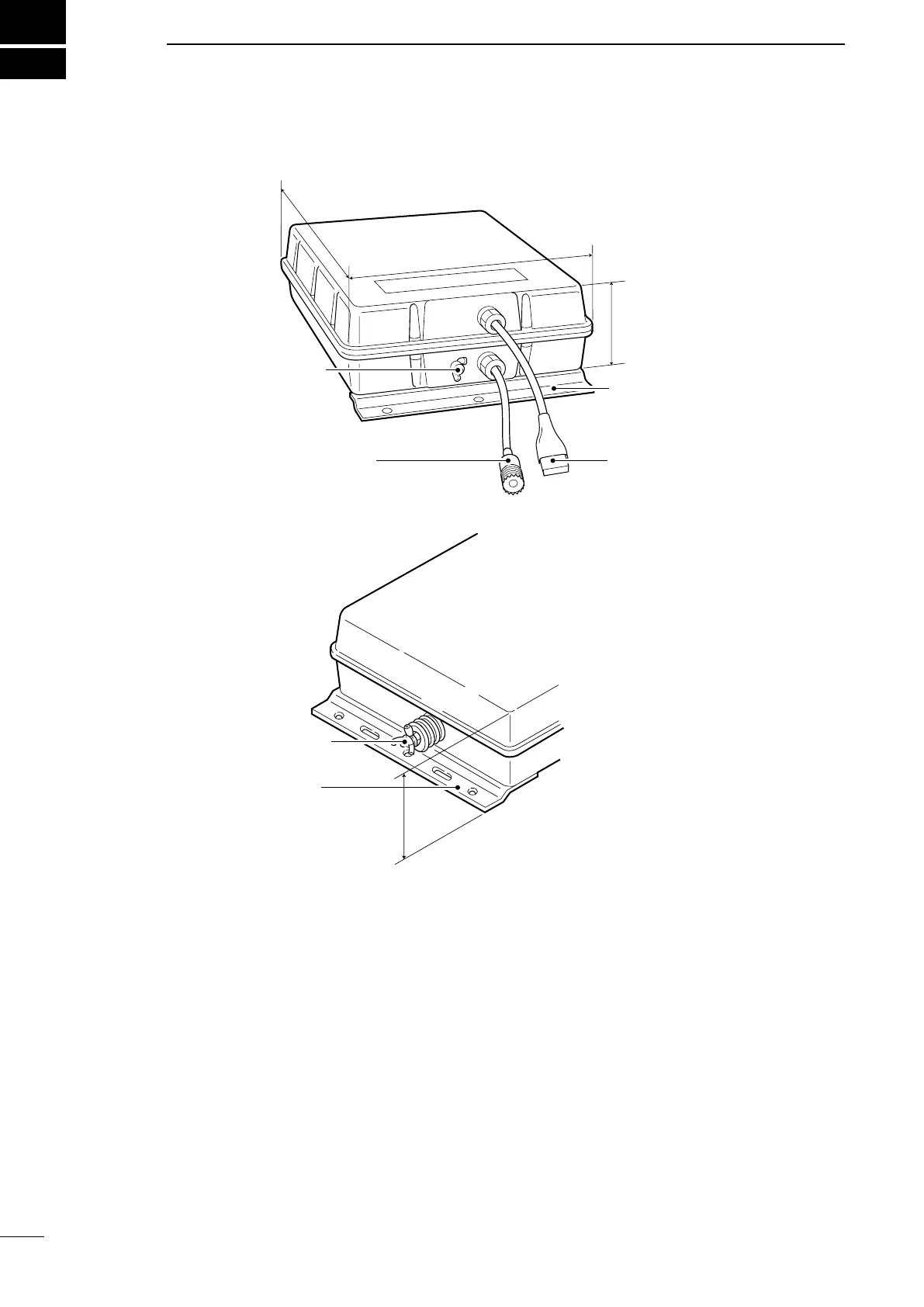

Antenna terminal
Mounting plate
Control cable connectorAntenna connector
Mounting plate
Ground terminal
340 mm
230 mm
80 mm
91.5 mm
Unit description ■
Specifications ■
Frequency coverage : 1.6–30 MHz (with 7 m or longer antenna element)•
Power supply requirement : 13.6 V DC (supplied from the HF transceiver)•
Current drain : Maximum 2 A•
Operating temperature range : –30• °C to +60°C
Weight (approximately) : 2.5 kg•
Antenna connector : SO-239 (50 • Ω)
Maximum Input power : 150 W (PEP) 100 W (continuous)•
Automatic tuning time : Approximately 2 to 3 seconds (general condition) Maximum 15 •
seconds
Approximately 1 second (retuning for a memorized frequency)
Automatic tuning accuracy : SWR 2.0:1 (after tuning, except for multiples of •
1
⁄2 λ)
Usable pole diameter : 32 to 60 mm•
All stated specifications are subject to change without notice or obligation.
