pin 6 (MIC)
pin 4 (PTT)
pin 7 (GND)
pin 2 (MICU/D)
pin 5 (MICE)
to the antenna connector

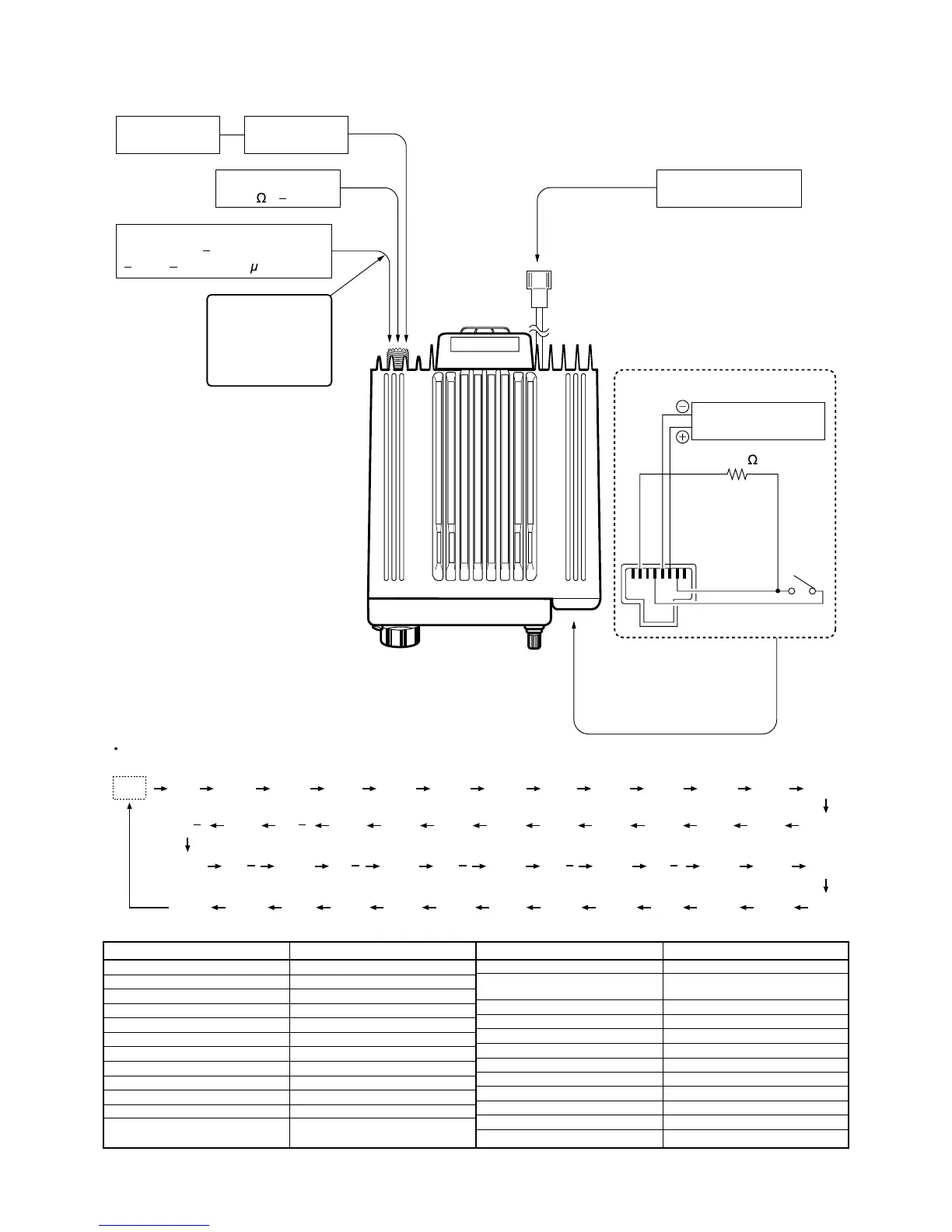

STANDARD SIGNAL GENERATOR
0.1 300 MHz
127 to 17 dBm (0.1 V to 32 mV)
RF POWER METER
50 , 1 80 W
FM DEVIATION
METER
ATTENUATOR
50 dB or 60 dB
POWER SUPPLY
13.8 V, 20 A or more
CAUTION!
DO NOT transmit
while an SSG is
connected to the
antenna connector.
JIG CABLE INFORMATION
to the microphone connector
2.2 k
AUDIO GENERATOR
300 Hz to 3 kHz
ADJUSTMENT ITEM EXPLANATION
[Fr]
*[Fr1]*[Fr2]*[Fr3]*[Fr4]*[Fr5]*[Fr6]*[Fr7]*[Fr8]
[rE]
*[rE+][HP ]
[PM]
*[PCV]*[PCU]*[FT]*[DTA]*[DTB]*[DT]*[SL] *[CT]*[DT]*[CT]
[PP]
*[PT]
[HP+] [MP+] [LP+] [HP+] [MP+] [LP+]
[POH]
Starting item
[POM] [POL] [POH] [POM] [POL] [PL] [PV] [DE] [DT] [Tr] [SL]
[SqW][SqN]
*[SqW]*[SqN]
*[rE ]
[LP ][MP ][HP ][LP ][MP ]
*Not adjust items
DISPLAY
[Fr]
[rF]
[POH], [POM], [POL]
[PL]
[PV]
[DE]
[DT]
[Tr]
[SL]
[SqW]
[SqN]
*[Fr1], *[Fr2], *[Fr3], *[Fr4],
*[Fr5], *[Fr6], *[Fr7], *[Fr8]
ADJUSTMENT ITEMS
Reference frequency
Reference voltage
VHF/UHF output power
Transmit minimum voltage
Protect voltage
Frequency deviation
DTCS wave form
Tracking
S-Meter
Squelch level (Wide)
Squelch level (Narrow)
Reference frequency’s
temperature correction
DISPLAY
*[rE–], *[rE+]
[HP–], [HP+], [MP–],
[MP+], [LP–],[MP+]
[PM]
[PP]
*[PT]
*[PCV], *[PCU]
*[FT]
*[DTA], *[DTB]
*[DT], *[CT]
*[SL]
*[SqW]
*[SqN]
ADJUSTMENT ITEMS
Reference voltage
Temperature correction
Protect scale
Protect power
Protect time
Protect temperature
Cooling fan temperature
DTCS wave form
DTCS/CTCSS amplitude
S-Meter
Squelch level (Wide)
Squelch level (Narrow)
